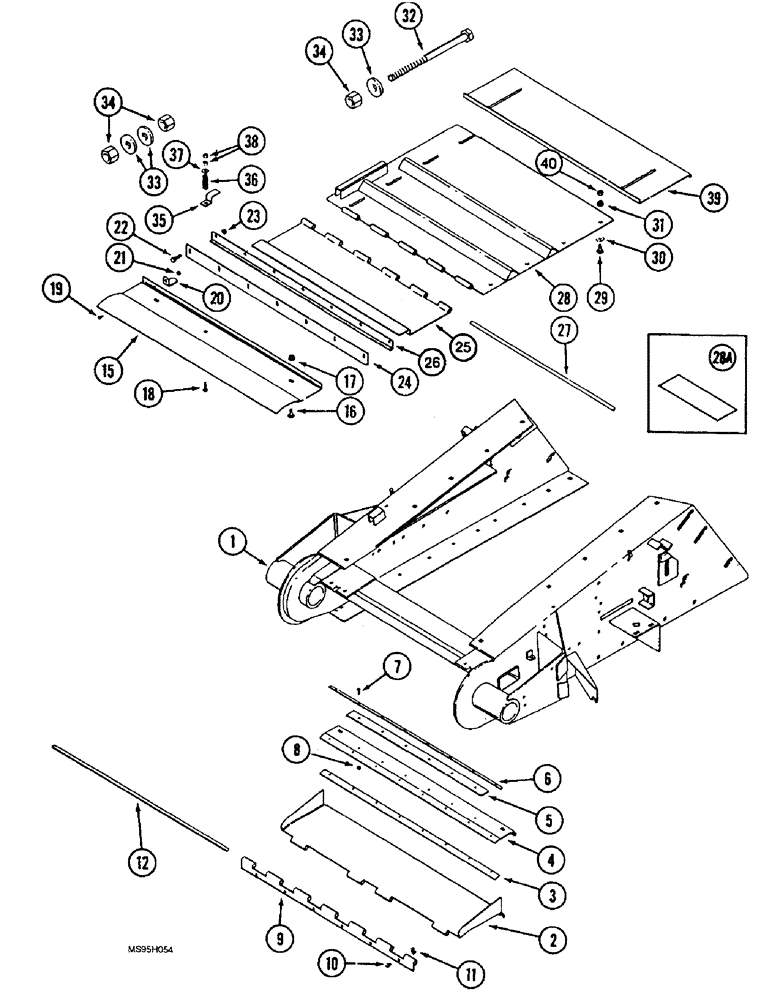

Запчасти Case IH 1666 (9A-32) - FEEDER, COVERS (13) - FEEDER

1

REF

INSTRUCTION

HOUSING feeder, see Fig. 9A-28 for correct assembly

1шт.

2

193362C2

DOOR

lower, bottom feeder

1шт.

3

1319963C1

SEAL

SEAL, feeder bottom support, rear

1шт.

4

1319961C1

SUPPORT

feeder, bottom, rear

1шт.

5

1319965C1

BAR

spacer, support

1шт.

6

197429C1

SEALING STRIP

SEAL door, strip

1шт.

7

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

machine, flat Phillips, No. 10 NC x 3/4 in.

6шт.

8

196922C1

LOCK NUT

hex, self locking, No. 10

6шт.

9

193364C2

HINGE

door, feed plate

1шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 in.

6шт.

11

231-5146

FLANGE NUT,3/8"-16

6шт.

12

159012C1

ROD

hinge, door

1шт.

15

197426C4

COVER

feeder, upper

1шт.

16

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 NC x 1 in.

2шт.

17

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 in. NC, grade 8

2шт.

18

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT carriage, 3/8 NC x 2-1/4 in., grade 2

1шт.

19

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

52шт.

20

1322144C1

ANGLE

door stop

2шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

22

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 in.

4шт.

23

231-5146

FLANGE NUT,3/8"-16

4шт.

24

634204R1

SEAL

fedder, top

1шт.

25

180555C91

DOOR ASSY.

feeder, upper, top

1шт.

26

197418C1

SUPPORT

ANGLE seal support

1шт.

27

175906C1

ROD

hinge, door

1шт.

28

1321431C1

PROTECTION PLATE

PANEL hinged, feeder top, 47 in. feeder

1шт.

28a

186354A1

SHEET

PANEL hinged, upper, 54-1/2 in. feeder, replaces 1321432C2

1шт.

29

415-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 8

BOLT carriage, 1/2 NC x 1-1/2 in., grade 8

8шт.

30

195-81030

WASHER

flat, 17/32 x 1-1/2 x 3/16 in.

8шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 in. NC, grade 8

8шт.

32

1321395C1

BOLT,3/4" - 10 x 440mm

adjusting, level

1шт.

33

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.

34

425-1012

NUT,3/4"-10, G5

3шт.

35

184645C1

CLIP

latch, door

1шт.

36

7422T

SPRING

latch, door

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

39

1321638C1

COVER

upper, front

1шт.

40

425-148

JAM NUT,Jam, 1/2"-13, G5

8шт.
