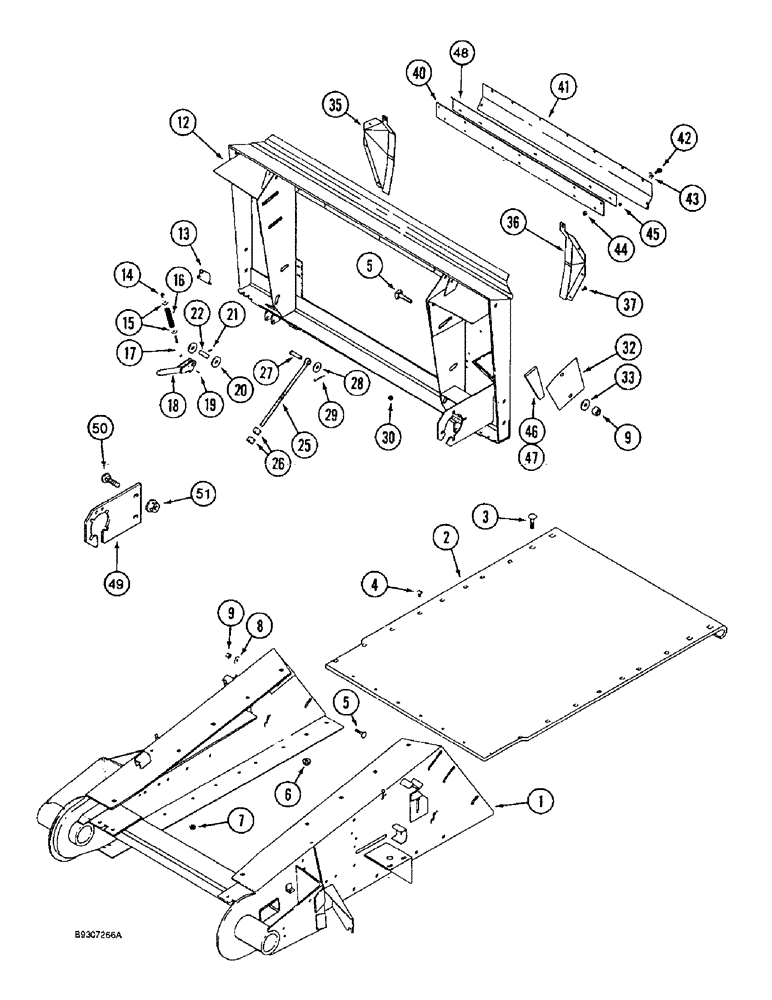

Запчасти Case IH 1666 (9A-28) - FEEDER, HOUSING AND ADAPTER (13) - FEEDER

1

120871A2

HOUSING

feeder, includes decal, 47 in. feeder, replaces 120871A1

1шт.

1

120873A2

HOUSING

feeder, includes decal, 54-1/2 in. feeder, repalces 120873A1, Includes: Ref. 1A

1шт.

1a

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Not shown

1шт.

2

1324576C1

PLATE

lower support, 47 in. feeder

1шт.

2

185820C1

SHEET

PLATE lower support, perforated, 47 in. feeder

1шт.

2

1324578C1

PLATE

lower support, 54-1/2 in. feeder

1шт.

2

1313970C1

PANEL

PLATE lower support, perforated, 54-1/2 in. feeder

1шт.

3

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT carriage, 1/2 NC x 1-1/4 in., grade 8

4шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

6-8шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 NC x 1-3/4 in.

6шт.

6

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 in. NC, grade 8

8шт.

7

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

hex flange, special, 3/8 in. NC

4-6шт.

8

496-81008

WASHER,1.06" ID x 1.88" OD x 0.13" Thk

sqare hole, 21/32 x 1-1/4 x 1/16 in.

6шт.

9

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

6шт.

12

1989330C2

SHIELD

ADAPTER feeder

1шт.

13

1338021C1

PIN,7.94mm OD

retaining

2шт.

14

231-1435

LOCK NUT,5/16"-18, GB

Hex, self locking

2шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

16

367833R1

SPRING

rod, latch

2шт.

17

177138C1

ROD

latch

2шт.

18

179024C1

HINGE

HANDLE lock, latch

2шт.

19

18518R1

LOCK PIN,1/8" x 1", Slotted

2шт.

20

495-81175

WASHER,21/32" x 1" x .120"

flat, 21/32 x 1 x 7/64 in.

4шт.

21

138-2005

PIN,1/4" x 1", Coiled

2шт.

22

177141C1

PIN,15.88mm OD x 41mm L

pivot, handle

2шт.

25

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYE adjusting

2шт.

26

329-108

NUT,1/2"-13, G8

4шт.

27

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

headed, 1/2 x 2-1/4 in.

2шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

32

1327737C2

PLATE

COVER feeder, side

2шт.

33

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

flat, 21/32 x 2-1/2 x 7/64 in.

2шт.

35

184853C1

DEFLECTOR

front, left hand

1шт.

36

184854C1

DEFLECTOR

front, right hand

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

10шт.

40

1319474C1

BAND

COVER feeder, top

1шт.

41

1319479C1

COVER

feeder, adapter

1шт.

42

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

43

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

5шт.

43

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 in.

7шт.

44

232-4115

LOCK NUT,5/16"-18, GC

5шт.

44

231-5345

FLANGE NUT,Flg, 5/16"-18

hex flange, self locking, 5/16 in. NC

7шт.

45

1321640C1

GROMMET

cover, adapter

2шт.

46

1327752C1

FOAM INSULATION

side, left hand

1шт.

47

1327753C1

FOAM INSULATION

side, right hand

1шт.

48

109253A1

LARGE PLATE

PLATE, LARGE STRIP feeder cover

1шт.

49

1957434C1

SUPPORT

jackshaft bearing, left hand

1шт.

50

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 in.

2шт.

51

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
