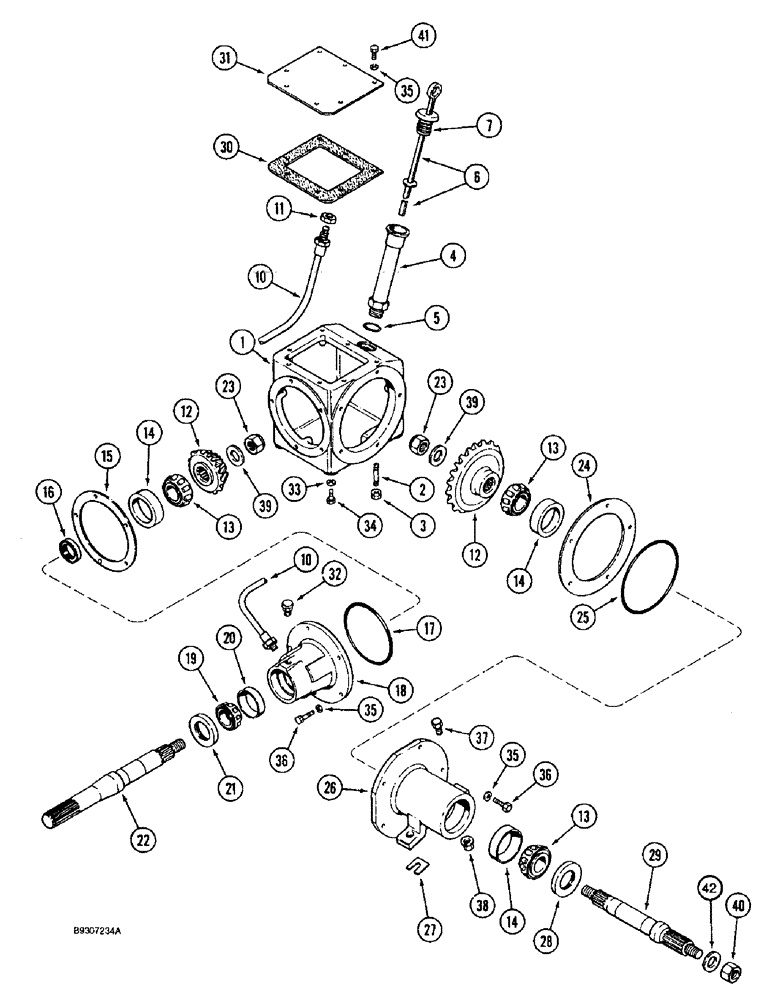

Запчасти Case IH 1666 (9A-18) - FEEDER, FEEDER DRIVE AND FAN GEAR HOUSING (13) - FEEDER

1

191388C1

CASE

HOUSING gear

1шт.

2

188126

PIPE,Nipple, 3/8" NPT x 2"

PIPE drain

1шт.

3

144164

O-RING

drain pipe

1шт.

4

195429C1

TUBE

oil gauge

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

195319C91

GAUGE ASSY.

oil, Includes: Ref. 7

1шт.

7

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

10

188589C91

HOSE

bank lube, 22 in., 559 mm, long

1шт.

11

F53473

LOCK NUT,1/8-27 NPSM

special

1шт.

12

1315597C1

GEAR SET

drive, 18 and 31 teeth

1шт.

13

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

tapered roller, 1-3/8 in. ID

3шт.

14

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

CONE tapered roller bearing, 3" OD, Inner

3шт.

195484C2

SHIM KIT

KIT shim, rear housing, Includes: Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in.

4шт.

15

NSS

NOT SOLD SEPARAT

SHIM, 0.007 in.

4шт.

15

NSS

NOT SOLD SEPARAT

SHIM, 0.020 in.

4шт.

16

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

oil, input shaft, inner

1шт.

17

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

18

191245C2

HUB

bell, rear

1шт.

19

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

tapered roller, 1-3/8 in. ID

1шт.

20

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

CONE tapered, roller, 2-1/2 in. O.D., outer

1шт.

21

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

oil, input shaft, outer

1шт.

22

191396C1

SHAFT

input

1шт.

23

195428C1

LOCK NUT

input and output shaft

2шт.

195485C1

SHIM KIT

KIT shim, right hand housing, Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in.

2шт.

24

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in.

2шт.

24

NSS

NOT SOLD SEPARAT

SHIM, 0.020 in.

2шт.

25

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

26

191248C1

HUB

bell, right

1шт.

27

935915R1

SHIM,33.02mm OD x 0.38mm Thk

bell housing, right, 0.015 in. thick

8шт.

28

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

oil, output shaft

1шт.

29

191384C1

SHAFT

output

1шт.

30

191397C2

GASKET

cover

1шт.

31

191249C1

COVER

gear housing

1шт.

32

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE vent, includes felt washer, 1/8 PT x 1 in.

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

34

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

35

492-11038

LOCK WASHER,3/8"

17шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

37

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

39

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

40

231-46114

LOCK NUT,7/8"-14, GB

hex, self locking, 7/8 in. NF

1шт.

41

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 3/8 NC x 3/4 in.

7шт.

42

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.
