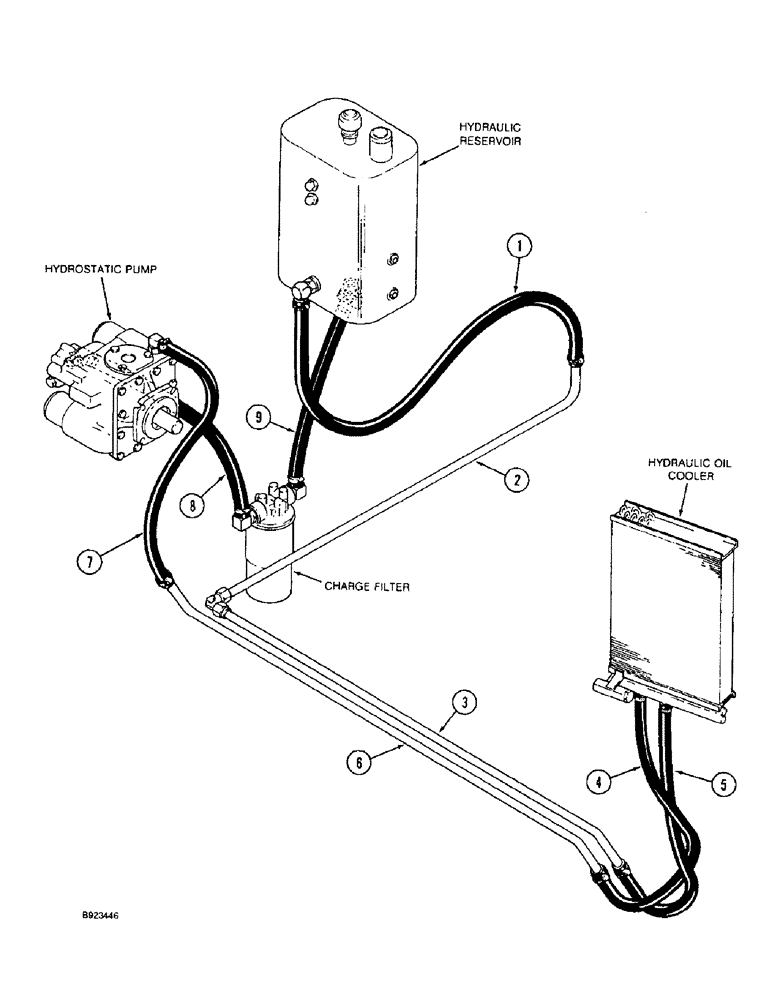

Запчасти Case IH 1666 (1-18) - PICTORIAL INDEX, OIL COOLER SYSTEM, CORN AND GRAIN (00) - PICTORIAL INDEX

1

Reservoir To Cooler Hose, Pages 8-13, 8-15

1шт.

2

Reservoir To Cooler Upper Tube, Pages 8-13, 8-15

1шт.

3

Reservoir To Cooler Lower Tube, Pages 8-13, 8-15

1шт.

4

Oil Cooler Return Hose, Pages 8-13, 8-15

1шт.

5

Oil Cooler Supply Hose, Pages 8-13, 8-15

1шт.

6

Pump To Cooler Tube, Pages 8-13, 8-15

1шт.

7

Pump To Cooler Hose, Pages 8-13, 8-15

1шт.

8

Charge Pump Suction Hose, Page 8-7

1шт.

9

Filter To Reservoir Hose, Page 8-7

1шт.
