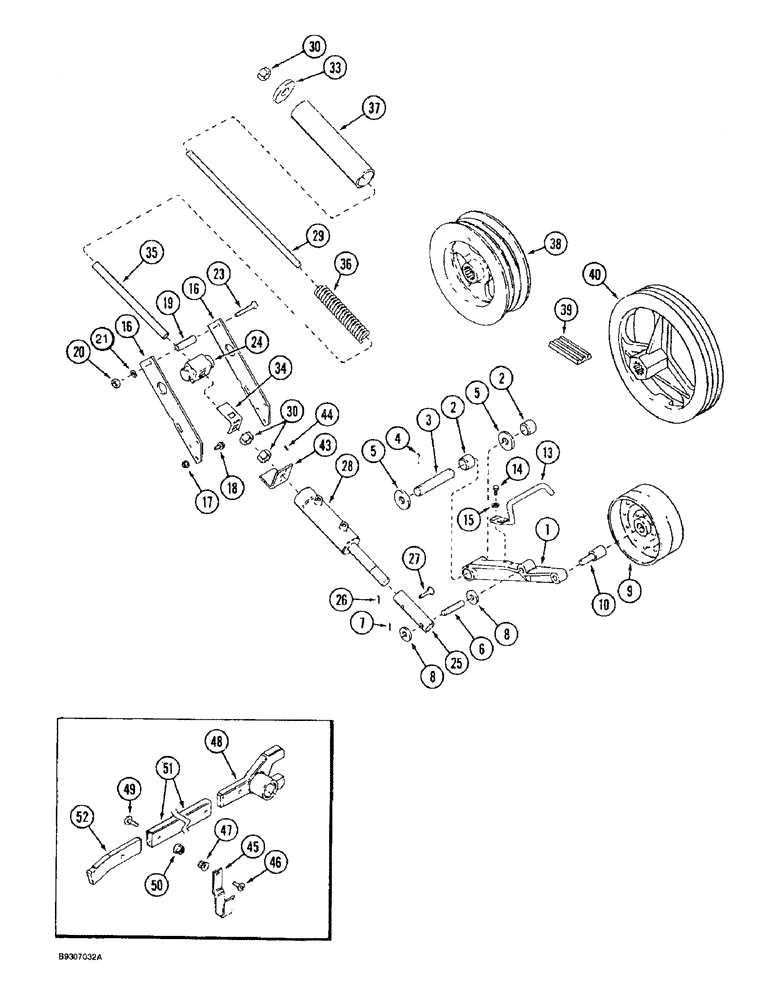

Запчасти Case IH 1666 (9A-14) - SEPARATOR, DRIVE PULLEY AND IDLER (13) - FEEDER

1

195457C92

LEVER

ASSY., drive belt clutch

1шт.

2

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

drive belt clutch lever, 1 ID x 1-1/4 O.D. x 1-1/8 in. wide, Includes: Ref. 2 and 3

2шт.

3

1315229C2

PIN,25.4mm OD x 135mm L

pivot, separator clutch arm

1шт.

4

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

495-81176

WASHER,21/32" x 1" x .060"

flat, 21/32 x 1 x 3/64 in.

2шт.

6

195459C1

PIN

lever, drive belt clutch

1шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

8

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

flat, 1-1/32 x 1-3/4 x 1/16 in.

7шт.

9

174757C1

PULLEY

idler, 8 in. O.D., separator belt idler

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

drive belt idler pulley

1шт.

13

193284C1

ROD

belt guide, cluth pulley belt guide

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

194220C1

BAR

cylinder anchor

2шт.

17

231-5146

FLANGE NUT,3/8"-16

6шт.

18

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

19

196676C1

SPACER

cylinder anchor bar

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

23

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 in.

1шт.

24

186747C3

PIVOT

separator drive arm, replaces 186747C2

1шт.

25

195432C1

TUBE,25.4 mm ID, 34.92 mm OD

BUSHING, cylinder extension

1шт.

26

432-612

COTTER PIN,3/32" x 3/4"

1шт.

27

427-6178

CLEVIS PIN,9.53mm OD x 45.24mm L

Hardened

1шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY, separator clutch, parts list Fig. 8-70

1шт.

29

1303058C1

ROD

separator drive tightener

1шт.

30

425-1010

NUT,5/8"-11, G5

3шт.

33

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

flat, 21/32 x 2 x 7/64 in.

3шт.

34

186748C1

BRACKET

drive tightener rod

1шт.

35

186744C1

TUBE,16.7 mm ID, 22.2 mm OD, 289.1 mm Length

SLEEVE, tightener rod, inner

1шт.

36

186745C1

SPRING

belt tightener, rod

1шт.

37

186746C1

TUBE

HOUSING belt tightener, outer

1шт.

38

191461C1

PULLEY,110mm OD

drive, 11 in. O.D., separator drive

1шт.

39

191241C3

BELT,22.33 mm W x 3302.69 mm L

Drive, Over center, Separator, Replaces 191441C2

1шт.

40

REF

INSTRUCTION

PULLEY, separator jackshaft driven, see Fig. 9A-16

1шт.

43

186749C1

BRACKET

Tightener rod, Separator rod

1шт.

44

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1/4" x 3/4", Slotted

1шт.

45

1979908C1

CLIP

rocking wrench

2шт.

46

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

2шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

48

1979527C1

WRENCH-HOOK

rocking

1шт.

49

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 Nc x 1-1/4 in.

2шт.

50

231-5146

FLANGE NUT,3/8"-16

2шт.

51

1979526C2

HANDLE

SUPPORT, wrench handle, rocking

1шт.

52

1979751C2

BAR

rotor rocker

1шт.
