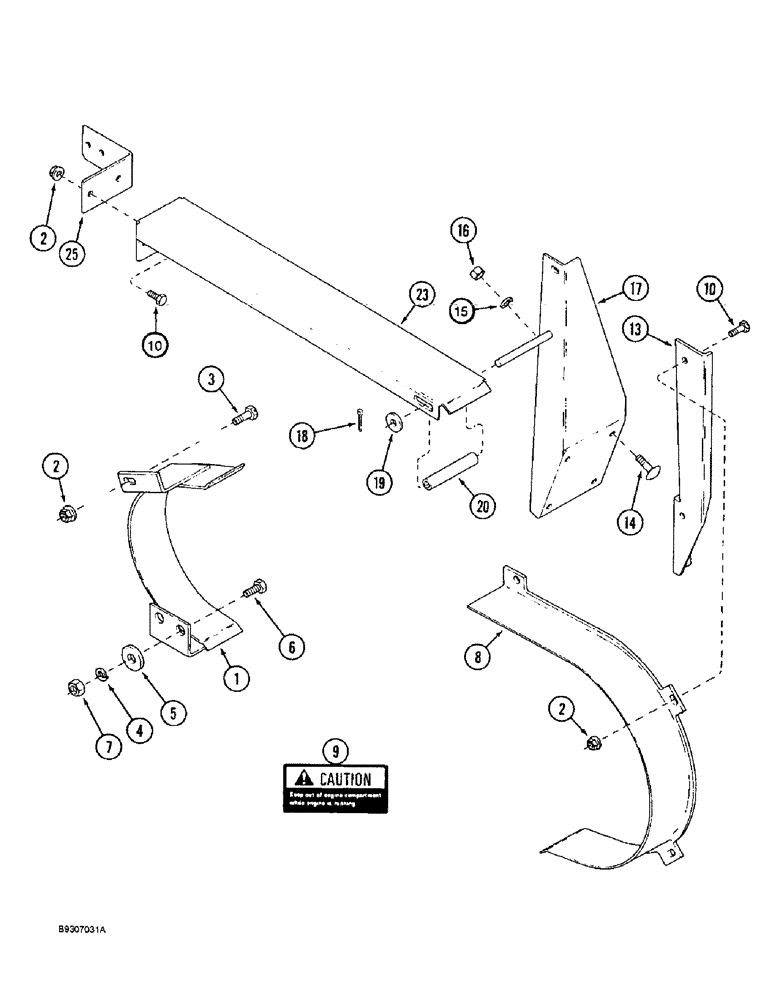

Запчасти Case IH 1666 (9A-12) - SEPARATOR, DRIVE SHIELDS (13) - FEEDER

1

1308774C1

GUARD ASSY.

SHIELD, drive pulley

1шт.

2

231-5146

FLANGE NUT,3/8"-16

7шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

3шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

185395C92

PROTECTION PLATE

ASSY., driven pulley, Includes: Ref. 9

1шт.

9

REF

INSTRUCTION

DECAL Caution, engine compartment, see Fig. 9H-35A for correct decal

1шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 38/ NC x 3/4 in.

6шт.

13

181168C1

SUPPORT

BRACKET shield, outer, belt drive

1шт.

14

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 in.

5шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

16

425-108

NUT,1/2" - 13, Gr 5

5шт.

17

181169C1

SUPPORT ASSY.

BRACKET, drive belt guide

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

1шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

20

188440C1

HOSE

separator channel, 4-1/2 in. (115 mm) long, cut from 526602R1 bulk hose, see below

1шт.

23

191961C2

SUPPORT

drive belt

1шт.

25

193686C1

ANGLE

drive belt support, channel

1шт.

526602R1

HOSE,12.7mm ID x 15240mm L

Bulk, Used for Ref. 20

1шт.
