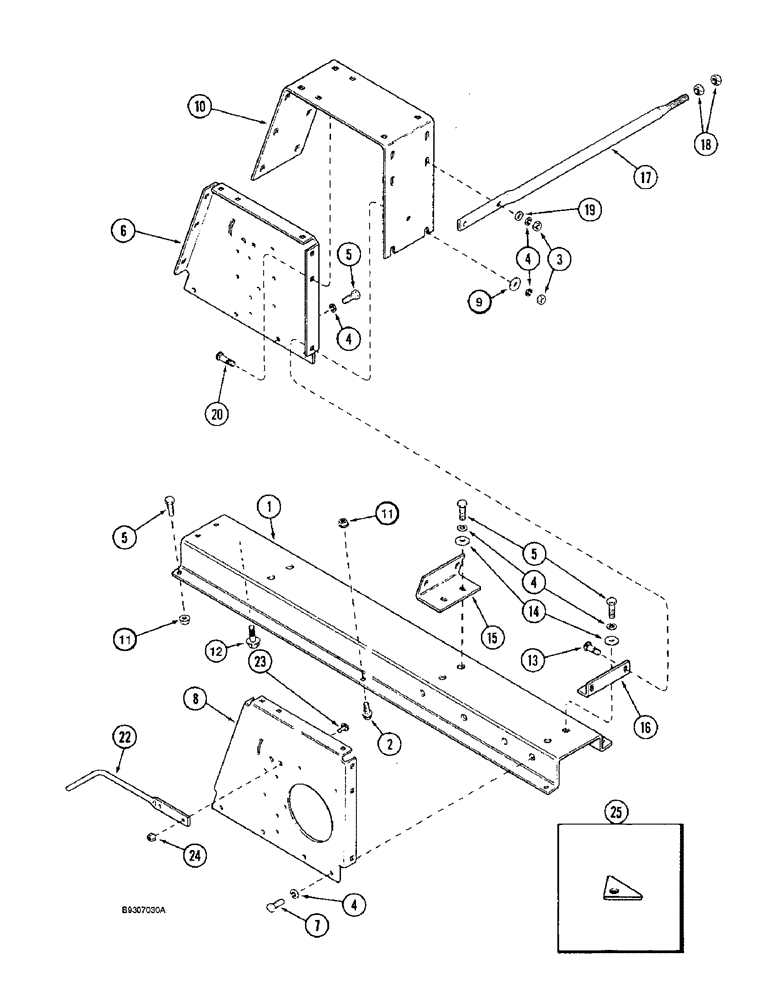

Запчасти Case IH 1666 (9A-10) - SEPARATOR, JACKSHAFT SUPPORT (13) - FEEDER

1

181333C1

SUPPORT ASSY.

jackshaft

1шт.

2

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 in.

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

7шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

19шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

6

181165C1

SUPPORT ASSY.

jackshaft, left hand, separator

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

8

181166C1

SUPPORT

jackshaft, right hand, separator

1шт.

9

495-81162

WASHER,17/32" x 1 1/2" x .179"

flat, 17/32 x 1-1/2 x 11/64 in.

1шт.

10

181167C1

SUPPORT

jackshaft, upper, separator

1шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

12

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

BOLT hex flange, 1/2 NC x 1-1/4 in., grade 8

1шт.

13

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 in.

5шт.

14

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32 x 1-1/4 x 7/64 in.

9шт.

15

181164C1

SUPPORT

separator jackshaft

1шт.

16

181172C1

SUPPORT

jackshaft support, rear

1шт.

17

181171C1

ROD

cross, support

1шт.

18

425-1110

NUT,5/8"-18, G5

2шт.

19

495-81017

WASHER,13.49mm ID x 19.05mm OD x 3.4mm Thk

flat, 17/32 x 3/4 x 1/8 in.

2шт.

20

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 NC x 1-1/2 in.

2шт.

22

194901C1

ROD

belt support, separator clutch

1шт.

23

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 in.

2шт.

25

1345342C1

BAND

PLATE, jackshaft shield

2шт.
