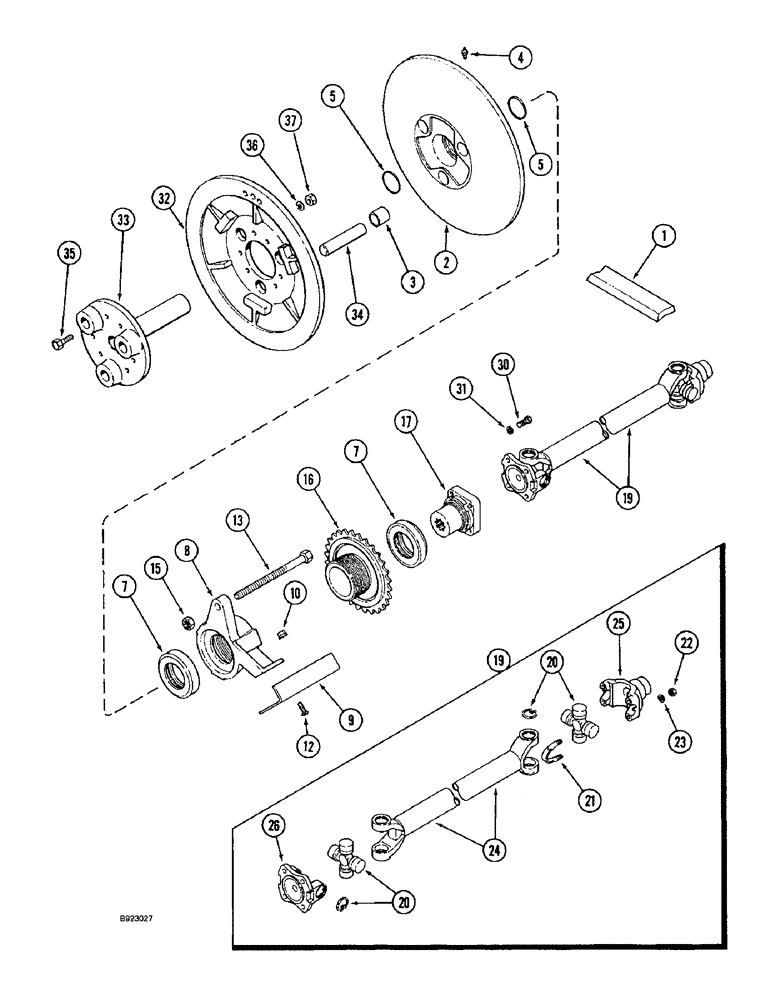

Запчасти Case IH 1666 (9A-08) - SEPARATOR, JACKSHAFT DRIVE, WITHOUT STRAW CHOPPER (13) - FEEDER

1

193923C4

V-BELT,2134.68 mm L

Rotor variable drive, See Fig. 9B-6

1шт.

2

1330054C1

PULLEY

rotor drive variable, 17-1/2 in. O.D., Includes: Ref. 3

1шт.

3

194665C1

BUSHING

pulley

3шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

Self tap

1шт.

5

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

7

194654C91

BALL BEARING,2.75" ID x 4.481" OD x 0.87"

jackshaft thrust

2шт.

8

194394C1

HUB

FITTING, variable pulley, female

1шт.

9

188309C2

SUPPORT

variable pulley, limit switch

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

12

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

13

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

1шт.

15

329-1412

JAM NUT,Jam, 3/4"-10, G8

1шт.

16

194464C2

SPROCKET

variable pulley, male, 25 teeth

1шт.

17

191542C2

SPLINED COUPLING,12T

universal joint

1шт.

19

191595C91

JOINT ASSY.

universal drive, Includes: Ref. 20 thru 26

1шт.

20

1300502C1

KIT

bearing, journal

1шт.

21

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

retaining, universal joint

2шт.

22

425-116

NUT,3/8" - 24, Gr 5

Hex

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

NSS

NOT SOLD SEPARAT

SHAFT drive

1шт.

25

NSS

NOT SOLD SEPARAT

YOKE drive

1шт.

26

NSS

NOT SOLD SEPARAT

FLANGE drive

1шт.

30

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

BOLT hex, 7/16 NC x 1-1/4 in. grade 8

4шт.

31

492-11044

LOCK WASHER,7/16"

4шт.

32

188848C1

PULLEY

rotor drive, stationary, 17-1/2 in. O.D.

1шт.

33

188846C1

HUB

ASSY., rotor drive pulley, Includes: Ref. 34

1шт.

34

191544C2

PIN,28.48mm OD x 127mm L

pulley

3шт.

35

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

36

392-21050

LOCK WASHER,1/2"

1/2"

6шт.

37

329-108

NUT,1/2"-13, G8

6шт.
