Запчасти Case IH 1666 (9H-28) - DECALS, COMBINE (12) - CHASSIS

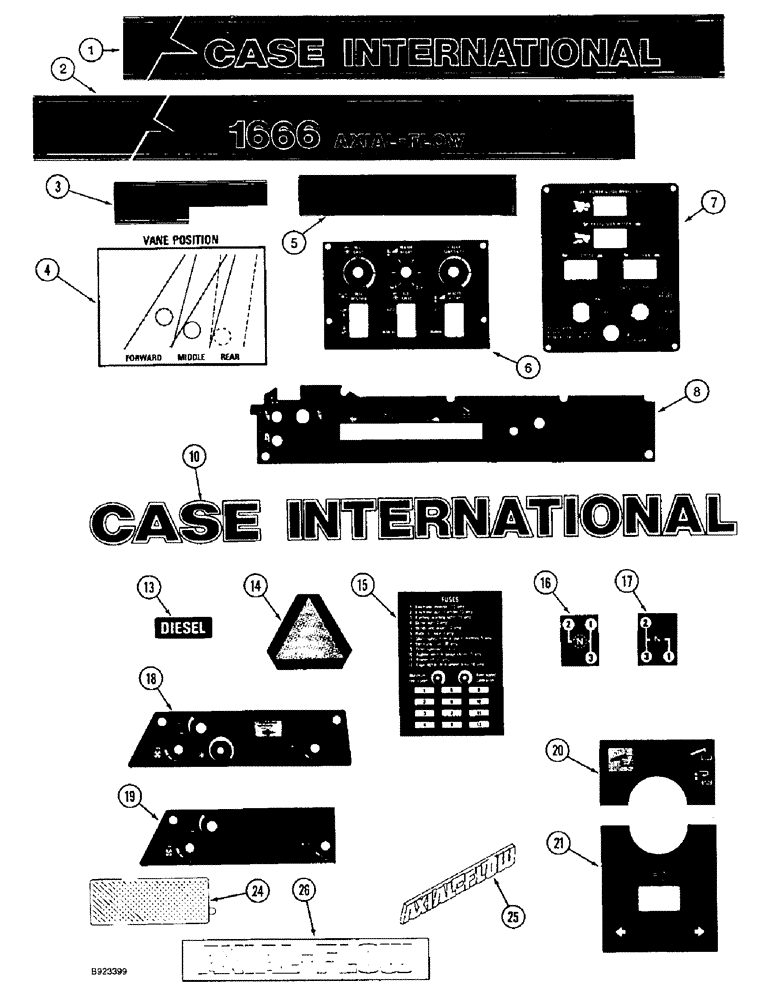

Схема запчастей Case IH 1666 - (9H-28) - DECALS, COMBINE (12) - CHASSIS
13
15
5
24
14
4
8
19
2
21
17
26
1
7
3
16
20
18
6
25
10

Артикул

Название

Примечание

Количество

1

1979680C1

DECAL

Case International, left hand

1шт.

1

1979681C1

DECAL

Case International, right hand

1шт.

2

114807A1

DECAL

stripe, 1666 Axial flow, left hand

1шт.

2

114808A1

DECAL

stripe, 1666 Axial flow, right hand

1шт.

3

1970481C1

DECAL

stripe, right hand side, front

1шт.

4

1957515C1

DECAL

vane location

1шт.

5

1324787C1

DECAL

stripe, left hand and right hand rear

2шт.

6

1280159C1

DECAL

header control panel

1шт.

7

1280167C2

DECAL

control panel combine

1шт.

7

1957290C1

DECAL

control panel (French)

1шт.

7

1957292C1

DECAL

control panel (Spanish)

1шт.

7

1957291C1

DECAL

control panel (German)

1шт.

8

1327827C2

DECAL

right hand console

1шт.

10

1973426C1

DECAL

Case International, rear

1шт.

13

186681C1

PRODUCT GRAPHIC

Diesel

1шт.

14

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SMV emblem, replaces 321-4311

1шт.

15

1321787C3

DECAL

fuse location

1шт.

15

1957293C1

DECAL

SPARE PART fuse location (French)

1шт.

15

1957295C1

DECAL

SPARE PART fuse location (Spanish)

1шт.

15

1957294C1

DECAL

SPARE PART fuse location (German)

1шт.

17

196685C1

PRODUCT GRAPHIC

shift pattern

1шт.

18

1283031C2

DECAL

heater/air conditioning control panel

1шт.

19

1283479C2

DECAL

heater controls

1шт.

20

1327548C1

DECAL

steering column, front

1шт.

21

1327549C3

DECAL

steering column, upper rear

1шт.

24

1284374C1

REFLECTOR,Reflector Red

red

1шт.

25

NSS

NOT SOLD SEPARAT

MEDALLION axial flow, order 1987144C1

1шт.

26

1987144C1

DECAL

Axial flow

1шт.

Выбрано товаров: 28
