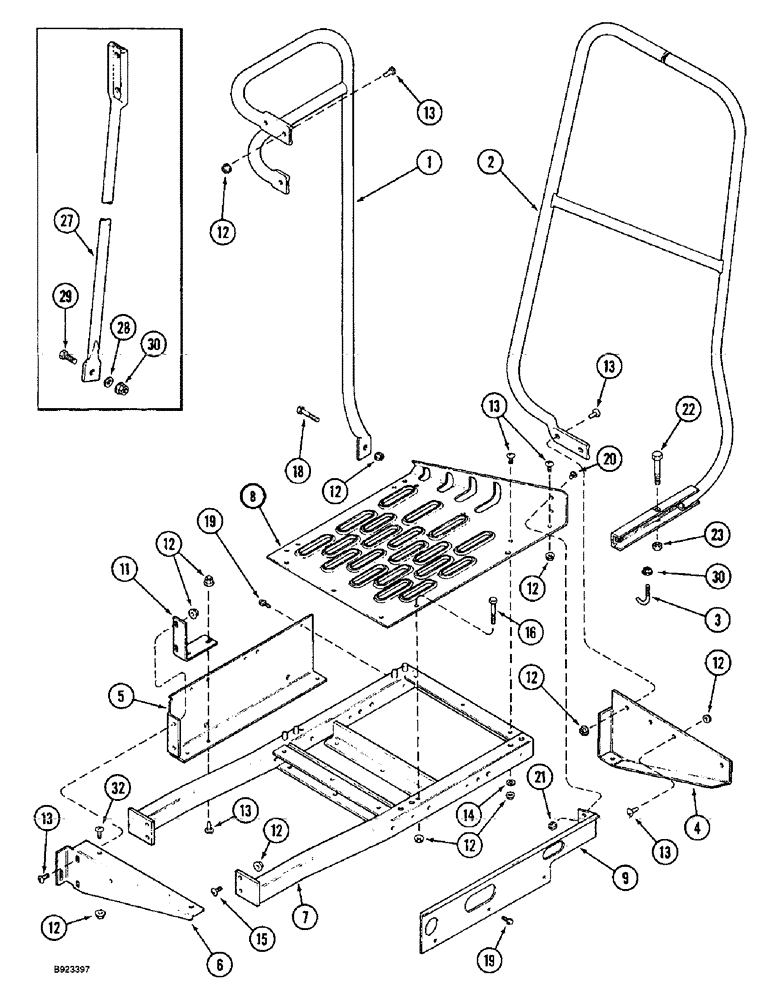

Запчасти Case IH 1666 (9H-26) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS

1

196642C2

RAIL

hand, platform extension, rear

1шт.

2

198548C2

RAIL

hand, platform extension, front

1шт.

3

196967C2

BOLT,3/8" - 16 x 2"

front hand rail hook, special

1шт.

4

198541C3

SUPPORT ASSY.

platform extension, front

1шт.

5

198543C3

SUPPORT

platform extension, left hand

1шт.

6

1338309C2

SUPPORT

operators platform extension

1шт.

7

198535C4

SUPPORT

extension

1шт.

8

198547C3

LARGE PLATE

PLATE, LARGE TREAD platform extension

1шт.

9

198542C3

SUPPORT

extension, right hand

1шт.

11

183761C1

ANGLE

rear extension

1шт.

12

231-5146

FLANGE NUT,3/8"-16

1шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

14

495-81140

WASHER,13/32" x 1 1/4" x .060"

3шт.

16

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self tapping, hex washer head, 1/4 NC x 1/2 inch

6шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

4шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

22

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

1шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

27

184395C1

STEM

SUPPORT ladder platform extension

1шт.

28

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

flat, 17/32 x 2 x 7/64 inch

3шт.

29

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

15

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

4шт.

32

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

4шт.
