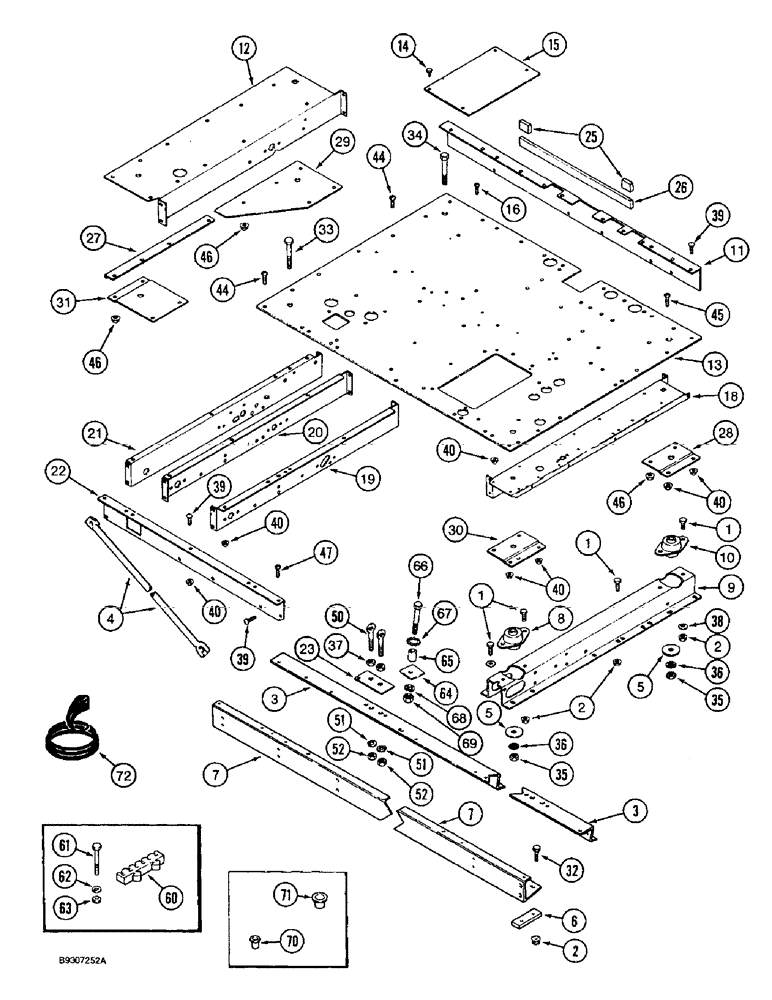

Запчасти Case IH 1666 (9H-22) - OPERATORS PLATFORM (12) - CHASSIS

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

3

193021C7

ANGLE

SUPPORT operators platform, front

1шт.

4

187645C2

ROD

operators platform extension

1шт.

5

196591C1

WASHER

flat, special isolation mount

4шт.

6

195715C1

BAR

rear mounting channel, 1/2 inch

2шт.

6

193428C1

BAR

rear mounting channel, 5/8 inch

2шт.

7

193022C3

SUPPORT

operators platform, rear

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR vibration, rear

2шт.

9

195507C6

SUPPORT

operators platform, side

2шт.

10

117722C4

INSULATOR

vibration, front

2шт.

11

1327564C2

SUPPORT

operators platform, front

1шт.

12

195520C3

SUPPORT

operators platform, left hand

1шт.

13

1321937C4

PLATFORM

operators plate

1шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

self tapping, hex head, 1/4 NC x 1/2 inch

4шт.

15

193029C2

PLATE

brake access, rear

1шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

11шт.

18

195518C8

SUPPORT

operators platform, right hand

1шт.

19

195519C6

SUPPORT

operators platform

1шт.

20

195521C4

SUPPORT

operators platform, center

1шт.

21

195557C7

SUPPORT

operators platform, left center

1шт.

22

195516C4

SUPPORT

operators platform, rear

1шт.

23

196592C3

BAR

platform spacer

2шт.

25

NSS

NOT SOLD SEPARAT

STRIP support, 2 inch, cut from 87281C1 bulk seal

1шт.

26

NSS

NOT SOLD SEPARAT

STRIP support, 26 inch, cut from 87281C1 bulk seal

1шт.

27

183680C1

ANGLE

stiffener platform, left hand

1шт.

28

183668C2

PLATE

platform, right hand front

1шт.

29

183669C2

PLATE

platform, left hand front

1шт.

30

183678C1

PLATE

platform, right hand rear

1шт.

31

183679C1

PLATE

platform, left hand rear

1шт.

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

87281C1

RUBBER STRIP,38mm W x 749mm L x 19mm Thk

bulk 600 inch (15240 mm) long

1шт.

34

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

BOLT hex, 3/4 NC x 4-3/4 inch

4шт.

35

232-41112

NUT,3/4"-10, GC

4шт.

36

495-81085

WASHER,1.16" ID x 1.62" OD x 0.06" Thk

flat, 1-5/32 x 1-5/8 x 3/64 inch

4шт.

37

425-1012

NUT,3/4"-10, G5

4шт.

38

495-81085

WASHER,1.16" ID x 1.62" OD x 0.06" Thk

flat, 1-5/32 x 1-5/8 x 3/64 inch

4шт.

39

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

20шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

41

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch, not used

4шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

44

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

46

231-5146

FLANGE NUT,3/8"-16

7шт.

47

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

1шт.

49

25754R1

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 8

BOLT hex, 3/4 NC x 4-1/4 inch

2шт.

50

165648C2

BOLT,3/4" - 10 x 4 1/2"

eye, leveling

4шт.

51

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

52

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NC

4шт.

60

3102155R1

HOLDER

shear bolt

1шт.

61

424-432

BOLT,Hex, 1/4" - 20 x 2", Gr 2

BOLT hex, 1/4 NC x 2 inch, grade 2

3шт.

62

492-11025

LOCK WASHER,1/4"

3шт.

63

425-104

NUT,1/4"-20, Cl 5

3шт.

64

1994748C1

SHIM

deck mount

6шт.

65

1994749C1

SPACER

3/4 x 2-23/64 inch

2шт.

66

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

BOLT hex, 3/4 NC x 4-1/4 inch

2шт.

67

493-41078

LOCK WASHER,Ext Tooth, 3/4"

external tooth lock, 3/4 inch

2шт.

68

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

69

425-1012

NUT,3/4"-10, G5

2шт.

70

1345349C1

PLUG,Cap, .240" OD

plastic, 7/32 inch hole

4шт.

71

1345351C1

PLUG,Cap, .428" OD

11/32 inch hole

3шт.

72

1327979C1

MOLDING

TRIM edge, 6 inch (152 mm) long, cut from 1330108CX bulk

1шт.

73

1284365C2

REFLECTOR

amber, not shown

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk 600 inch (15240 mm) long

1шт.

45

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

5шт.
