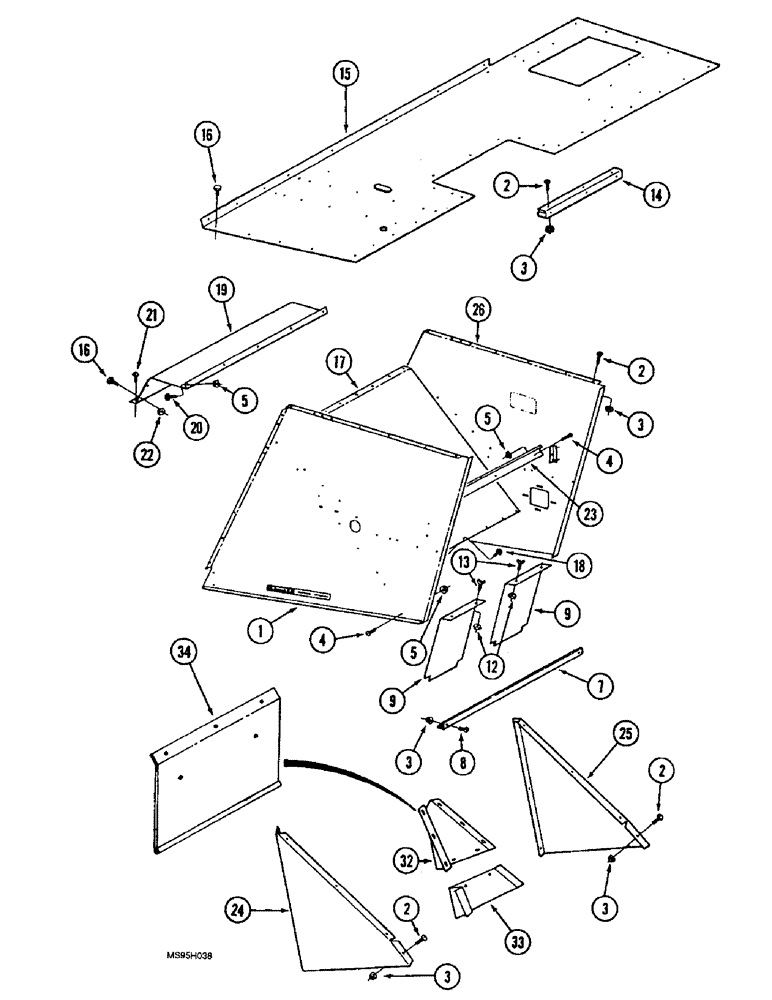

Запчасти Case IH 1666 (9H-08) - SEPARATOR SIDES (12) - CHASSIS

1

192378C9

SHEET

SIDE separator, left hand, replaces 192378C7

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

23шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

67шт.

5

231-5146

FLANGE NUT,3/8"-16

14шт.

7

192309C2

ANGLE

rear support

1шт.

8

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

3шт.

9

1300294C91

SUPPORT

hood, rear access, includes decals

2шт.

12

488837C1

SPRING NUT

speed, 5/26 inch, rear hood support

4шт.

13

183-123

THUMB SCREW

thumb with shoulder, 5/16 NC x 3/4 inch rear hood support, replaces 176978C1

4шт.

14

186971C1

ANGLE

rear deck support

1шт.

15

1317744C6

SHEET

SUPPORT rear deck

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

32шт.

17

1324988C3

DEFLECTOR

straw discharge, replaces 1324988C2

1шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

19

1541957C1

SHEET

SUPPORT engine deck

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

8шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

5шт.

22

488837C1

SPRING NUT

speed, 5/16 inch

5шт.

23

194305C1

ANGLE

deflector stiffener

1шт.

24

1302105C2

DEFLECTOR

SUPPORT corner, left hand, replaces 1302105C1

1шт.

25

1302106C2

DEFLECTOR

SUPPORT corner, right hand, replaces 1302106C1

1шт.

26

1302698C93

SUPPORT

SIDE separator, right hand, includes decals, Includes decal

1шт.

27

185442C1

DECAL

caution, engine must be shut off, not shown

1шт.

32

1319485C1

DEFLECTOR

rear hood, if used

1шт.

33

1321019C1

DEFLECTOR

guard, if used

1шт.

34

115498A2

DEFLECTOR

rear hood

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

6шт.
