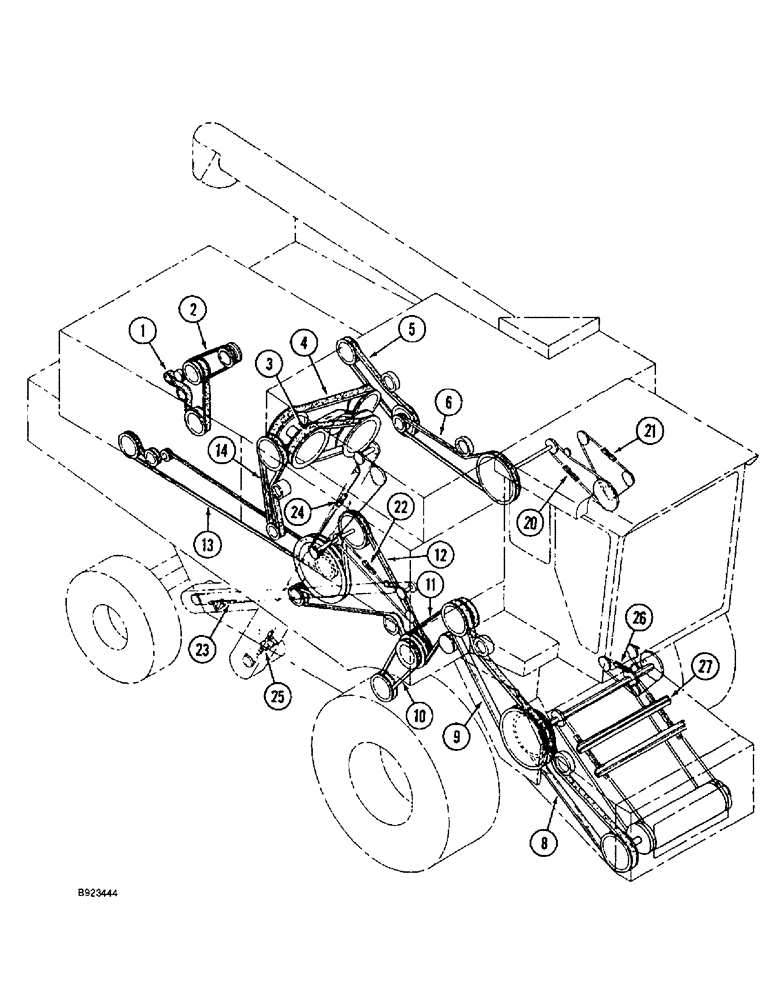

Запчасти Case IH 1666 (1-14) - PICTORIAL INDEX, BELTS, CHAINS (00) - PICTORIAL INDEX

BELTS

1шт.

1

Engine And Fan Alternator Belt, Page 2-13

1шт.

2

Air Conditioning Compressor Belt, Page 9G-45

1шт.

3

Rotor Drive Belt, Page 9B-7

1шт.

4

Separator Drive Belt, Page 9A-15

1шт.

5

Auxiliary Pump Drive Belt, Page 8-29

1шт.

6

Grain Tank Unloader Drive Belt, Page 9E-11

1шт.

8

Feeder Drive Belt, Page 9A-23

1шт.

9

Feeder Drive Belt, Page 9A-23

1шт.

10

Cleaning Fan Drive Belt, 9C-13

1шт.

11

Cleaning Fan Jackshaft Belt, Page 9A-3

1шт.

12

Elevator Drive Belt, Page 9A-5

1шт.

13

Straw Spreader Drive Belt, Page 9F-5

1шт.

14

Staw Chopper Drive Belt, Page 9F-11

1шт.

CHAINS

1шт.

20

Grain Tank Unloader Drive Chain, Page 9E-17

1шт.

21

Rear Horizontal Auger Drive Chain, Page 9E-17

1шт.

22

Trailings Elevator Drive Chain, Page 9D-33

1шт.

23

Trailings Elevator Conveyor Chain, Page 9D-29

1шт.

24

Clean Grain Elevator Drive Chain, Page 9D-19

1шт.

25

Clean Grain Elevator Conveyor Chain, Page 9D-7

1шт.

26

Feeder Reverser Drive Chain, Pages 9A-43B, 9A-45

1шт.

27

Feeder Conveyor Chain, Page 9A-35

1шт.

28

Rotor Drive Chain, Not Shown, Page 9B-9

1шт.
