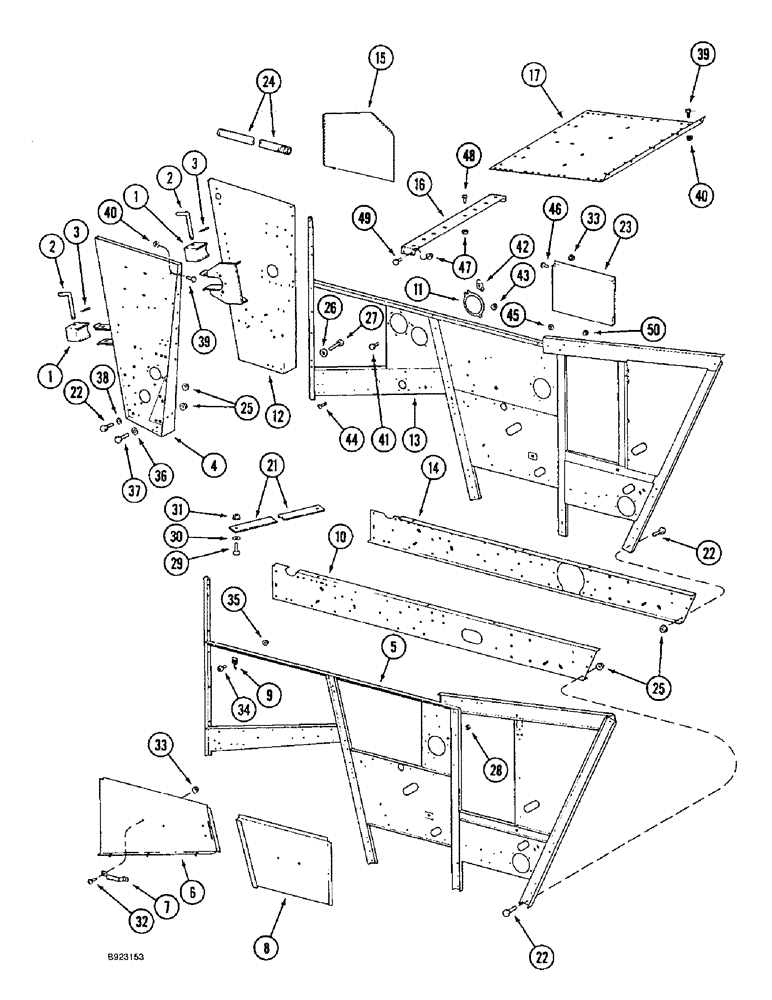

Запчасти Case IH 1666 (9H-06) - SEPARATOR DOORS, SIDES AND SUPPORTS (12) - CHASSIS

1

1989327C1

RETAINER

BLOCK feeder pivot

2шт.

2

192533C2

ROD

feeder pivot block

2шт.

3

1978738C1

HAIR PIN COTTER

3/16"

2шт.

4

120868A1

SUPPORT ASSY.

POST, side, left hand, front, includes ZA740950 decal

1шт.

5

1970184C2

STIFFENER

FRAME separator, left hand

1шт.

6

186178C91

DOOR

separaror, left hand, front

1шт.

7

160638C1

HANDLE

door separator

3шт.

8

186188C91

DOOR

separator, left hand

1шт.

9

167800C1

CLIP

door, retaining clip

14шт.

10

1327695C8

SUPPORT

separator, main, left hand

1шт.

11

188315C1

DOOR

access, belt drive cover separator, right hand

1шт.

12

185125C3

SUPPORT ASSY.

POST separator, right hand

1шт.

13

1970464C3

SIDE ASSY.

separator, right hand

1шт.

14

1317554C5

SUPPORT

separator, right hand, main

1шт.

15

186199C91

DOOR

separator, right hand, front

1шт.

16

195316C1

SUPPORT ASSY.

engine deck

1шт.

17

1324970C2

PLATE

engine deck

1шт.

21

196315C2

BAR

separator frame, diagonal support

2шт.

22

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

hex, 5/8 NC x 1-1/4 inch, grade 8

26шт.

23

181085C2

DOOR

separator side

2шт.

24

1319395C1

CONDUIT

convoluted, 12-1/8 inch long

1шт.

25

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange, 5/8 inch NC, grade 8

34шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

27

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

28

353-252

PLUG,1"

button, 1 inch

1шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

5шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

5шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 inch NC, grade 8

5шт.

32

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

6шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

34

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

14шт.

35

231-51409

SERRATED NUT,Flg, USR, #10-24

14шт.

36

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

flat, 21/32 x 1-1/2 x 3/16 inch, hardened

4шт.

37

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

8шт.

38

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/2 x 1/8 inch

12шт.

39

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

13шт.

40

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

13шт.

41

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

42

86627130

WING NUT,1/4"-20

1/4 inch NC

1шт.

43

232-4114

LOCK NUT,1/4"-20, GC

1шт.

44

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

slotted truss head, 1/4 NC x 1/2 inch

1шт.

45

432366

HOLE PLUG BUTTON,1 3/8"

button, 1-3/8 inch dia.

1шт.

46

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.

47

231-5146

FLANGE NUT,3/8"-16

16шт.

49

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

50

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

51

188062C2

DOOR SEAL,12.7mm H x 25.4mm W x 140mm L

5-1/2 inch (140 m) long, cut from 1338148CX bulk seal door, for use between separator side doors and auger bed

4шт.

1338148CX

SEAL

bulk, foam, adhesive backed 600 inch, (15240 mm) long

1шт.

48

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

12шт.
