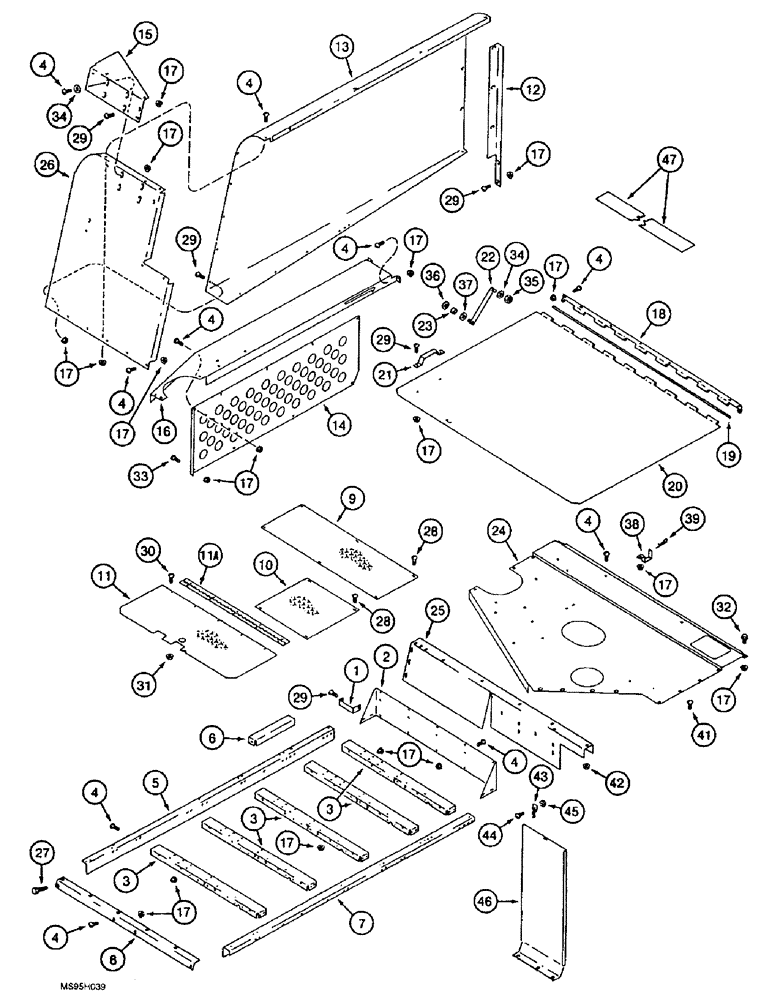

Запчасти Case IH 1666 (9H-02) - ENGINE SHIELD AND SERVICE DECK (10) - CAB & AIR CONDITIONING

1

188419C1

CHANNEL

BRACKET grain tank, upper left hand, rear

1шт.

2

193435C2

SUPPORT

engine service deck

1шт.

3

192959C6

SUPPORT

deck

5шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

5

188368C4

ANGLE

BRACKET deck support, left hand

1шт.

6

1979830C1

SUPPORT

deck

1шт.

7

192960C6

ANGLE BAR

deck, right hand

1шт.

8

193146C4

ANGLE

engine deck, rear support

1шт.

9

1979874C1

PLATE

engine compartment, front

1шт.

10

1979827C1

PLATE

DECK engine compartment

1шт.

11

1977155C2

DOOR

service deck

1шт.

11a

186695C1

HINGE

door, service deck

1шт.

12

188377C1

ANGLE

shield stiffener, upper left hand

1шт.

13

1347060C2

SUPPORT

rear, upper left hand trim

1шт.

14

1302703C2

SHEET ASSY.

PLATE rotor cover to service deck

1шт.

15

1330481C2

SUPPORT

LH Rear, Upper shield

1шт.

16

1541854C2

SUPPORT

door and hood

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

18

194477C2

HINGE

rotor cover door, front

1шт.

19

194478C1

ROD

rotor door hinge

1шт.

20

186197C93

TRAP DOOR

engine and rotor drive cover, includes decal

1шт.

21

160638C1

HANDLE

door rotor

1шт.

22

1302413C1

PROP

Front, Door

1шт.

23

568257R1

SPACER,1/2" Tube x 3/8"

1/2 x 3/8 inch

1шт.

24

1541839C3

SUPPORT

upper cover, rear

1шт.

25

1541955C2

SUPPORT

air cleaner

1шт.

26

1347130C1

PROTECTION PLATE

SUPPORT engine, left hand rear

1шт.

27

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

28

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self tapping, hex washer head, 1/4 NC x 1/2 inch

20шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

29шт.

30

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

slotted truss head, 1/4 NC x 1/2 inch

18шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

3шт.

34

495-81117

WASHER,.344" x 1" x .120"

flat, 11/32 x 1 x 7/64 inch

2шт.

35

231-5315

FLANGE NUT,Flg, 5/16"-18

2шт.

36

495-81024

WASHER,17/32" x 1 1/4" x .060"

flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

37

567532R1

WASHER

WASHER flat, special, 21/64 x 1/2 x 5/32 inch

1шт.

38

1979316C2

SUPPORT

engine compartment door

1шт.

39

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

40

D55216

PAD,2" x 9"

not shown

10шт.

41

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

43

167800C1

CLIP

door, retaining clip

2шт.

44

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

45

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

46

1977286C3

SUPPORT

air shield

1шт.

47

D80270

ANTI-SKID STRIP,635mm / 25 Inch

5шт.
