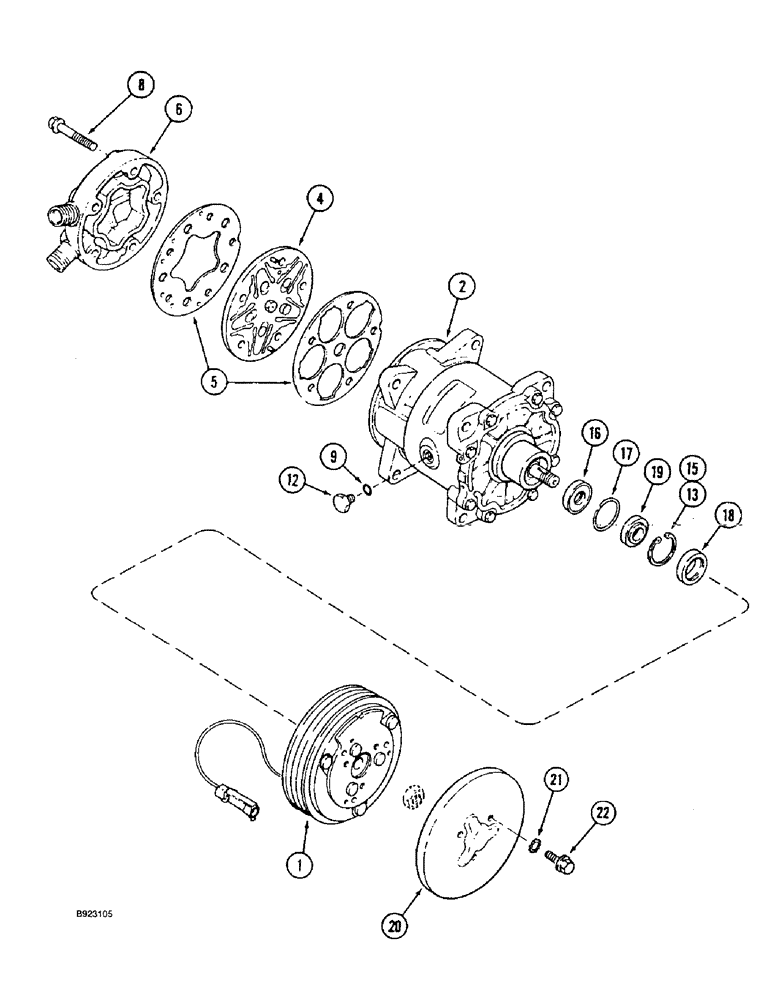

Запчасти Case IH 1666 (9G-46) - HEATER AND AIR CONDITIONING SYSTEM, COMPRESSOR ASSEMBLY (10) - CAB & AIR CONDITIONING

1977959C1

COMPRESSOR

ASSEMBLY, air conditioning, Includes: Ref. 1 thru 22

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

1666 CASE IH AXIAL-FLOW COMBINE, ASSEMBLY (1/93-12/94)

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

1

1981779C1

CLUTCH ASSEMBLY

COMPRESSOR, 6 inch

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE compressor valve

1шт.

5

A49668

GASKET KIT

valve plate

1шт.

6

1958959C1

COVER

HEAD cylinder

1шт.

8

A49669

SCREW,Cylinder

BOLT hex flange

5шт.

9

A49666

O-RING

rubber

1шт.

12

A49667

PLUG

hex oil filter

1шт.

13

A49664

CIRCLIP

RING snap, seal seat

1шт.

A49665

SEAL KIT

SEAL, front, Includes: Ref. 15 and 19

1шт.

15

A49664

CIRCLIP

RING snap, seal seat

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

18

NSS

NOT SOLD SEPARAT

RING felt

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

20

1981776C1

COVER

dust, clutch, replaces 1958961C1, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER external teeth

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW dust cover

1шт.
