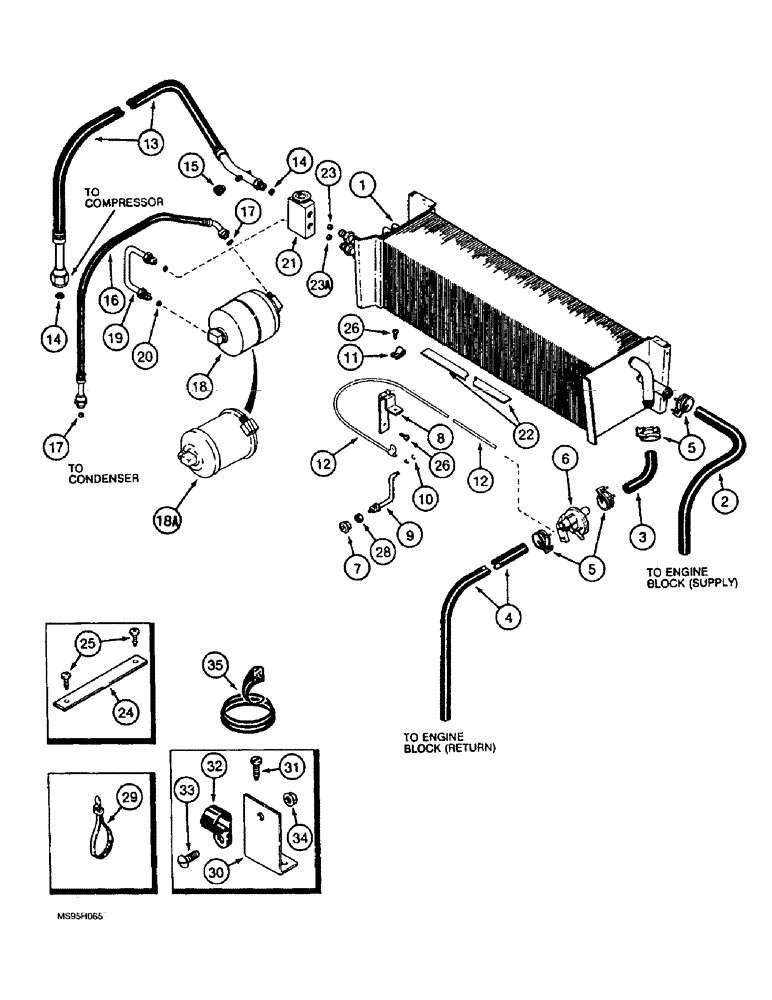

Запчасти Case IH 1666 (9G-42) - HEATER AND AIR CONDITIONING, CAB CONNECTIONS, PRIOR TO P.I.N JJC0039510 (10) - CAB & AIR CONDITIONING

1

1974632C3

EVAPORATOR

CORE ASSEMBLY, heater, includes 1990756C1 valve, Ref. 21, 238-5015 O-ring Ref. 23 and 238-5013 O-ring Ref. 23A, parts list Fig. 9G-36, replaces 1974632C2

1шт.

2

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HOSE,LARGE Cut from 97252CX bulk hose, Heater to chassis junction

1шт.

3

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut from 97252CX bulk hose, Heater to Valve, Return

1шт.

4

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

Cut from 97252CX bulk hose, Heater to valve to chassis, Return

1шт.

5

1954736C1

HOSE CLAMP,#24

Adjustable, Retaining

4шт.

6

1331087C1

HEATER VALVE

control heater

1шт.

7

111282C1

KNOB

KNOB control heater

1шт.

8

1989808C1

SUPPORT

cable, heater valve control

1шт.

9

1989809C1

ARM

LEVER heater control

1шт.

10

100-3325

SNAP RING,#25, .207" Dia, E-Type

2шт.

11

1954626C1

SPRING CLIP

CLIP retaining cable

1шт.

12

1989810C1

CABLE

control heater valve

1шт.

13

1276164C1

HOSE

ASSEMBLY, evaporator discharge, Includes: Ref. 14 and 15

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female, 45 degree flare seal

1шт.

16

1276163C2

HOSE

drier to cab, Includes: Ref. 17

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

18

1990758C2

RECEIVER-DRYER

air conditioning system reservoir, replaced by Ref. 18A 1990758C2

1шт.

18a

1990758C2

RECEIVER-DRYER

air conditioning, replaces 143469C2

1шт.

19

1250438C1

TUBE ASSY.

receiver drier, Includes: Ref. 20

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

21

1990756C1

VALVE

expansion, replaces 98370C3

1шт.

22

83822C1

TAPE

24 inch (610 mm) long, cut from 1954475C1 bulk

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

23a

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

24

1321363C2

STRAP

retaining hose

4шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

self tapping, pan Phillips No. 10-16 x 3/8 inch

3шт.

28

109311H

JAM NUT

hex, jam, 7/16-28 NF

1шт.

29

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

1шт.

30

98158C1

BRACKET

heater valve support

1шт.

31

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

6шт.

32

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Hose, retaining

1шт.

33

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

35

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

TRIM edge, 3 inch (76 mm) long, cut from 1330108CX bulk heater and air conditioning hose

2шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk 600 inch (15240 mm) long

1шт.

97252CX

HOSE

bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.

1954475C1

ROLL

TAPE bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.
