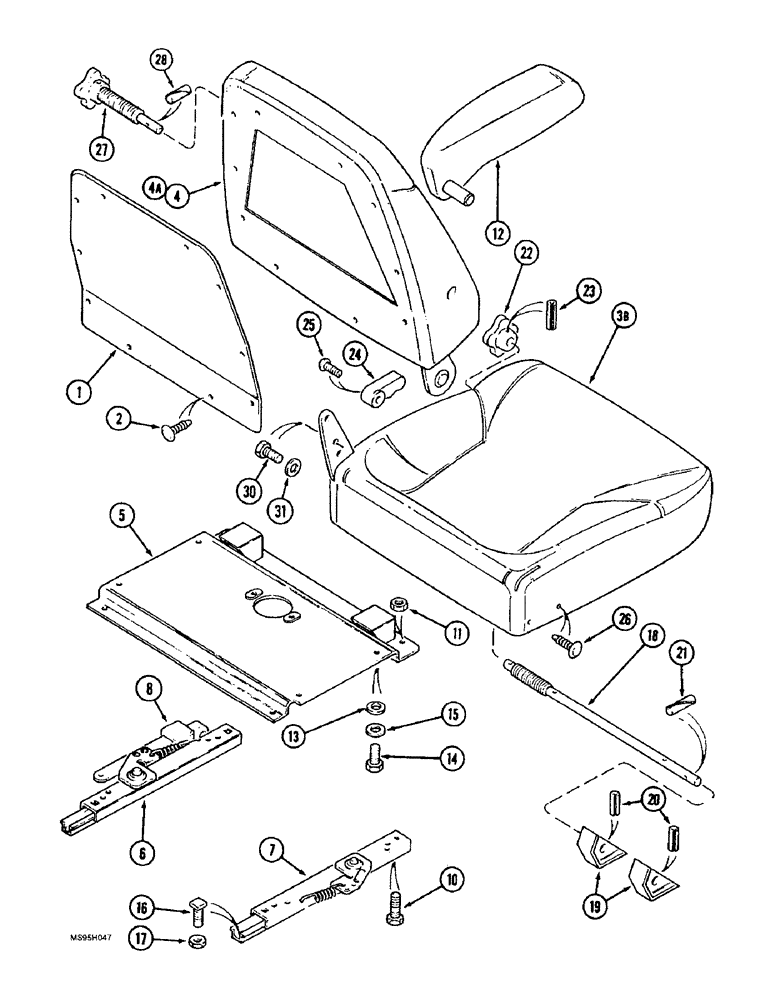

Запчасти Case IH 1666 (9G-32) - AIR SUSPENSION SEAT, CUSHIONS AND SLIDES (10) - CAB & AIR CONDITIONING

1990653C2

SEAT

ASSEMBLY, operators air suspension, also includes Refs. on parts list Fig. 9G-34 and 9G-34A, Includes: Ref. 1 thru 3

1шт.

1

1974713C2

PACKAGE

KIT backrest cover and retainers, Includes: Ref. 2

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

2

1999693C1

KIT

CLIP christmas tree, package of 14

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

3

136336A1

CUSHION, SEAT

KIT, cushion pad only, cloth with horizontal center lines, not shown, replaces 1974701C2

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

3b

132885A1

CUSHION

seat pad only, cloth

1шт.

4

132886A1

BACKREST

KIT cloth, complete with lumbar knob, without armrest, if used, Includes: Ref. 4 thru 31

1шт.

4

1974702C2

PACKAGE,SERVICE

CUSHION, backrest, includes 44 retainer rings

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

4a

NSS

NOT SOLD SEPARAT

PAD backrest

1шт.

4b

NSS

NOT SOLD SEPARAT

RING hog, not shown

1шт.

5

134180A1

PLATE

seat adapter, replaces 199990C1

1шт.

1344248C1

SLIDE

KIT double locking slide, Includes: Ref. 6 thru 9

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE locking, with handle, left hand

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE locking, right hand

1шт.

8

1981829C1

WINDOW STAY

KNOB fore/aft, no longer available, order 1999691C1

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE slide latch, not shown

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

230-4225

LOCK NUT,5/16"-18, GA

hex, self locking, 5/16 inch NC

4шт.

12

1981818C1

ARMREST

KIT armrest, left hand

1шт.

13

1959679C1

SPACER

tubular

4шт.

14

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

17

230-4225

LOCK NUT,5/16"-18, GA

hex, self locking, 5/16 inch NC

8шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT seat tilt

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

19

NSS

NOT SOLD SEPARAT

CAM seat tilt

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

20

38-11016

LOCK PIN,5/32" x 1", Slotted

2шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

21

NSS

NOT SOLD SEPARAT

PIN spiral

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB seat tilt, order 1999691C1 kit

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

23

38-11016

LOCK PIN,5/32" x 1", Slotted

Order 1999691C1

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB seat, backrest tilt, order 1999691C1

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW machine, oval head cross recess, 6 x 12 mm, 1999691C1 kit

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

26

NSS

NOT SOLD SEPARAT

CLIP retaining

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

27

1987286C2

CUSHION, SEAT

KIT cushion, no longer available, order 1999691C1

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

28

38-11016

LOCK PIN,5/32" x 1", Slotted

Order 1999691C1 kit

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

29

1999779C1

STRIPPER PACKAGE

KIT christmas tree, backrest, package of 4, not shown

1шт.

30

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

Part includes seat assembly kit, seat cushion and backrest, without suspension cloth, replaces 1344004C3

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.

1344004C4

SEAT ASSY.

KIT, seat cushion and backrest, without suspension, replace 1344004C3

1шт.

1999691C1

PACKAGE,SERVICE

KIT seat knob, top, includes Refs. 8, 22, 23, 24, 25, 27 and 28, shown above

1шт.
