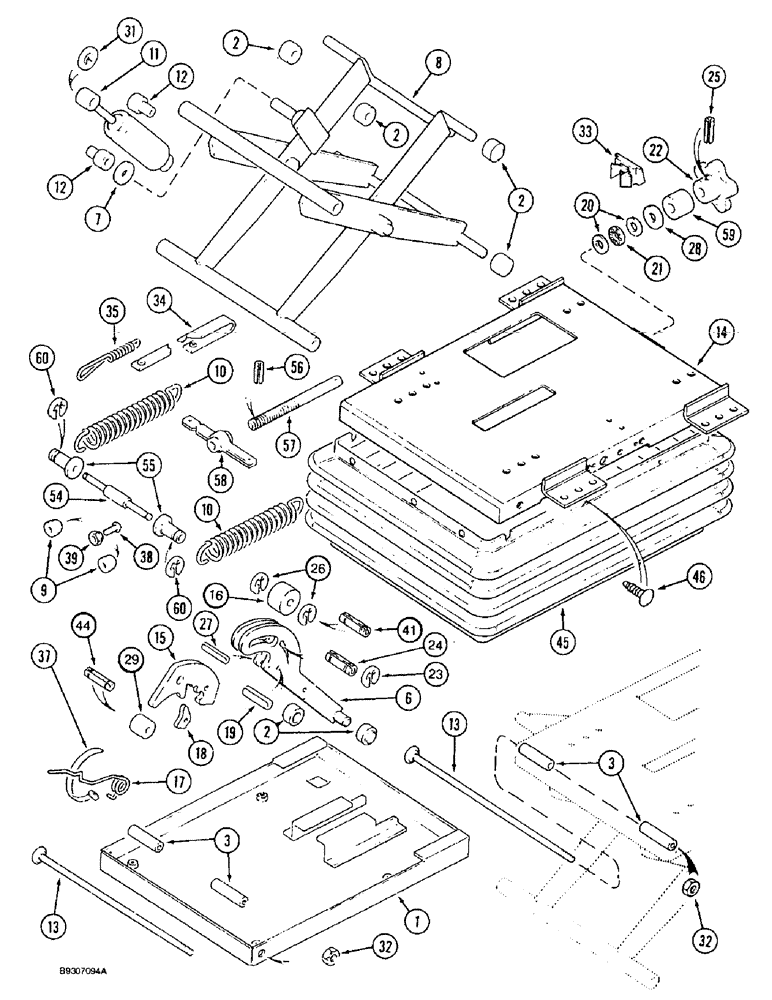

Запчасти Case IH 1666 (9G-28) - MECHANICAL SUSPENSION SEAT, SUSPENSION (10) - CAB & AIR CONDITIONING

1990651C2

SEAT

ASSEMBLY, mechanical suspension, also includes Refs. on parts list Fig. 9G-26 and 9G30, Includes: Ref. 1 thru 39

1шт.

1981819C1

PACKAGE, REPAIR

KIT seat suspension, Includes: Ref. 1 thru 39

1шт.

1

1981787C1

CASE

HOUSING lower

1шт.

1344249C1

KIT

KIT tube and bearing, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE rolleer suspension

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING tube

1шт.

6

NSS

NOT SOLD SEPARAT

CAM low profile

1шт.

Part of cam follower kit, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER spacer, plastic

1шт.

8

1981789C1

DIPPER

ARM suspension

1шт.

9

1981793C1

BUMPER

seat

2шт.

10

1981794C1

SPRING

external

2шт.

Part of weight adjustment spring kit, includes Refs. 10, 55 and 60

1шт.

1344250C1

SHOCK ABSORBER

KIT, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ABSORBER shock

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING shock absorber

1шт.

13

A49529

SHAFT

bushing tube

2шт.

14

1981821C1

HOUSING

upper

1шт.

15

NSS

NOT SOLD SEPARAT

CAM follower

1шт.

Part of cam follower kit, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING cam follower

1шт.

Part of cam follower kit, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING height adjustment

1шт.

Part of height adjustment kit, includes Refs. 17, 29, 37 and 44

1шт.

18

NSS

NOT SOLD SEPARAT

LATCH cam follower

1шт.

Part of cam follower kit, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

19

NSS

NOT SOLD SEPARAT

PIN roller

1шт.

20

NSS

NOT SOLD SEPARAT

RACE thrust

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

22

118578C1

BUTTON

KNOB ASSEMBLY weight

1шт.

Part of knob and shaft assembly kit, includes Refs. 22, 25 and 57

1шт.

23

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of cam follower kit, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

24

NSS

NOT SOLD SEPARAT

PIN cam follower

1шт.

Part of cam follower kit, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

25

NSS

NOT SOLD SEPARAT

PIN roll, 5/16 x 1-1/4 inch

1шт.

Part of knob and shaft assembly kit, includes Refs. 22, 25 and 57

1шт.

26

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of cam follower kit, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

27

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.

29

NSS

NOT SOLD SEPARAT

SPACER height adjustment

1шт.

Part of height adjustment kit, includes Refs. 17, 29, 37 and 44

1шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

2шт.

32

230-4216

LOCK NUT,3/8"-16, GA

2шт.

33

NSS

NOT SOLD SEPARAT

GUIDE weigth adjuster

1шт.

Part of spring and weight adjustment kit, includes Refs. 17, 33, 34, and 35

1шт.

34

NSS

NOT SOLD SEPARAT

TAPE weight adjuster

1шт.

Part of spring and weight adjustment kit, includes Refs. 17, 33, 34, and 35

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING suspension

1шт.

Part of spring and weight adjustment kit, includes Refs. 17, 33, 34, and 35

1шт.

37

NSS

NOT SOLD SEPARAT

TIE cable

1шт.

Part of height adjustment kit, includes Refs. 17, 29, 37 and 44

1шт.

38

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

Retaining

2шт.

39

230-42409

NUT,#10-24, GA

hex, self locking, No. 10 NC

2шт.

1999901C1

KIT

spring and weight adjustment, includes Refs. 17, 33, 34, and 35

1шт.

123966A1

PACKAGE

KIT height adjustment, includes Refs. 17, 29, and 37 and 44

1шт.

123967A1

PACKAGE

KIT cam follower, includes Refs. 6, 15, 16, 18, 23, 24, 26, and 41

1шт.

123968A1

PACKAGE

KIT weight adjustment spring, includes Refs. 10, 55, and 60

1шт.

123969A1

SEAT ACCESSORY

Kit, Knob and shaft assy, Incl Ref 22, 25 and 57

1шт.

1990651C2

SEAT

ASSEMBLY, mechanical suspension, also includes Refs. on parts list Fig. 9G-26, Includes: Ref. 41 thru 61

1шт.

41

NSS

NOT SOLD SEPARAT

PIN cam follower

1шт.

Part of cam follower kit, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

44

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

Part of height adjustment kit, includes Refs. 17, 29, 37 and 44

1шт.

45

1981786C1

KIT

boot, suspension, Includes: Ref. 46

1шт.

46

132872A1

KIT

Pin, retaining

1шт.

1987116C1

PACKAGE

KIT weight adjustment, Includes: Ref. 54 thru 60

1шт.

54

128115A1

SHAFT

spring

1шт.

55

NSS

NOT SOLD SEPARAT

BUSHING spring

1шт.

Part of weight adjustment spring kit, includes Refs. 10, 55 and 60

1шт.

56

NSS

NOT SOLD SEPARAT

PIN roll, 5/32 x 5/8 inch

1шт.

57

NSS

NOT SOLD SEPARAT

SHAFT weight adjustment

1шт.

Part of knob and shaft assembly kit, includes Refs. 22, 25 and 57

1шт.

58

NSS

NOT SOLD SEPARAT

BAR weight adjustment

1шт.

59

NSS

NOT SOLD SEPARAT

SPACER weight adjustment

1шт.

60

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of weight adjustment spring kit, includes Refs. 10, 55 and 60

1шт.

61

151-537

RIVET,Pop, 1/8" x .650"

break mandrel, 1/8 x 5/8 inch, not shown

1шт.

1999901C1

KIT

spring and weight adjustment, includes Refs. 17, 33, 34, and 35

1шт.

123966A1

PACKAGE

KIT height adjustment, includes Refs. 17, 29, 37, and 44

1шт.

123967A1

PACKAGE

KIT cam follower, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41

1шт.

123968A1

PACKAGE

KIT weight adjustment spring, includes Refs.10, 55 and 60

1шт.

123969A1

SEAT ACCESSORY

Kit, Knob and shaft assy, Incl Ref 22, 25 and 57

1шт.
