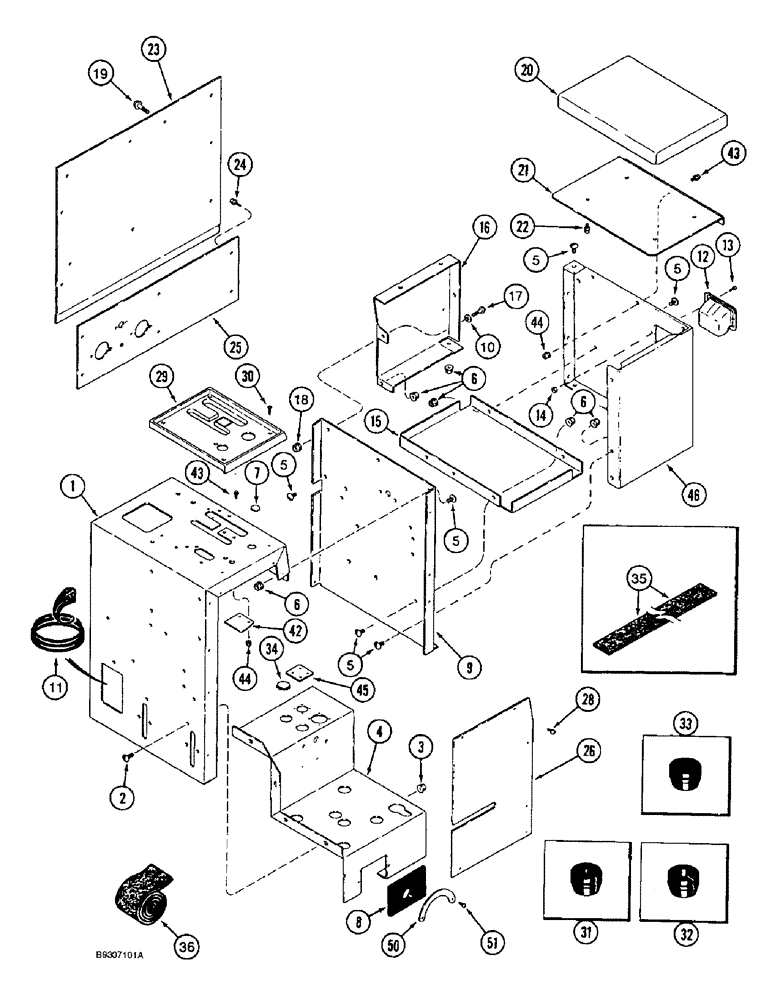

Запчасти Case IH 1666 (9G-20) - CAB, LEFT-HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

193065C9

BRACKET

SUPPORT left hand console, rear

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

1321719C3

SUPPORT

left hand console, lower

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

5

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

8

1345009C1

GROMMET

wiring harness

1шт.

9

1324177C2

PLATE

SUPPORT manual box, rear

1шт.

10

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

1шт.

11

87063C2

STRIP

TRIM edge, 16-5/16 inch (414 mm) long, cut from 1330108CX bulk

1шт.

12

A165449

ASH TRAY

cab

1шт.

13

489-1108

SCREW,Cross Oval Hd, #10"-32 x 1/2"

machine, oval Phillips No. 10 NF x 1/2 inch

2шт.

14

225-13210

NUT,#10-32

2шт.

15

1324176C1

PLATE

SUPPORT manual box, lower

1шт.

16

91878C3

SUPPORT

manual box cover, left hand

1шт.

17

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

slotted truss head, 1/4 NC x 1/2 inch

2шт.

17

1330155C1

BOLT,Hex Flg, 1/4" - 20 x 1/2"

self locking, hex flange, special, 1/4 NC x 1/2 inch

2шт.

18

1330157C1

FLANGE NUT

self locking, hex flange, special, 1/4 inch NC

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

self tapping, hex flange head, 1/4 NC x 3/4 inch

12шт.

20

98129C2

PANEL

trim, gray

1шт.

21

1329876C1

PLATE

COVER manual box

1шт.

22

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

4шт.

23

1327958C2

PLATE

COVER outer, left hand console

1шт.

24

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self tapping, hex washer head, 1/4 NC x 1/2 inch

16шт.

25

1283280C2

SUPPORT

connector panel, left hand console

1шт.

26

91776C2

PLATE

left hand inner console

1шт.

28

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

Polyseal

7шт.

29

1285417C2

COVER

console, left hand

1шт.

30

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self tapping, oval Phillips No. 10-16 x 3/4 inch

4шт.

31

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

rubber, 3/8 inch ID

3шт.

32

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

hydrostatic drive control cable, 3/4 inch ID

2шт.

33

198820C1

GROMMET

PLUG lower console

1шт.

34

192280

HOLE PLUG BUTTON,1 1/4"

1-1/4 inch ID

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk 600 inch (15240 mm) long

1шт.

35

187786C1

SEALING STRIP

SEAL adhesive backed, 23 inch (584 mm) long, cut from 195917C2 bulk, console cover

1шт.

35

1330167C1

SEAL adhesive backed, 4 inch (102 mm) long, cut from 195917C2 bulk

1шт.

35

1330168C1

SEAL adhesive backed, 18-1/8 inch (460 mm) long, cut from 195917C2 bulk console cover

1шт.

35

1330169C1

SEAL

adhesive backed, 10-5/16 inch (262 mm) long, cut from 195917C2 bulk console cover

1шт.

35

1330171C1

SEAL adhesive backed, 14 inch (356 mm) long, cut from 195917C2 bulkconsole cover

1шт.

35

1330170C1

SEAL adhesive backed, 7-5/8 inch (194 mm) long, cut from 195917C2 bulk console cover

1шт.

36

101301A1

TAPE insulation, 24 inch (610 mm) long, cut from 1954475C1 bulk outer console cover

1шт.

42

195239C2

BAR

H pattern filler plate

1шт.

43

1330155C1

BOLT,Hex Flg, 1/4" - 20 x 1/2"

hex, self locking, hex flange, special, 1/4 NC x 1/2 inch, black

3шт.

44

1330157C1

FLANGE NUT

hex, self locking, hex flange, special, 1/4 inch NC, black

3шт.

45

1330179C1

PLATE

COVER

1шт.

46

1979493C3

SUPPORT

manual box

1шт.

50

1999442C1

RETAINER

GROMMET

1шт.

51

1971376C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self tapping, pan Phillips No. 10-16 x 1 inch

2шт.

1954475C1

ROLL

TAPE bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.

195917C1

GASKET

SEAL bulk, foam, adhesive backed 600 inch (15240 mm) long

1шт.
