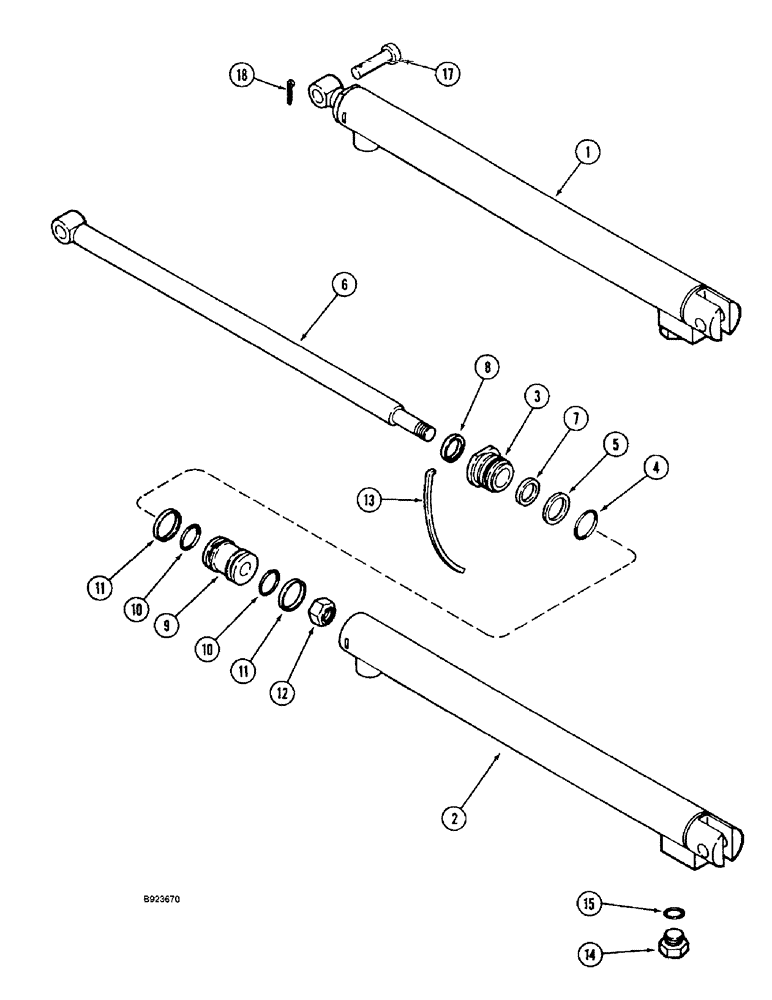

Запчасти Case IH 1666 (8-76) - UNLOADER TUBE SWING CYLINDER (07) - HYDRAULICS

1

1282488C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 508.2mm Stroke

hydraulic, swing, 1-1/2 (38) ID x 20 in. (508 mm) long, Includes: Ref. 2 thru 15

1шт.

1282488C92R

REMAN-HYD CYLINDER

1666 (1/93-12/94)

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE cylinder

1шт.

3

1252291C1

HEAD

GLAND cylinder. front

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING, 1-5/16 x 1-1/2 in., class 6

1шт.

Part includes gasket seal kit 1272677C94

1шт.

5

NSS

NOT SOLD SEPARAT

RING backup

1шт.

Part includes gasket seal kit 1272677C94

1шт.

6

1285720C1

ROD

piston

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL rod

1шт.

Part includes gasket seal kit 1272677C94

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

Part includes gasket seal kit 1272677C94

1шт.

9

1285719C1

PISTON

cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING, seal, 1-3/16 x 1-3/8 in., class 5

2шт.

Part includes gasket seal kit 1272677C94

1шт.

11

NSS

NOT SOLD SEPARAT

RING seal

2шт.

Part includes gasket seal kit 1272677C94

1шт.

12

9411658

LOCK NUT,5/8"-11, GC

hex, self locking, 5/8 in. NF, grade 8

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE retaining

1шт.

Part includes gasket seal kit 1272677C94

1шт.

14

9672438

PLUG,7/16" - 20 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING, 1/4 in., O.D. tube, class 6

1шт.

Part includes gasket seal kit 1272677C94

1шт.

17

28196R1

SPLIT PIN/SAFETY PIN

clevis, 5/8 x 2-1/4 in.

2шт.

18

432-816

COTTER PIN,1/8" x 1"

2шт.

1272677C94

SEAL KIT

seal, Includes Ref. 4, 5, 7, 8, 10, 11, 12 and 15

1шт.
