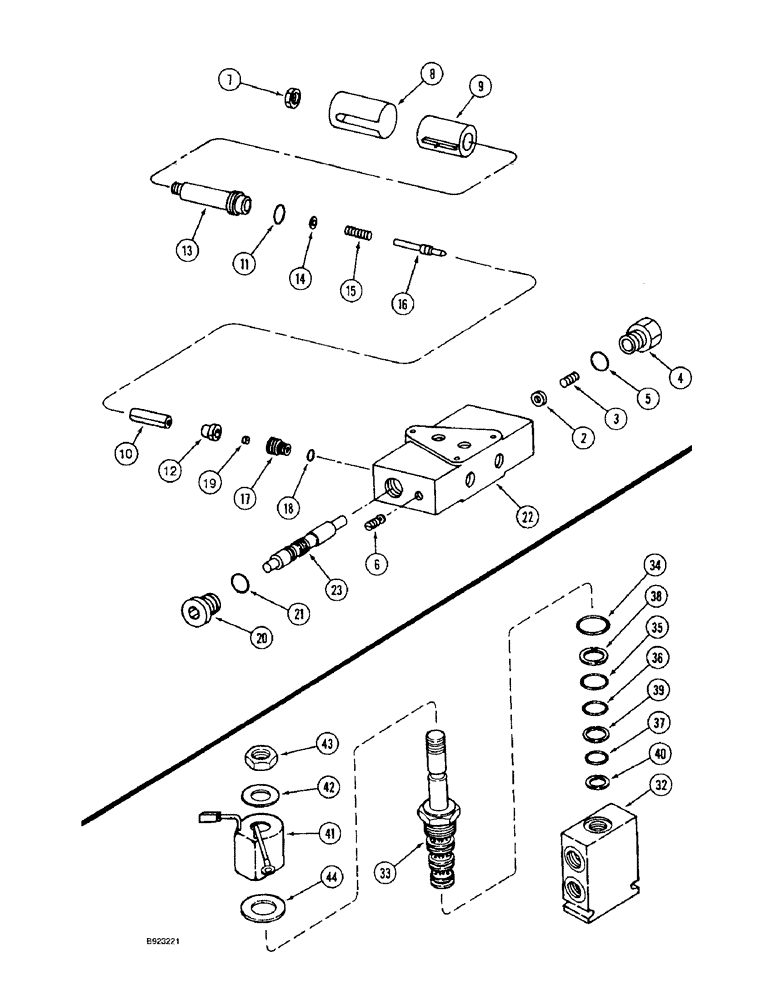

Запчасти Case IH 1666 (8-68) - FEEDER AND SEPARATOR CLUTCH VALVE, CONTROL CONCEPTS, MODULAR CONTROL (07) - HYDRAULICS

1301171C91

VALVE

ASSY., feeder and separator clutch, control concepts, Includes: Ref. 2 thru 23

1шт.

2

1301687C1

WASHER

RETAINER spring, control concepts

1шт.

3

1301728C1

SPRING

valve, control concepts

1шт.

4

1301686C1

CAP

PLUG hex, special, end, control concepts

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Control concepts

2шт.

6

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

PLUG, valve body, seal, control concepts

1шт.

7

107825

NUT,Stamped, 1/2"-20

hex, 1/2 in. NF, control concepts

1шт.

8

1301632C1

CAP

COVER coil, control concepts

1шт.

9

1301730C1

VALVE

COIL control concepts

1шт.

10

1301648C1

ARMATURE

valve, control concepts

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

Control concepts

1шт.

12

1301624C1

BUSHING

poppet, pole, control concepts

1шт.

13

1301627C1

STUD

SLEEVE poppet, valve, control concepts

1шт.

14

1301642C1

WASHER

spring, retaining, control concepts

1шт.

15

1301729C1

SPRING

poppet, control concepts

1шт.

16

1301647C1

POPPET

POPPET, control concepts

1шт.

17

1301625C1

ORIFICE

valve, control concepts

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Control concepts

1шт.

19

1301649C1

PLUG

PLUG orifice, control concepts

1шт.

20

86625138

PLUG,7/18" - 14

Control Concepts, Includes Ref. 21

1шт.

21

529909R1

O-RING,1.78mm Thk x 2.54mm ID

7/64 ID x 1/4 in. wide, control concepts

1шт.

22

NSS

NOT SOLD SEPARAT

BODY valve, control concepts

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL valve, control concepts

1шт.

187505C91

VALVE

ASSY., feeder and separator clutch, modular control, Includes: Ref. 32 thru 44

1шт.

32

187851C1

BODY

valve, modular control

1шт.

33

187849C1

SOLENOID VALVE

solenoid, 4 way, cartridge only, modular control

1шт.

187850C1

SEAL KIT

KIT seal replacement, O-ring and washer, modular control, Includes: Ref. 34 thru 40

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING, upper, modular control

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING, middle, large, modular control

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING, middle, small, modular control

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING, lower, modular control

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER, backup, large O-ring, modular control

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER, backup, small O-ring, modular control

1шт.

40

NSS

NOT SOLD SEPARAT

Part includes O-ring and service seal kit 63884C92

1шт.

187852C1

SWITCH

KIT solenoid coil, modular control, Includes: Ref. 41 thru 44

1шт.

41

NSS

NOT SOLD SEPARAT

COIL AND HOUSING ASSY., solenoid, modular control

1шт.

42

NSS

NOT SOLD SEPARAT

PLATE name, modular control

1шт.

43

NSS

NOT SOLD SEPARAT

NUT valve, modular control

1шт.

44

NSS

NOT SOLD SEPARAT

PLATE cover, modular control

1шт.
