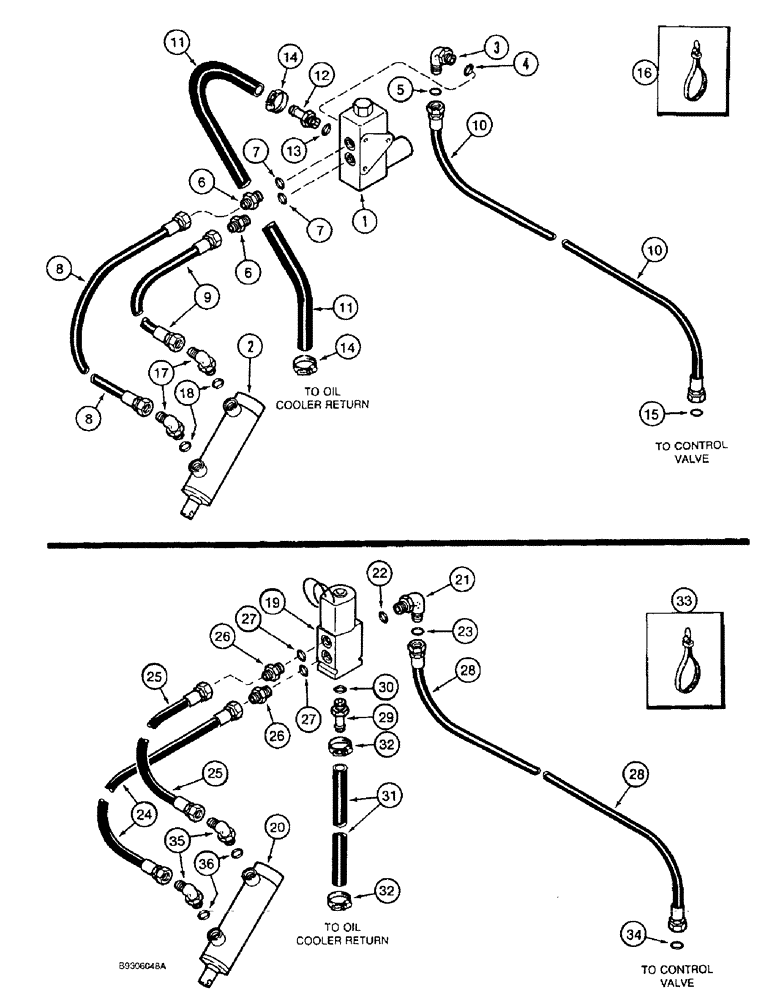

Запчасти Case IH 1666 (8-64) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS, MODULAR CONTROLS (07) - HYDRAULICS

1

1301171C91

VALVE

ASSY., feeder and separator clutch, see Fig. 8-68, control concepts

1шт.

2

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSY., separator clutch, 2, (51) ID x 12-1/2 in. (318 mm) stroke, control concepts

1шт.

3

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Control Concepts, Includes: Ref. 4 and 5

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Control concepts

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Control concepts, Incl. Ref. 7

2шт.

8

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

Separator clutch disengage, Control Concepts

1шт.

9

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

seperator clutch engage, 17 in. (432 mm) long, control concepts

1шт.

10

1541716C1

HOSE

seperator clutch pressure, 35 in. (890 mm) long, control concepts

1шт.

11

187619C2

HOSE

separator clutch return, 22 in. (559 mm) long, cut from 364357C1 bulk hose, see below, control concepts

1шт.

12

178036C1

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, special, beaded tube, hose, 3/8 in. barb end x 9/16 in. PT, control concepts, Includes: Ref. 13

1шт.

14

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable, Control concepts

2шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Control concepts

2шт.

16

702093C1

CABLE TIE

CABLE STRAP retaining, nylon, 3 in. maximum, control concepts

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg., 9/16-18 in. flare x adj. O-ring boss, control concepts, Includes: Ref. 18

2шт.

19

187505C91

VALVE

ASSY., feeder and separator clutch, see Fig. 8-68, modular controls

1шт.

20

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSY., separator clutch, 2 (51) ID x 12-1/2 in. (318 mm) stroke, modular controls

1шт.

21

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Modular Controls, Includes: Ref. 22 and 23

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Modular controls

1шт.

24

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

Separator clutch disengage, Modular Controls

1шт.

25

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

separator clutch engage, 17 in. (432 mm) long, modular controls

1шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Modular controls, Incl. Ref. 27

2шт.

28

1541716C1

HOSE

separator clutch pressure, 35 in.(890 mm) long, modular controls

1шт.

29

178036C1

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, hose, special, 3/8 in. barb end x 9/16 in. PT, modular controls, Includes: Ref. 30

1шт.

31

187619C2

HOSE

separator clutch return, 22 in. (559 mm) long, cut from 364357C1 bulk, see below, modular controls

1шт.

32

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable, Modular controls

2шт.

33

702093C1

CABLE TIE

CABLE STRAP retaining, nylon, 3 in. maximum, modular controls

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Modular controls

2шт.

35

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg., 9/16-18 in. flare x adj. O-ring boss, modular controls, Includes: Ref. 36

2шт.

364357C1

LARGE HOSE

HOSE,LARGE bulk, 3/8 (10) ID x 600 in. (1524 mm) long, used for Ref. 11 and 31, modular controls

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

15/16 ID x 4/64 in. wide, modular controls

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Control concepts

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Control concepts

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Control concepts

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Control concepts

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Modular controls

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Modular controls

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Modular controls

1шт.
