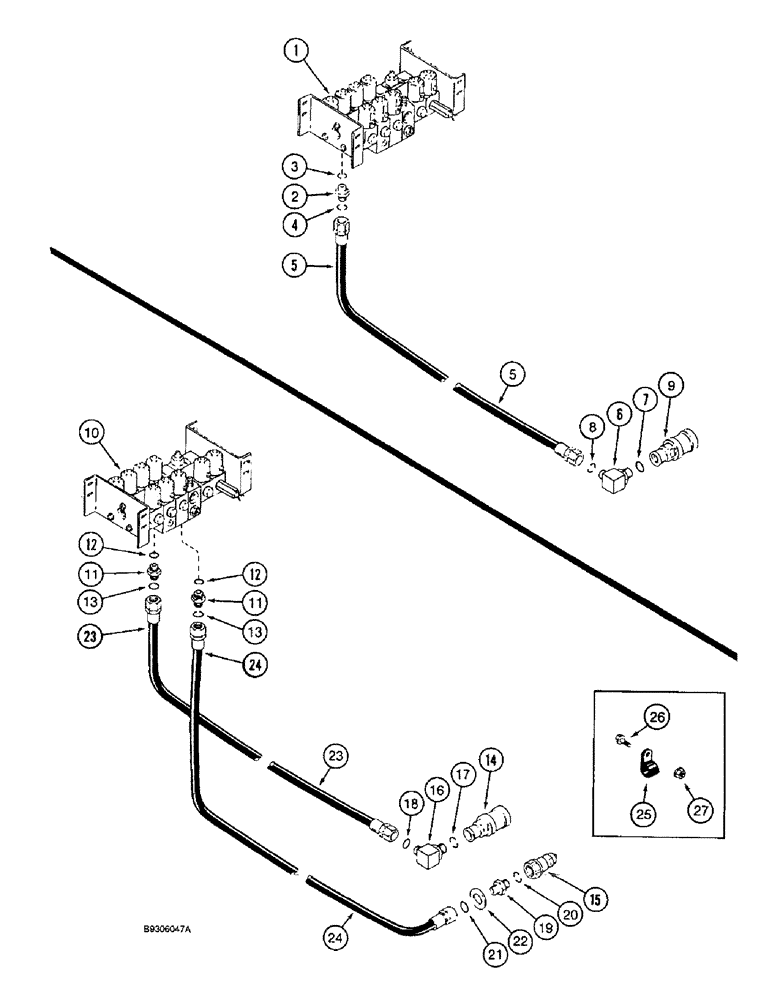

Запчасти Case IH 1666 (8-60) - REEL LIFT SYSTEM, REEL FORE AND AFT SYSTEM (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
107981A2
VALVE
ASSY., unload, single bi-directional, reel lift, see Fig. 8-40, reel lift system
1шт.
2
201-125
HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB
ADAPTER straight, 11/16-16 face seal x 7/16-20 in. O-ring boss, reel lift system, Includes: Ref. 3 and 4
1шт.
3
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
Reel lift system
1шт.
4
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel lift system
1шт.
5
1989470C1
HOSE
reel, left, 114 in. (2895 mm) long, reel lift system
1шт.
6
201-362
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB
ELBOW, 90 deg., 11/16-16 face seal x 7/8-14 in. adj. O-ring boss, reel lift system, Includes: Ref. 7 and 8
1шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Reel lift system
1шт.
8
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel lift system
1шт.
9
1282338C91
COUPLING, QUICK, FEM
self sealing, 7/8-14 in., reel lift system
1шт.
10
1267035C94
VALVE
ASSY., double piloted, prior to P.I.N. JJC105314, see Fig. 8-42, no longer available, order 1234857A1 valve, reel fore and aft syatem
1шт.
10
124857A1
VALVE
ASSY., double piloted, P.I.N. JJC 105314 and after, see Fig. 8-43A, reel for and aft syatem
1шт.
11
201-106
HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
ADAPTER straight, 11/16-16 face seal x 3/4-16 in. O-ring boss, reel fore and aft system, Includes: Ref. 12 and 13
2шт.
12
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Reel fore and aft system
1шт.
13
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel fore and aft system
1шт.
14
1282338C91
COUPLING, QUICK, FEM
self sealing, 7/8-14 in., reel fore and aft system
1шт.
16
201-362
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB
ELBOW, 90 deg., 11/16-16 face seal x 7/8-14 in. adj. O-ring boss, reel fore and aft system, Includes: Ref. 17 and 18
1шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Reel fore and aft system
1шт.
18
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel fore and aft system
1шт.
19
201-139
HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB
ADAPTER straight, 11/16-16 face seal x 7/8-14 in. O-ring boss, reel fore and aft system, Includes: Ref. 20 and 21
1шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Reel fore and aft system
1шт.
21
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel fore and aft system
1шт.
22
1541792C1
WASHER
lock, red, special, reel fore and aft system
1шт.
23
1989470C1
HOSE
reel lift, 114 in. (2895 mm) long, reel fore and aft system
1шт.
24
1989471C1
HOSE
reel aft, 150 in. (3810 mm) long, reel fore and aft system
1шт.
25
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
P type, Harness, Closed, Reel fore and aft system
1шт.
26
409-7612
BOLT,3/8"-16 x 1.09" OAL
Reel fore and aft system
1шт.
27
231-5146
FLANGE NUT,3/8"-16
Reel fore and aft system
1шт.
Выбрано товаров: 28
