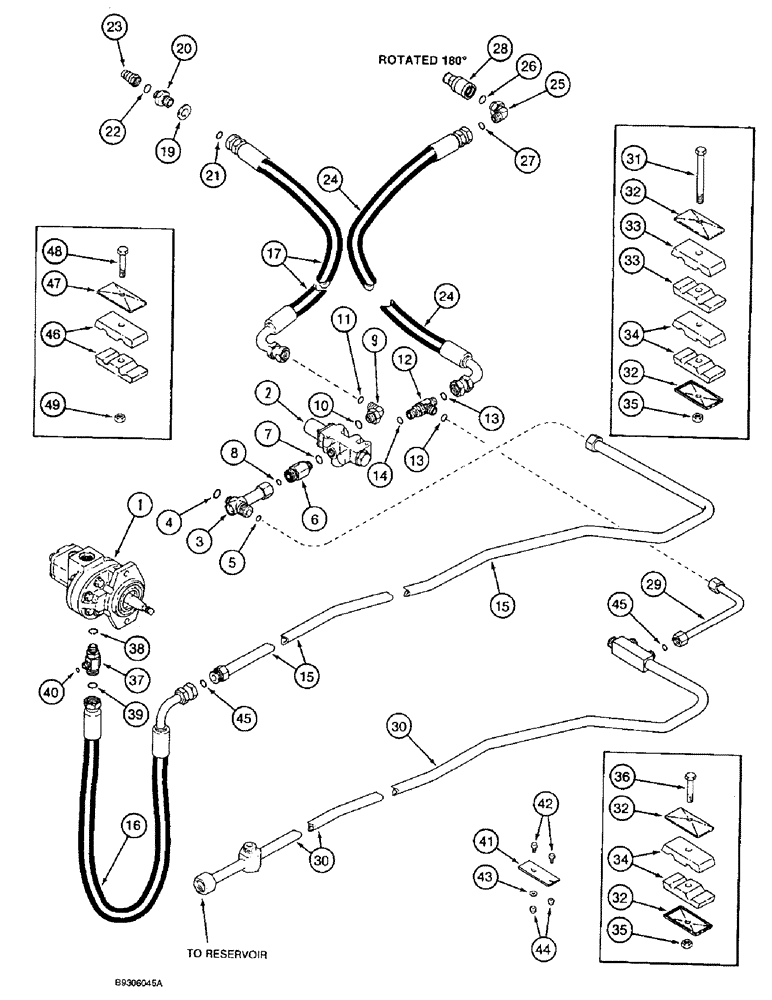

Запчасти Case IH 1666 (8-52) - REEL DRIVE SYSTEM (07) - HYDRAULICS

1

1994653C2

PUMP

ASSY., auxiliary drive, reel, see Fig. 8-56

1шт.

1994653C2R

REMAN-HYD PUMP

1666 (1/93 - 12/94)

1шт.

1994653C2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

1272619C93

VALVE

ASSY., hydraulic, reel drive, see Fig. 8-58

1шт.

3

1541633C2

TEE

special, branch, feeder clutch valve, Includes: Ref. 4 and 5

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

1541634C1

VALVE

ASSY., relief, pressure regulator, Includes: Ref. 7 and 8

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 deg., 1-14 face seal x 7/8-14 in. adj. O-ring boss, Includes: Ref. 10 and 11

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1-14 face branch x face x 7/8-14 in, adj. O-ring boss, Includes: Ref. 13 and 14

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

1541753C2

HYD TUBE,0.75" OD, 2225, 367 mm Length

reel drive valve supply, includes Ref. 45 O-ring

1шт.

16

1980050C2

HOSE,15.88mm ID x 737mm L

reel pump to valve, 29 in. (737 mm) long

1шт.

17

1989495C1

HOSE

reel motor supply, 136 in. (3455 mm) long

1шт.

19

1345266C1

WASHER

lock, white, special

1шт.

20

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 21 and 22

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 in. NF

1шт.

24

1989496C1

HOSE

reel drive motor return, 102-1/2 in. (2605 mm) long

1шт.

25

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 deg., 1-14 face seal x 7/8-14 in. adj. O-ring boss, Includes: Ref. 26 and 27

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5/8 ID x 1/16 in. wide

1шт.

28

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 in.

1шт.

29

1989476C1

HYD TUBE

TUBE return, reel drive

1шт.

30

1989283C1

HYD TUBE

valve return

1шт.

31

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

BOLT hex, 5/16 NC x 4 in., grade 2

1шт.

32

1347127C1

PLATE

clamp, hose

4шт.

33

1347072C1

CLAMP

tube, 3/4 in. O.D.

1шт.

34

1989362C1

CLAMP

tube, two piece

3шт.

35

231-4115

NUT,5/16"-18, GB

2шт.

36

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

37

1541827C1

TEE

seperator clutch, special, Includes: Ref. 38, 39, and 40

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

196868C2

SUPPORT

PLATE

1шт.

42

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

43

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

45

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

46

1541538C1

CLAMP

two piece, 3/4 in. O.D. tube

1шт.

47

1541537C1

PLATE

clamp

1шт.

48

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

49

231-4144

NUT,1/4"-20, GB

2шт.
