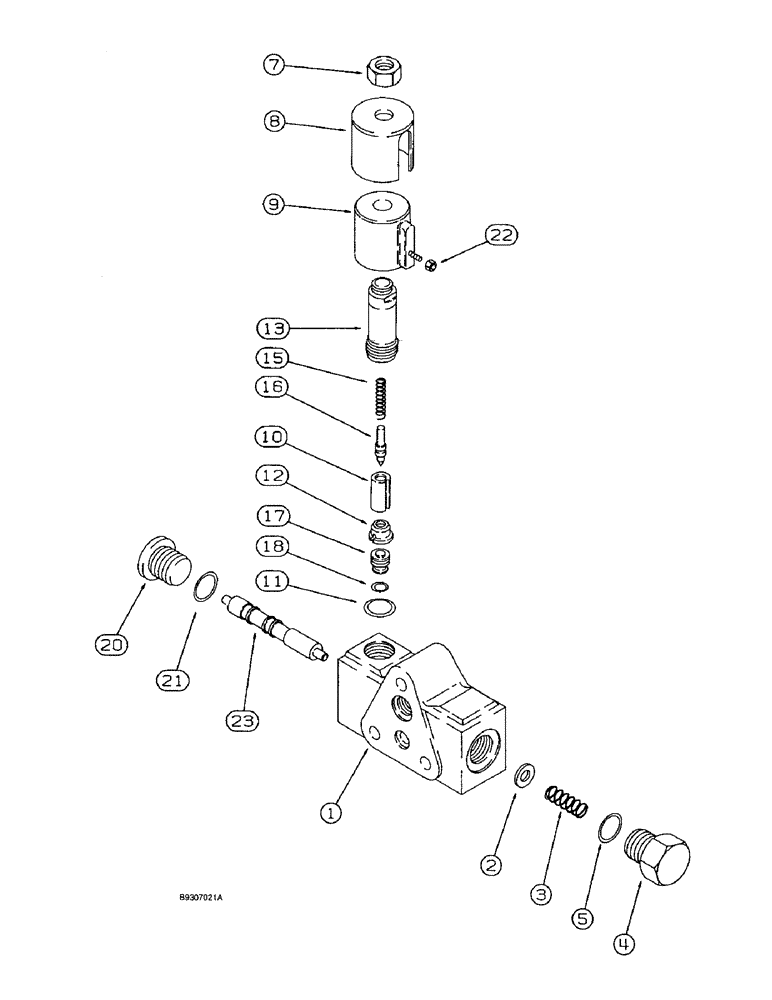

Запчасти Case IH 1666 (8-50) - FEEDER CLUTCH VALVE (07) - HYDRAULICS

1542681C1

VALVE

ASSY., feeder clutch, Includes: Ref. 1 thru 23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

1301687C1

WASHER

RETAINER spring

1шт.

3

107960A1

SPRING

poppet

1шт.

4

1301686C1

CAP

PLUG hex, special, end

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

107825

NUT,Stamped, 1/2"-20

hex, 1/2 in. NF

1шт.

8

1301632C1

CAP

COVER coil

1шт.

9

1301730C1

VALVE

COIL

1шт.

10

1301648C1

ARMATURE

valve, support

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

12

1301624C1

BUSHING

poppet, pole

1шт.

13

1301627C2

SLEEVE

poppet

1шт.

14

1301642C1

WASHER

spring, retaining, backup

1шт.

15

1301640C1

SPRING

poppet

1шт.

16

110550A1

VALVE POPPET

1шт.

17

1301625C1

ORIFICE

valve

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

20

86625138

PLUG,7/18" - 14

Includes Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

225-20210

NUT,#10-32, Brass

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.
