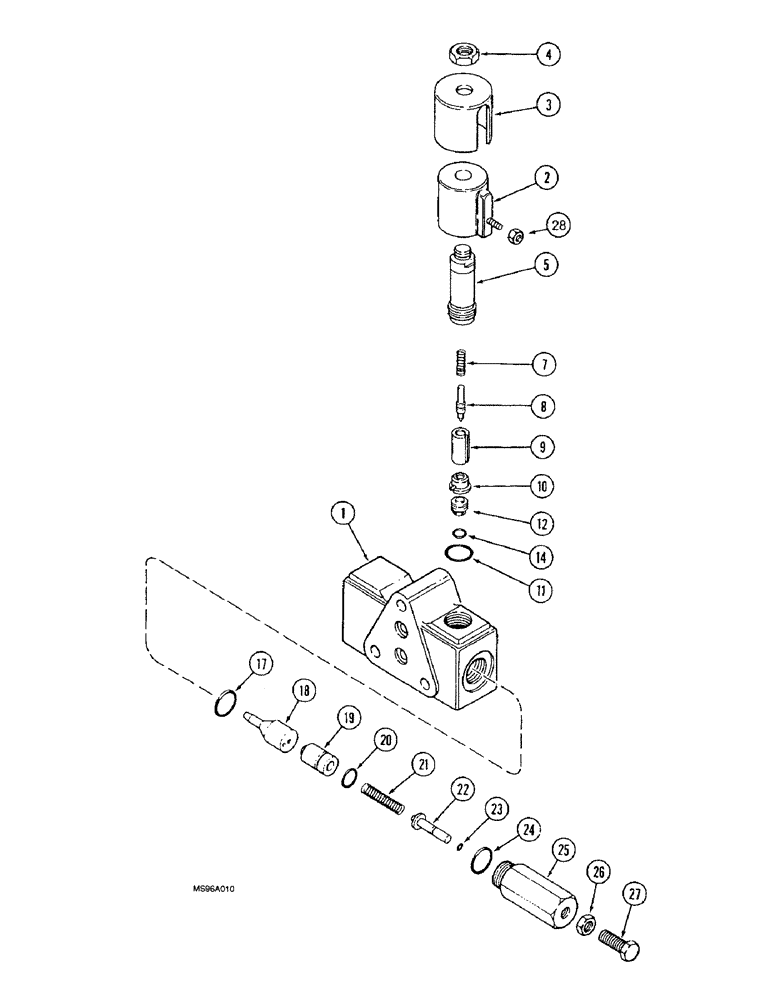

Запчасти Case IH 1666 (8-48) - HEADER LOWER VALVE (07) - HYDRAULICS

1542680C3

VALVE

ASSY., header lower, replaces 1542680C2, Includes: Ref. 1 thru 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

1301730C1

VALVE

COIL

1шт.

3

1301632C1

CAP

COVER coil

1шт.

4

107825

NUT,Stamped, 1/2"-20

hex, 1/2 in. NF

1шт.

5

1301627C3

SLEEVE

poppet

1шт.

7

1301640C1

SPRING

poppet

1шт.

8

1301647C1

POPPET

poppet

1шт.

9

1301648C1

ARMATURE

valve, support

1шт.

10

1301624C1

BUSHING

poppet, pole

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

12

1301625C1

ORIFICE

valve

1шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

17

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

1шт.

18

107951A3

VALVE POPPET

replaces 107951A2

1шт.

19

1301665C1

PISTON

POPPET

1шт.

20

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

21

1301660C1

SPRING

poppet

1шт.

22

107963A1

RETAINER

PLUNGER adjusting

1шт.

23

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

107958A1

PLUG

adjusting

1шт.

26

329-156

JAM NUT,Jam, 3/8"-24, G8

1шт.

27

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

BOLT hex, 3/8 NF x 1 in.

1шт.

28

225-20210

NUT,#10-32, Brass

1шт.
