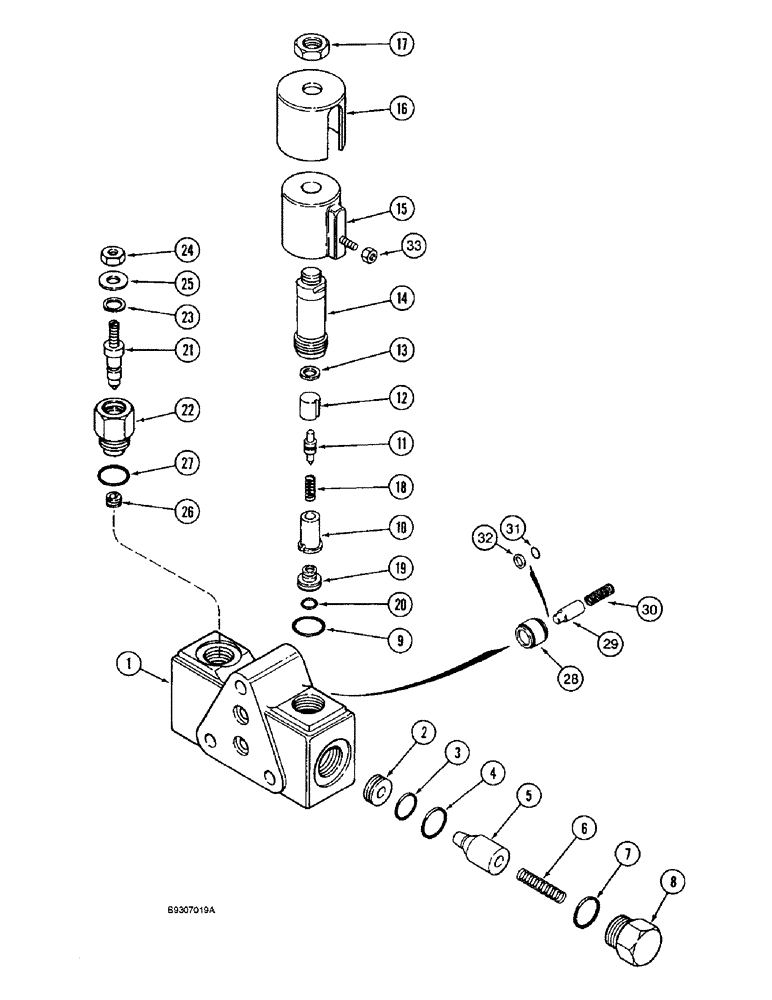

Запчасти Case IH 1666 (8-46) - HEADER LIFT VALVE (07) - HYDRAULICS

1542679C2

VALVE

ASSY., header lift, Includes: Ref. 1 thru 33

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

1301657C1

PISTON

ORIFICE valve, poppet

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

2шт.

5

107956A1

VALVE POPPET

piston

1шт.

6

1301660C1

SPRING

poppet

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

1301661C1

PLUG

hex

1шт.

9

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

10

1301646C2

BUSHING,6.35mm ID x 15.88mm OD x 25.8mm L

poppet, pole

1шт.

11

1301644C2

SPOOL

valve

1шт.

12

1301643C1

VALVE

ARMATURE

1шт.

13

1301642C1

WASHER

spring, retaining, backup

1шт.

14

1301641C2

TRANSMISSION SLEEVE

poppet

1шт.

15

1301730C1

VALVE

COIL

1шт.

16

1301632C1

CAP

COVER coil

1шт.

17

107825

NUT,Stamped, 1/2"-20

hex, 1/2 in. NF

1шт.

18

1301821C1

SPRING

poppet

1шт.

19

107965A1

PORT

ORIFICE valve

1шт.

20

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

21

107953A1

NEEDLE

OVERRIDE ASSY., manual, includes O-ring and backup ring

1шт.

22

107955A1

PLUG

GUIDE valve

1шт.

23

L31750

CIRCLIP,0.562", Int, #56

0.562", Int, #56

1шт.

24

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

25

107969A1

WASHER

flat, special

1шт.

26

107962A1

SEAT

valve

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE through, valve

1шт.

29

107957A1

VALVE POPPET

1шт.

30

107959A1

SPRING

poppet

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup

1шт.

33

225-20210

NUT,#10-32, Brass

1шт.
