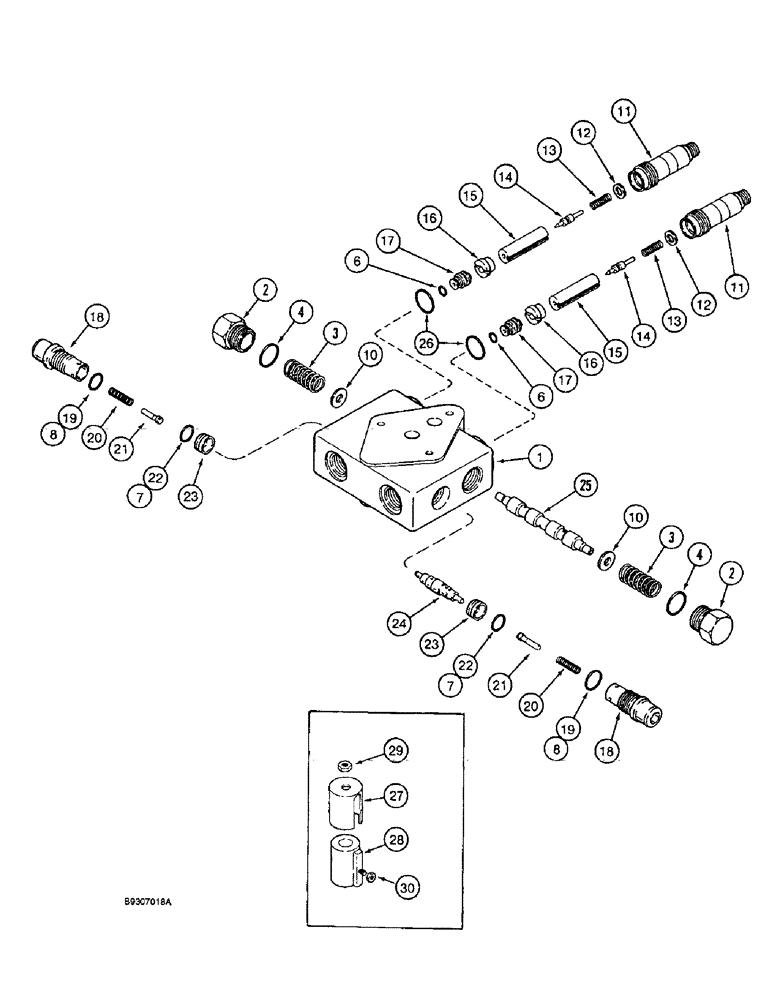

Запчасти Case IH 1666 (8-43A) - DOUBLE PILOTED VALVE, 124857A1, FOR UNLOADER AUGER SWING & REEL FOR AND AFT, PIN JJC105314 AND AFTER (07) - HYDRAULICS

124857A1

VALVE

ASSY., double piloted, Includes: Ref. 1 thru 30, Start Serial: JJC105314

2шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

100475A1

PLUG

end cap

2шт.

3

100474A1

SPRING

centering, plug

2шт.

1282278C2

SEAL KIT

valve, seal, Includes: Ref. 4 thru 9

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

Not used in this application, not shown

2шт.

6

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

10

1301687C1

WASHER

RETAINER spring

2шт.

11

1301627C2

SLEEVE

poppet, valve

2шт.

12

1301642C1

WASHER

spring, retaining

2шт.

13

1301640C1

SPRING

poppet, sleeve

2шт.

14

110550A1

VALVE POPPET

2шт.

15

1301648C1

ARMATURE

valve

2шт.

16

1301624C1

BUSHING

poppet, pole

2шт.

17

1301625C1

ORIFICE

valve

2шт.

18

124775A1

CAP

BODY check valve

2шт.

19

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

2шт.

20

1272887C1

SPRING

poppet

2шт.

21

124771A1

VALVE POPPET

2шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

1267163C1

WASHER

valve

2шт.

24

124777A1

SPOOL

shuttle

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

26

238-8019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 8, 90 Duro

2шт.

27

1301632C1

CAP

COVER coil

2шт.

28

1301633C1

COIL

valve

2шт.

29

107825

NUT,Stamped, 1/2"-20

hex, 1/2 in. NF

2шт.

30

225-20210

NUT,#10-32, Brass

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not used in this application, not shown

1шт.
