Запчасти Case IH 1666 (8-42) - DOUBLE PILOTED VALVE,1267035C94, FOR UNLOADER AUGER SWING & REEL FORE AND AFT,PRIOR TO PIN JJC105314 (07) - HYDRAULICS

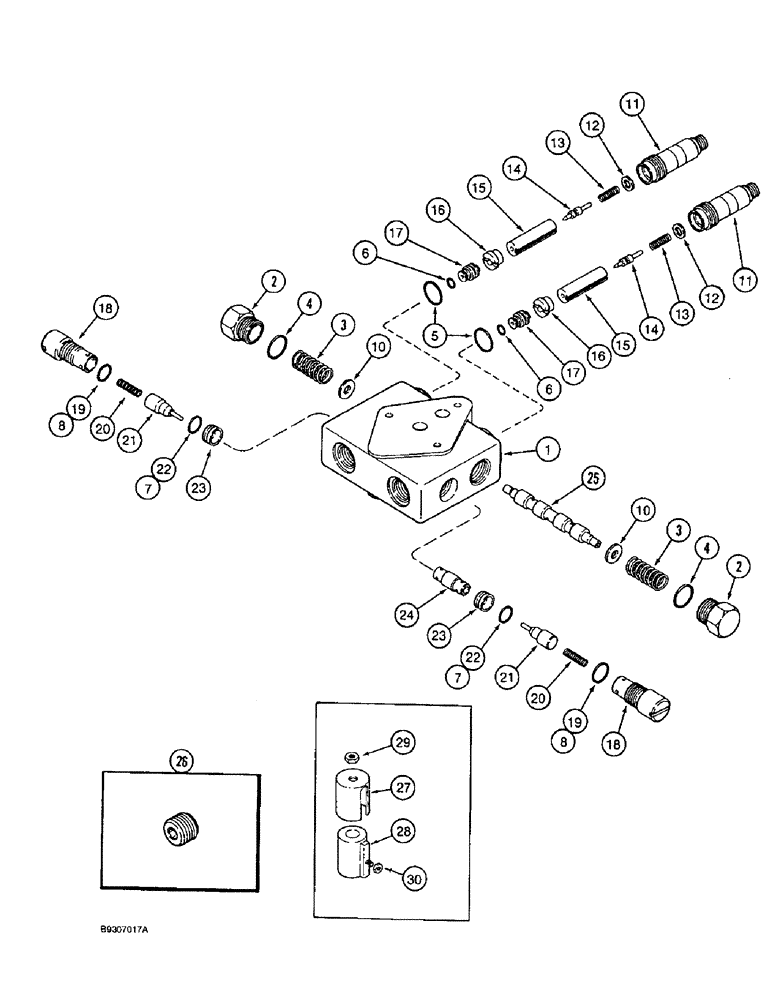

Схема запчастей Case IH 1666 - (8-42) - DOUBLE PILOTED VALVE,1267035C94, FOR UNLOADER AUGER SWING & REEL FORE AND AFT,PRIOR TO PIN JJC105314 (07) - HYDRAULICS
21
10
12
5
15
1
11
29
2
23
19
22
7
20
2
21
28
18
26
19
16
25
18
11
17
3
6
12
13
6
15
10
4
24
8
14
1
4
14
3
16
30
20
17
22
7
8
27
23

Артикул

Название

Примечание

Количество

1267035C94

VALVE

ASSY., double piloted, no longer available, order 124857A1 valve shown on Fig. 8-43A, Includes: Ref. 1 thru 30, Serial Range: -JJC105314

2шт.

1

NSS

NOT SOLD SEPARAT

BODY valve, order 124857A1 valve shown on Fig. 8-42A

1шт.

2

1301686C1

CAP

PLUG hex, special, end

2шт.

3

1301689C1

SPRING

spool, plug

2шт.

1282278C2

SEAL KIT

valve seal, Includes: Ref. 4 thru 9

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

6

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

10

1301687C1

WASHER

RETAINER spring

2шт.

11

1301627C2

SLEEVE

poppet, valve

2шт.

12

1301642C1

WASHER

spring, retaining

2шт.

13

1301640C1

SPRING

poppet, sleeve

2шт.

14

110550A1

VALVE POPPET

2шт.

15

1301648C1

ARMATURE

valve

2шт.

16

1301624C1

BUSHING

poppet, piole

2шт.

17

1301625C1

ORIFICE

valve

2шт.

1986831C2

PACKAGE

VALVE ASSY., cross check, Includes: Ref. 18 - 23

2шт.

18

NSS

NOT SOLD SEPARAT

BODY check valve

1шт.

19

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

21

1267160C2

VALVE

POPPET

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT valve

1шт.

24

1267162C1

VALVE

POOL shuttle

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL valve, order 124857A1 valve shown on Fig. 8-43A

1шт.

26

1301637C1

ORIFICE

ORIFICE valve

2шт.

27

1301632C1

CAP

hex, 1/2 in. NF

2шт.

28

1301633C1

COIL

valve

2шт.

29

107825

NUT,Stamped, 1/2"-20

hex, 1/2 in. NF

2шт.

30

225-20210

NUT,#10-32, Brass

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not used in this application, not shown

1шт.

Выбрано товаров: 33
