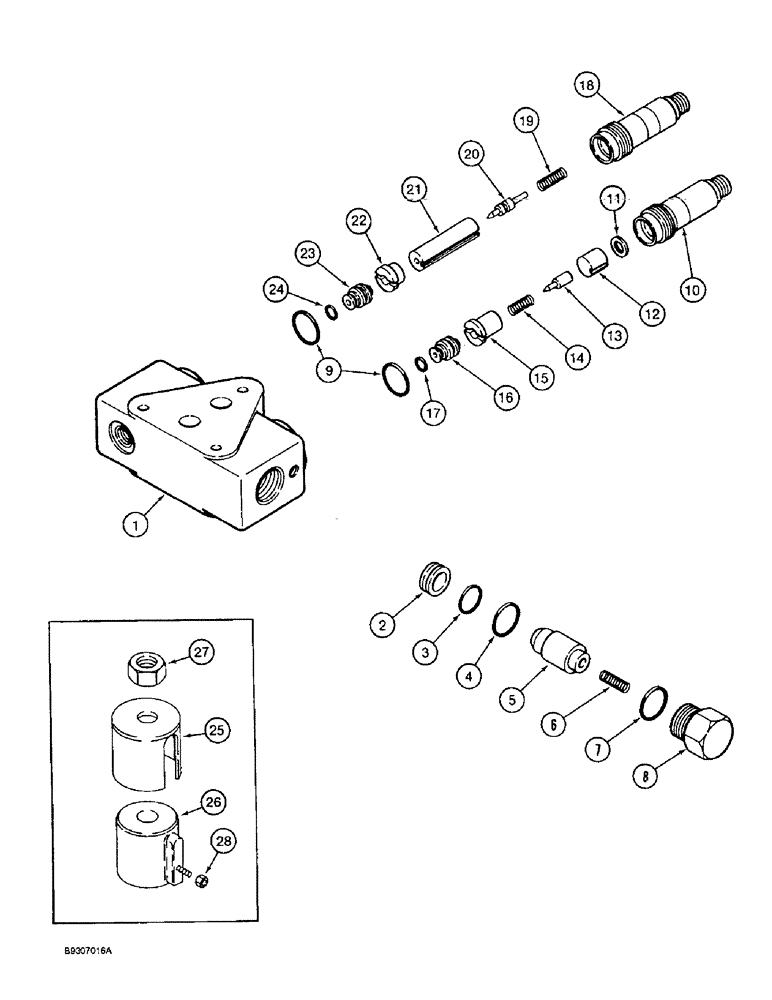

Запчасти Case IH 1666 (8-40) - UNLOAD/SINGLE BI-DIRECTIONAL VALVE, FOR REEL LIFT (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
107981A2
VALVE
ASSY., unload/single, bi-directional, reel lift, Includes: Ref. 1 thru 28
1шт.
1
NSS
NOT SOLD SEPARAT
BODY valve
1шт.
2
107966A1
SEAT
poppet
1шт.
3
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
Part includesvalve seal kit 1282280C1
1шт.
4
238-5018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro
1шт.
Part includesvalve seal kit 1282280C1
1шт.
5
107970A1
VALVE POPPET
1шт.
6
107967A1
SPRING
poppet
2шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Part includesvalve seal kit 1282280C1
1шт.
8
107968A1
PLUG
hex, special, end
1шт.
9
238-6019
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
2шт.
Part includesvalve seal kit 1282280C1
1шт.
107972A1
VALVE
SOLENOID ASSY., normally open, Includes: Ref. 10 thru 17
1шт.
10
1301641C2
TRANSMISSION SLEEVE
poppet, solenoid valve
1шт.
11
1301642C1
WASHER
spring, retaining
1шт.
12
1301643C1
VALVE
ARMATURE
1шт.
13
1301644C1
PIN
POPPET valve, Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement
1шт.
14
1301821C1
SPRING
poppet
1шт.
15
1301646C1
BUSHING
poppet, armature
1шт.
16
1301639C1
PISTON
ORIFICE valve, 0.022 in. opening
1шт.
17
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1шт.
Part includesvalve seal kit 1282280C1
1шт.
112988A1
VALVE
SOLENOID ASSY., normally closed, Includes: Ref. 18 thru 28
1шт.
18
1301627C1
STUD
SLEEVE poppet, solenoid valve
1шт.
19
1301640C1
SPRING
poppet, sleeve
1шт.
20
110550A1
VALVE POPPET
1шт.
21
1301648C1
ARMATURE
valve
1шт.
22
1301624C1
BUSHING
poppet, armature
1шт.
23
1346430C1
RESTRICTOR
ORIFICE valve, 0.062 in. opening
1шт.
24
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1шт.
Part includesvalve seal kit 1282280C1
1шт.
25
1301632C1
CAP
COVER coil
2шт.
26
1301633C1
COIL
valve
2шт.
27
107825
NUT,Stamped, 1/2"-20
hex, 1/2 in. NF
2шт.
28
225-20210
NUT,#10-32, Brass
2шт.
1282280C1
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
KIT valve seal, Includes: Ref. 3, 4, 7, 9, 17 and 24, Also includes 1 of 529909R1 O-ring, not used in this application
1шт.
Выбрано товаров: 38
