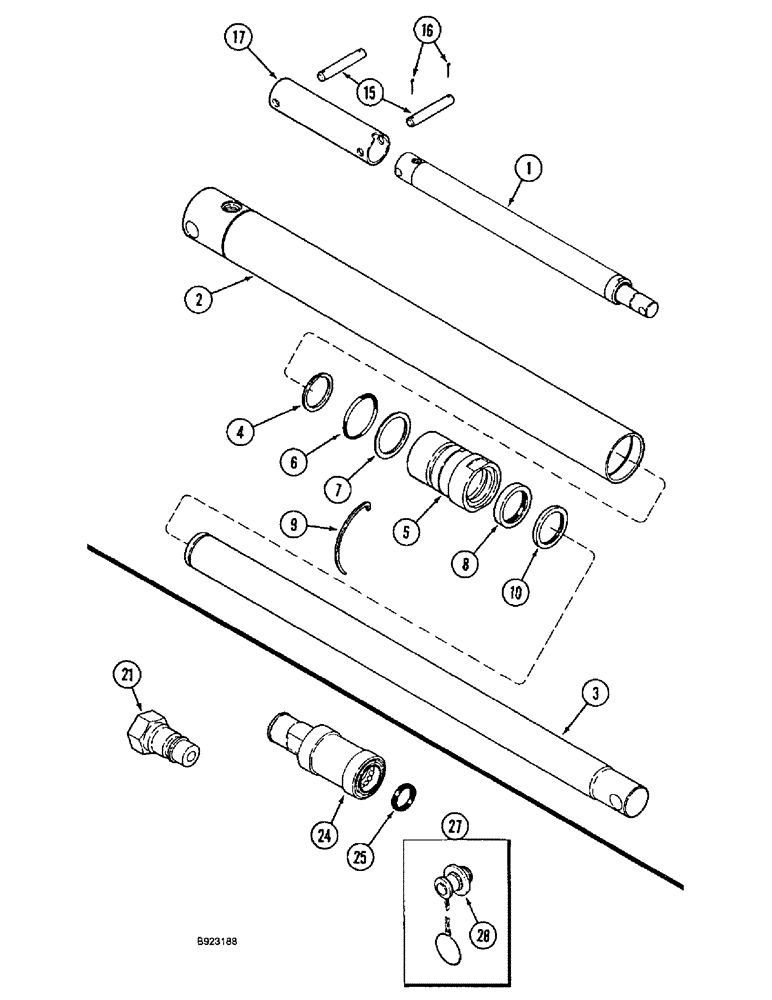

Запчасти Case IH 1666 (8-34) - HEADER LIFT CYLINDER, HYDRAULIC COUPLINGS (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY., header lift, Includes: Ref. 2 thru 10

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1666 CASE IH AXIAL-FLOW COMBINE, Assy., header lift (1/93-12/94)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY cylinder, header lift cylinder

1шт.

3

127780C2

ROD

PISTON header lift cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING stop, piston rod, header lift cylinder

1шт.

5

142568C2

HEAD

GLAND cylinder, front, header lift cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

O RING, front head, 2-1/2 x 2-11/16 in., header lift cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER, O-ring backup, header lift cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, piston rod, header lift cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

RING retaining, header lift cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER, piston rod, header lift cylinder

1шт.

224718C92

SEAL KIT

KIT

1шт.

15

573762R1

PIN,25.4mm OD x 130.97mm L

header lift cylinder, 1 x 5-5/32 in.

1шт.

15

195822C1

PIN,25.4mm OD x 228.6mm L

header lift cylinder, 1 x 9 in.

1шт.

16

432-1628

COTTER PIN,1/4" x 1 3/4"

Header lift cylinder

1шт.

17

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

cylinder extension lift, for 54 in. feeder, header lift cylinder

1шт.

17

1319896C1

SUPPORT ASSY.

SLEEVE, lift cylinder extension, for 47-1/2 in. feeder, header lift cylinder

1шт.

21

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 in. NF, hydraulic

1шт.

24

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 in., hydraulic, Includes: Ref. 25

1шт.

25

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING sealing, included with 1282338C91, hydraulic couplings

1шт.

27

1954133C1

PLUG

coupling, dust, hydraulic, Includes: Ref. 28

1шт.

28

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, hydraulic couplings

1шт.
