Запчасти Case IH 1666 (8-22) - AUXILIARY OIL COOLER, RICE COMBINE ONLY (07) - HYDRAULICS

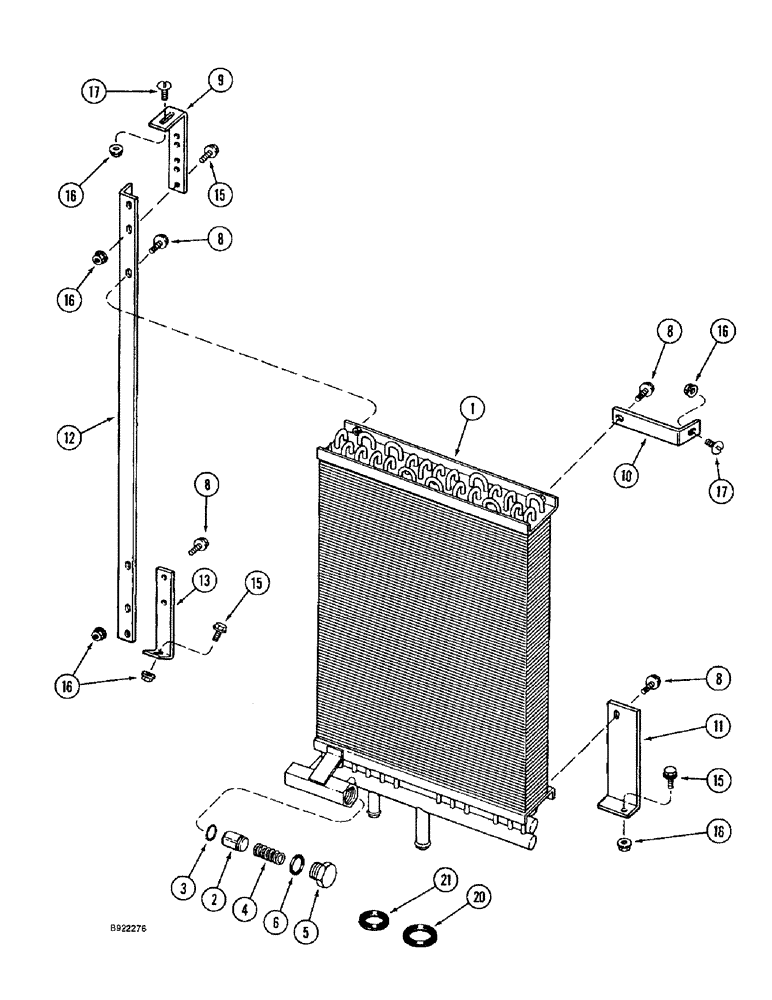

Схема запчастей Case IH 1666 - (8-22) - AUXILIARY OIL COOLER, RICE COMBINE ONLY (07) - HYDRAULICS
11
17
16
16
15
2
8
13
8
16
8
16
17
5
4
3
10
16
15
15
20
8
9
21
1
12
6

Артикул

Название

Примечание

Количество

1

84659C3

OIL COOLER

ASSY., oil hydraulic, auxiliary, Includes: Ref. 2 thru 6

1шт.

2

93198C1

VALVE

bypass

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

1шт.

4

A189029

SPRING

bypass valve

1шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

9

1979632C2

SUPPORT

oil cooler, upper left hand

1шт.

10

1979674C1

SUPPORT

oil cooler, upper right hand

1шт.

11

1979787C2

SUPPORT

oil cooler, lower right hand

1шт.

12

1979633C2

SUPPORT

oil cooler strap, left hand

1шт.

13

1979727C1

SUPPORT

oil cooler, lower left hand

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

20

1970461C1

GROMMET

rubber, 1-3/8 x 2 x 5/16, 1-12 x 1-1/8 x 7/16 in.

2шт.

21

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

1-1/8 x 1-3/4 x 7/16 in.

2шт.

Выбрано товаров: 17
