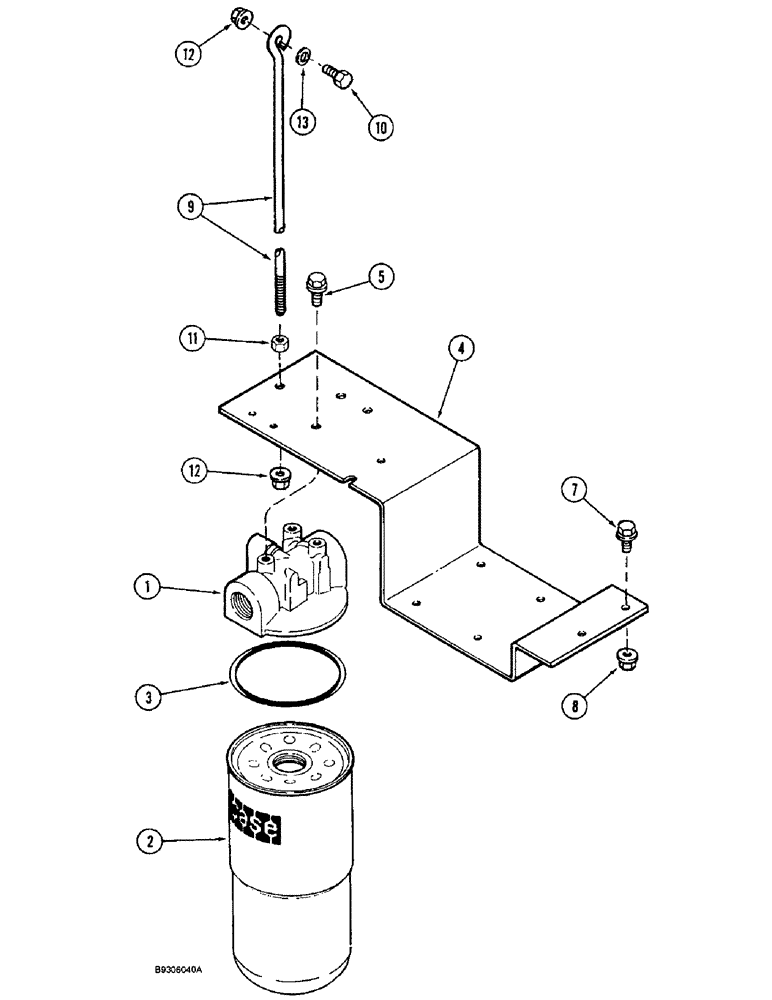

Запчасти Case IH 1666 (8-08) - HYDRAULIC SYSTEM RETURN FILTER, CORN, GRAIN AND RICE COMBINE, FILTER MOUNTING (07) - HYDRAULICS

87784C91

FILTER ASSY

hydraulic system return, used with corn, grain and rice units, Includes: Ref. 1, 2, and 3

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, part of kit 1329214C1, see below

1шт.

2

A177605

HYDRAULIC OIL FILTER

element

1шт.

Part of filter element kit 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET filter element

1шт.

Part of filter element kit 1329214C1

1шт.

4

1989296C3

SUPPORT

BRACKET mounting, return filter

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

Return filter mounting

3шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Return filter mounting

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

1541545C2

STEM

ROD, return filter mounting

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Return filter mounting

1шт.

11

425-106

NUT,3/8"-16, Cl 5

Return filter mounting

1шт.

12

231-5146

FLANGE NUT,3/8"-16

Return filter mounting

2шт.

13

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 in., return filter mounting

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT filter element, Includes: Ref. 2 & 3

1шт.
