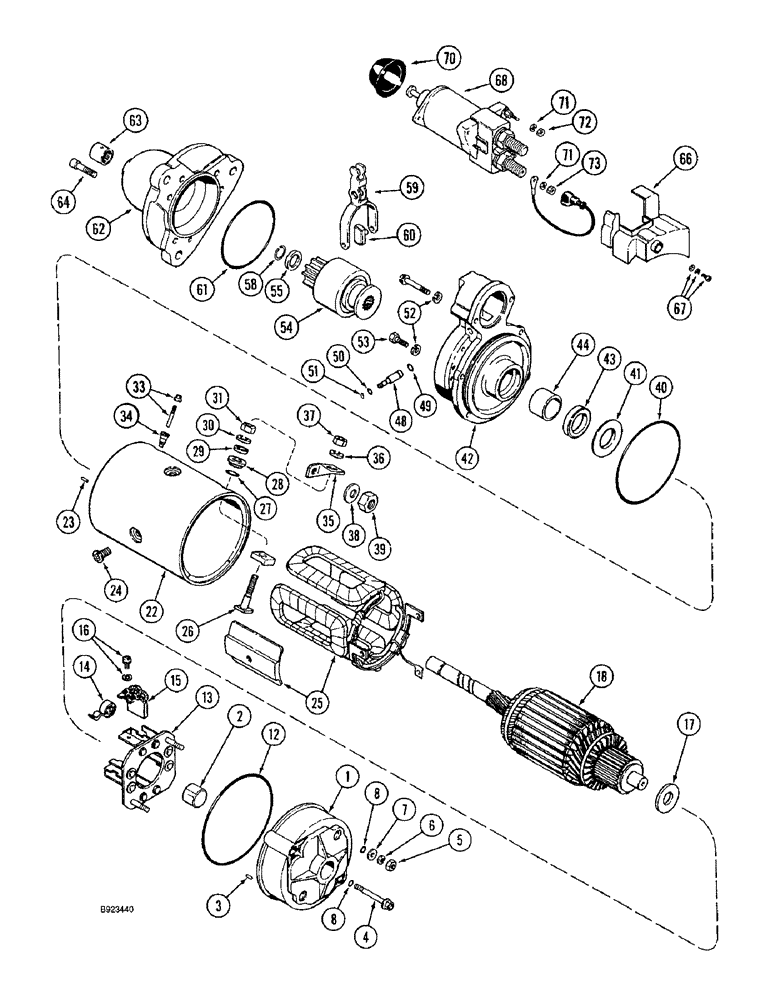

Запчасти Case IH 1666 (4-50) - STARTER ASSEMBLY (06) - ELECTRICAL

A187728

STARTING MOTOR

ASSEMBLY engine, Nippodenso 128000-5330, Includes: Ref. 1 thru 53

1шт.

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

AC187728

CORE-STARTER

Return Part Number

1шт.

87297380

REMAN-STARTER

Starter

1шт.

87297381

CORE-STARTER

Return Part Number

1шт.

A187728GV

STARTER MOTOR

Value

1шт.

1

A187851

HOUSING

FRAME ASSEMBLY end, commutator, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING needle

1шт.

3

NSS

NOT SOLD SEPARAT

PIN dowel, locating

1шт.

4

845-6060

BOLT,Hvy Hex, M6 x 60mm, Cl 8.8

BOLT heavy hex flange, 6 - 1.0 x 60 mm

2шт.

5

825-2306

FLANGE NUT,M6 x 1, Flg, Cl 8

hex flange, 6 mm - 1

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER lock, 6 mm

2шт.

7

NSS

NOT SOLD SEPARAT

WASHER flat, 6 mm

2шт.

8

A187857

O-RING,5.8 mm ID x 1.9 mm

sealing

4шт.

12

NSS

NOT SOLD SEPARAT

O-RING frame

1шт.

13

A187852

BRUSH HOLDER

HOLDER, BRUSH ASSEMBLY, Includes: Ref. 14

1шт.

14

A187823

SPRING

brush

4шт.

15

A187794

BRUSH, COMMUTATOR

BRUSH starter

4шт.

16

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

slotted, includes lock washer, 5 - 0.8 x 12 mm

4шт.

17

A47813

WASHER

end, armature

1шт.

18

A187847

ARMATURE

starter

1шт.

22

A187846

HOUSING ASSY.

field coil, Includes: Ref. 23 thru 33

1шт.

23

NSS

NOT SOLD SEPARAT

PIN dowel, locating

2шт.

24

NSS

NOT SOLD SEPARAT

SCREW retainer, coil

4шт.

25

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY field

1шт.

26

NSS

NOT SOLD SEPARAT

TERMINAL field

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING terminal

1шт.

28

NSS

NOT SOLD SEPARAT

BUSHING insulation

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER flat plate

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

31

NSS

NOT SOLD SEPARAT

NUT hex, terminal

1шт.

33

NSS

NOT SOLD SEPARAT

STUD field terminal assembly

1шт.

34

A187862

FLANGE NUT

hex, terminal

1шт.

35

A187858

FITTING

CONNECTOR, terminal B

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

38

A187859

WASHER

wave

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING sealing, housing

1шт.

41

A187860

WASHER

plate, armature

1шт.

42

A187850

HOUSING

ASSEMBLY lever, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL oil, housing

1шт.

44

NSS

NOT SOLD SEPARAT

BEARING housing

1шт.

48

A187865

KIT

pin, lever

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING pin, large

1шт.

50

NSS

NOT SOLD SEPARAT

O-RING pin, small

1шт.

51

NSS

NOT SOLD SEPARAT

RING snap, pin

1шт.

52

A49815

LOCK WASHER

lock, bolt

4шт.

53

A187861

BOLT,Hex, M7 x 23mm

BOLT hex, housing 7 x 23 mm

4шт.

54

A187848

CLUTCH ASSEMBLY

starter drive

1шт.

55

A187855

NUT

pinion stop

1шт.

58

A47790

RING, SNAP

RING SNAP, Serial Range: collar-shaft

1шт.

59

A187853

LEVER

ASSEMBLY clutch, starter, Includes: Ref. 60

1шт.

60

A187854

WEAR PAD

lever

2шт.

61

A47786

SEAL

clutch housing

1шт.

62

A187849

HOUSING

ASSEMBLY clutch drive, Includes: Ref. 63

1шт.

63

NSS

NOT SOLD SEPARAT

BEARING needle

1шт.

64

A187856

BOLT,Hex, M7 x 24.50mm

BOLT hex, special, drive housing

6шт.

66

A187864

COVER

KIT anti-bypass start, terminal, Includes: Ref. 67

1шт.

67

NSS

NOT SOLD SEPARAT

SCREW cover, includes lock and flat washer

1шт.

68

A187863

SOLENOID SWITCH

ASSEMBLY magnetic, Includes: Ref. 69 thru 73

1шт.

69

NSS

NOT SOLD SEPARAT

WIRE connecting

1шт.

70

NSS

NOT SOLD SEPARAT

COVER plunger

1шт.

71

NSS

NOT SOLD SEPARAT

WASHER lock

3шт.

72

NSS

NOT SOLD SEPARAT

NUT hex

1шт.

73

NSS

NOT SOLD SEPARAT

NUT hex

2шт.

65

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.
