Запчасти Case IH 1666 (4-48) - ALTERNATOR ASSEMBLY, 110 AMPERE (06) - ELECTRICAL

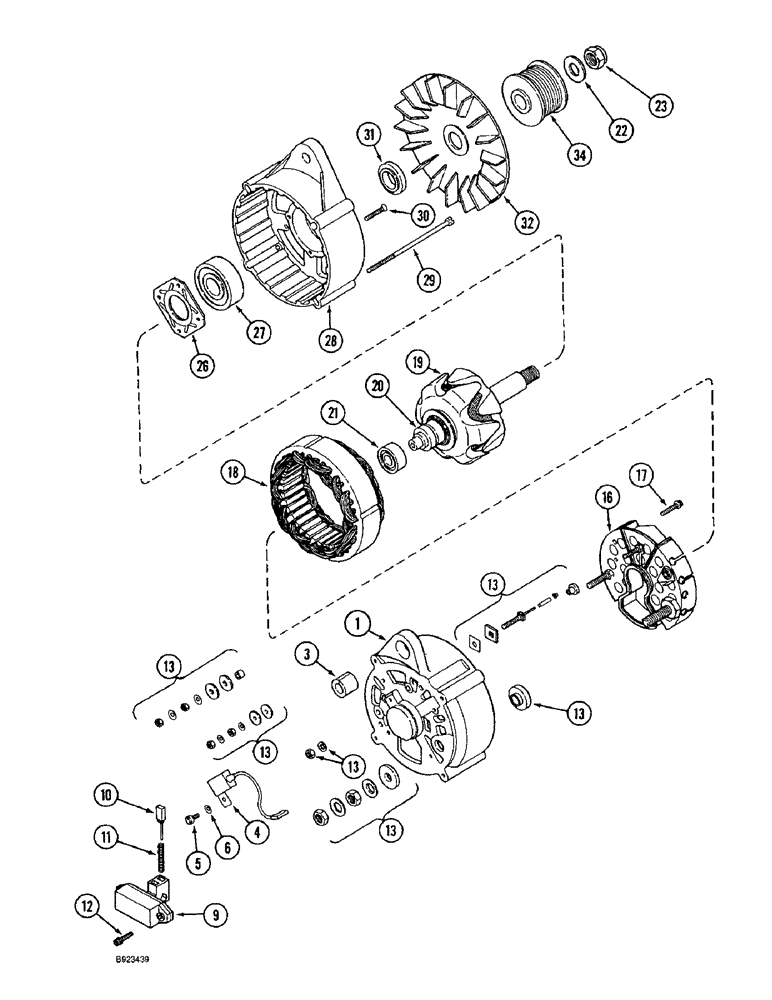

Схема запчастей Case IH 1666 - (4-48) - ALTERNATOR ASSEMBLY, 110 AMPERE (06) - ELECTRICAL
13
29
27
11
17
1
13
5
3
23
21
13
13
13
16
32
4
19
9
13
6
12
34
10
26
30
31
20
22
18
28

Артикул

Название

Примечание

Количество

91448C2

ALTERNATOR

ASSEMBLY engine, 110 ampere, Includes: Ref. 1 thru 32

1шт.

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

91448C2GV

ALTERNATOR

Value, 110 Amp

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured ALTERNATOR, 12 volt 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1GV

ALTERNATOR

Value, 12 Volt, 135 Amp

1шт.

1

1964731C1

HOUSING

collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

expansion

1шт.

4

3079389R1

CAPACITOR

suppression, alternator

1шт.

5

684857C1

SCREW

fillister head, capacitor retaining

1шт.

6

A186196

WASHER

special, retaining screw

1шт.

9

1964733C1

REGULATOR

ASSEMBLY voltage, Includes: Ref. 10 and 11

1шт.

10

3079394R91

BRUSH SET

alternator

1шт.

11

1964734C1

SPRING

compression

2шт.

12

A186194

SCREW,M4 x 18mm

hex flange, special, regulator retaining

2шт.

13

1964738C1

REPAIR KIT

Terminal hardware

1шт.

16

1964732C1

RECTIFIER

alternator

1шт.

17

A187504

SCREW

hex flange, special, rectifier bridge retaining

2шт.

18

1964735C1

STATOR

alternator

1шт.

19

1964728C1

ROTOR

alternator

1шт.

20

3079410R1

RING

collector

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

1шт.

22

495-51066

WASHER,9/16" x 1 1/4" x .1"

flat, 21/32 x 1-1/4 x 3/32 inch

1шт.

23

231-46110

LOCK NUT,5/8"-18, GB

1шт.

26

1964727C1

PLATE

bearing retaining

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

drive end

1шт.

28

1964725C1

HOUSING

drive end

1шт.

29

1964748C1

SCREW

BOLT fillister head, special, slotted, alternator retaining

4шт.

30

1964750C1

SCREW

machine, flat head, special, retaining

4шт.

31

1964729C1

SPACER

ring

1шт.

32

1964736C1

FAN

alternator

1шт.

34

A189616

PULLEY

alternator

1шт.

Выбрано товаров: 33
