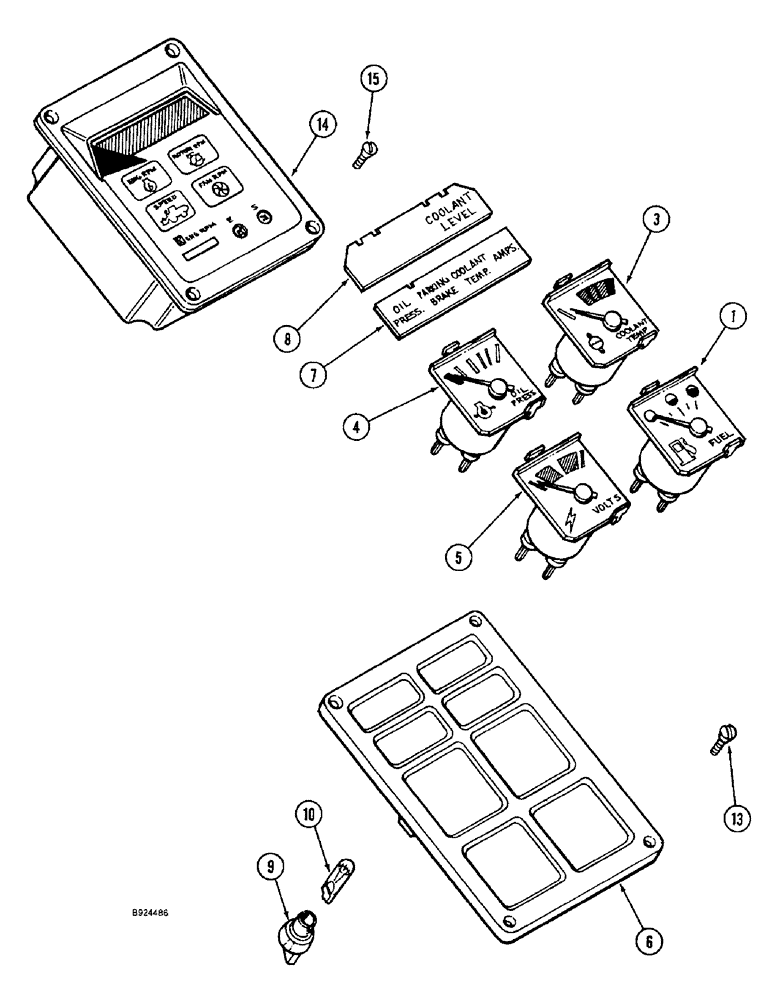

Запчасти Case IH 1666 (4-40) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

1983246C1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT ASSEMBLY gauges, Includes: Ref. 1 and 3 thru 10

1шт.

1

121604C1

ELECTRICAL GAUGE

fuel

1шт.

3

121605C2

ELECTRICAL GAUGE

coolant temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

oil pressure

1шт.

5

121607C1

METER

GAUGE system voltage, engine

1шт.

6

121608C1

GASKET

instrument cluster

1шт.

7

187597C1

LENS

warning lamp, coolant level

1шт.

8

1979357C1

LENS

warning lamp, coolant level

1шт.

9

121611C1

SOCKET

bulb, instrument cluster

8шт.

10

D71346

TAIL LAMP,12V

lamp, No. 168

8шт.

11

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

13

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

14

1987322C2

TACHOMETER

engine

1шт.

14

1935114C2

REMAN-ELECT GAUGE

Tachometer engine, remanufactured

1шт.

14

1935113C2

CORE GAUGE ELECT

Core-Electrical Gauge Return Number use this part number to return tachometer for credit when using a remanufactured assembly

1шт.

15

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.
