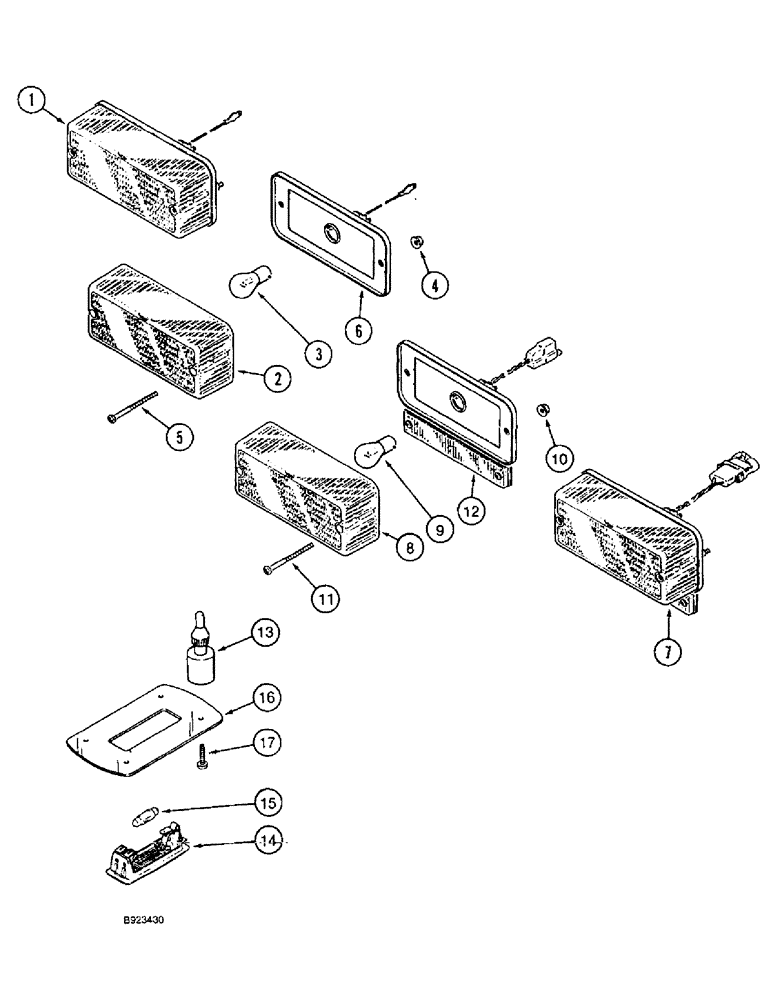

Запчасти Case IH 1666 (4-30) - WARNING LAMP FRONT AND REAR, STOP AND TAIL LAMP, DOME LAMP (06) - ELECTRICAL

1

130882C91

LAMP

ASSEMBLY warning, lamp, front and rear, Includes: Ref. 2 thru 6

4шт.

2

130883C1

LENS

amber, warning lamp front and rear

1шт.

3

A41264

BULB,#1156, 12V

Warning, front and rear

1шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

5

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

self-tapping, pan Phillips, No. 10 NC x 2-1/4 inch, warning lamp front and rear

2шт.

6

NSS

NOT SOLD SEPARAT

PLATE lamp, order 130882C91 assembly, Ref 1, warning lamp front and rear

1шт.

7

92260C1

LAMP,12V, 27W, Red

ASSEMBLY stop and tail, Includes: Ref. 8 thru 12

2шт.

8

216045C1

LENS

red, stop and tail lamp

1шт.

9

T34857

BULB,C6, #1157, 12.8V

Stop and tail

1шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

Stop and tail lamp

2шт.

11

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

self-tapping, pan Phillips, No. 10 NC x 2-1/4 inch, stop and tail lamp

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE lamp, order 92260C1 assembly, Ref 7, stop and tail

1шт.

117995C1

PACKAGE

KIT fastener, dome lamp, package of 5, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

FASTENER dome lamp

4шт.

14

1983391C1

LAMP,12V, 10W

ASSEMBLY dome, Includes: Ref. 15

1шт.

15

1094378R1

BULB,J, 12V, 2W

BULB, Dome Lamp

1шт.

16

1979628C1

LARGE PLATE

PLATE, LARGE Dome Lamp

1шт.

17

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

self tapping, pan Phillips, No. 8-18 x 1-1/2 inch, dome lamp

4шт.
