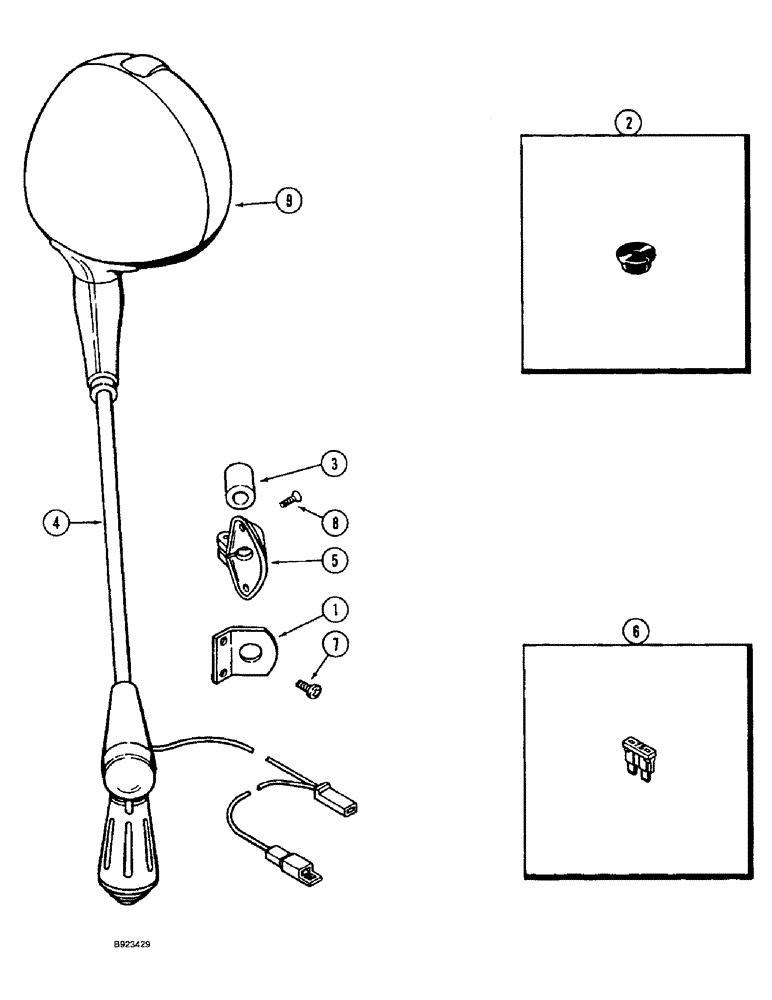

Запчасти Case IH 1666 (4-28) - CAB SPOTLAMP (06) - ELECTRICAL

1323590C91

LAMP BASE

KIT flood lamp, no longer available, order components separately, Includes: Ref. 1 thru 9

1шт.

1

1329859C1

BRACKET

flood lamp

2шт.

2

1330144C1

GROMMET

wire

1шт.

3

1330145C1

BUSHING

bracket

1шт.

4

91938C1

INTERIOR LIGHT

LAMP flood

1шт.

5

92015C1

BRACKET

flood lamp

1шт.

6

A149798

FUSE

tan, 5 ampere

1шт.

6

A149799

FUSE

brown, 7-1/2 ampere

1шт.

7

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.

8

265-1358

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

self tapping, oval Phillips, No. 10-16 x 1/2 inch

2шт.

9

28753R1

LIGHT

LAMP sealed beam, No. 7604

1шт.
