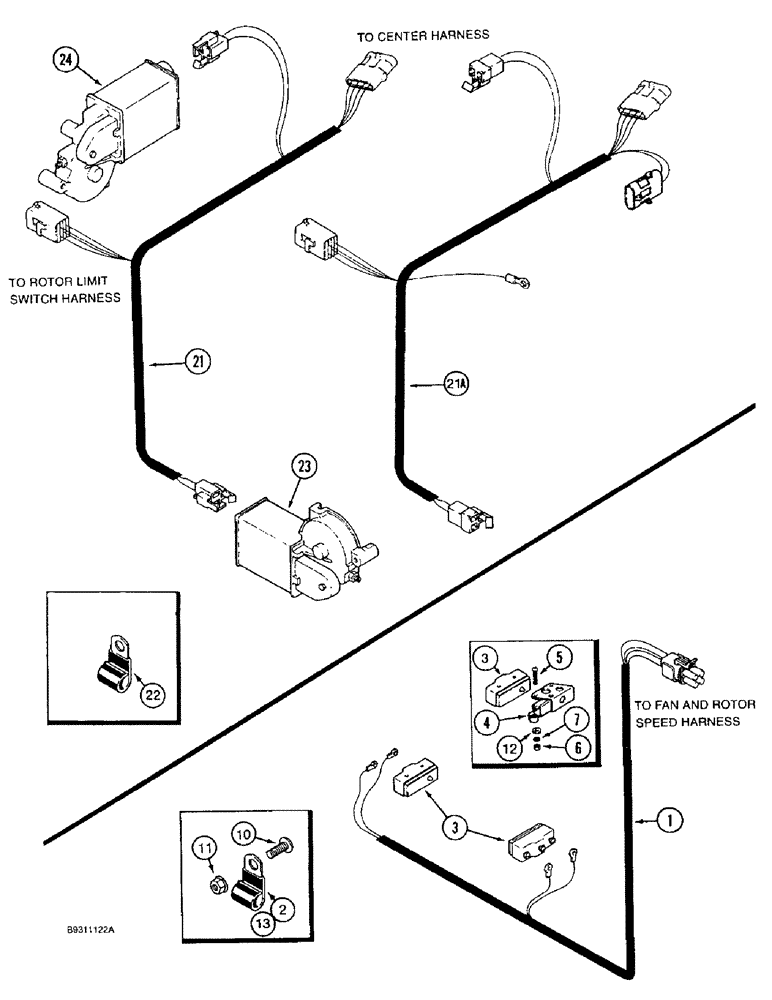

Запчасти Case IH 1666 (4-22) - ROTOR LIMIT SWITCH HARNESS, FAN AND ROTOR SPEED HARNESS, PRIOR TO P.I.N. JJC0106005 (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

rotor limit switch, Serial Range: -JJC0106005

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type, rotor limit switch harness, Serial Range: -JJC0106005

1шт.

3

186057C1

SWITCH

rotor limit switch harness, Serial Range: -JJC0106005

2шт.

4

186058C1

IGNITION SWITCH

ACTUATOR rotor limit switch harness, Serial Range: -JJC0106005

2шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

Rotor limit switch harness, Serial Range: -JJC0106005

4шт.

6

225-14106

NUT,#6-32

Rotor limit switch harness, Serial Range: -JJC0106005

4шт.

7

138526

LOCK WASHER

internal tooth lock, special, No. 6, rotor limit switch harness, Serial Range: -JJC0106005

4шт.

10

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

Rotor limit switch harness, Serial Range: -JJC0106005

1шт.

11

231-5146

FLANGE NUT,3/8"-16

Rotor limit switch harness, Serial Range: -JJC0106005

1шт.

12

495-31016

WASHER,#6

Rotor limit switch harness, Serial Range: -JJC0106005

2шт.

13

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining, rotor limit switch harness, Serial Range: -JJC0106005

1шт.

21

1983397C1

HARNESS

fan and rotor speed, Serial Range: -JJC0105560

1шт.

21a

113982A1

HARNESS

fan and rotor speed, no longer available, order 175949A1 and 245240C1, shown on Figure 4-23B, Refs 1A and 1B, Serial Range: JJC0105560-JJC0106004

1шт.

22

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining fan and rotor speed, Serial Range: -JJC0105560

1шт.

23

REF

INSTRUCTION

MOTOR electric, variable speed, see Fig. 9C-14 for mounting, fan and rotor speed, Serial Range: -JJC0105560

1шт.

24

REF

INSTRUCTION

MOTOR electric, rotor speed, see Fig. 9B-8 for mounting, fan and rotor speed, Serial Range: -JJC0105560

1шт.
