(4-20) - REAR LAMPS AND FUEL SENDER HARNESS

Запчасти Case IH 1666 (4-20) - REAR LAMPS AND FUEL SENDER HARNESS (06) - ELECTRICAL

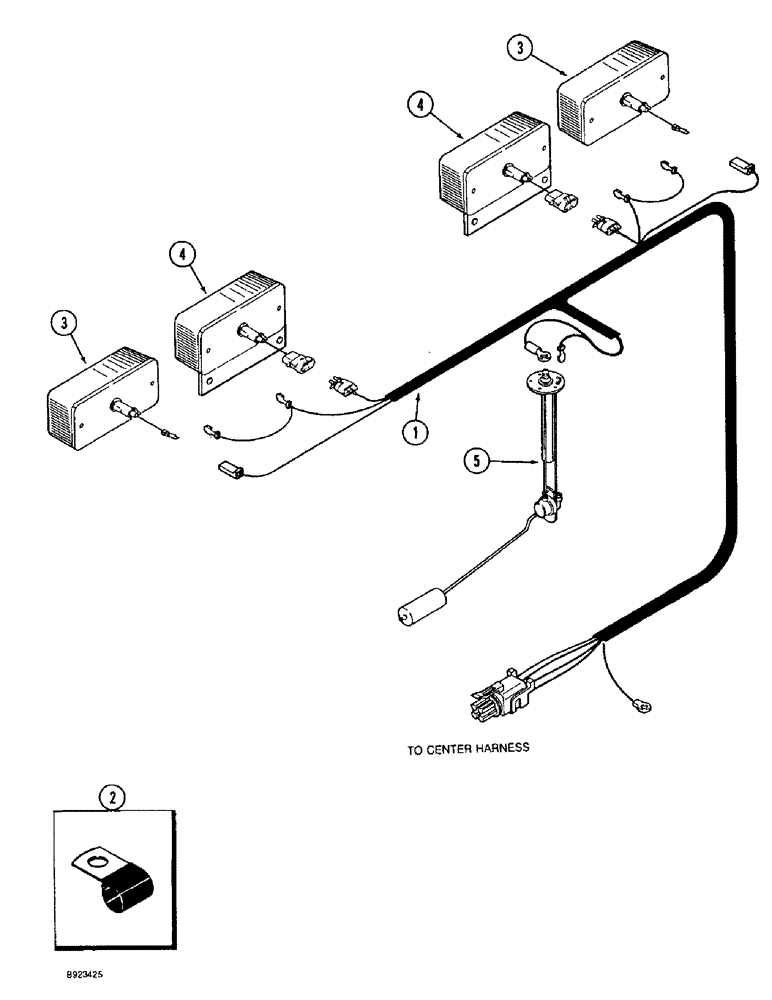

Схема запчастей Case IH 1666 - (4-20) - REAR LAMPS AND FUEL SENDER HARNESS (06) - ELECTRICAL
3
2
1
3
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1994847C1

HARNESS

rear lamps and fuel sender

1шт.

2

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining, harness

9шт.

3

130882C91

LAMP

ASSEMBLY warning, rear, parts list Fig. 4-30

2шт.

4

92260C1

LAMP,12V, 27W, Red

ASSEMBLY tail, parts list Fig. 4-30

2шт.

5

198024C1

FUEL GAUGE

SENSOR fuel level sending unit, parts list Fig. 3-14

1шт.
