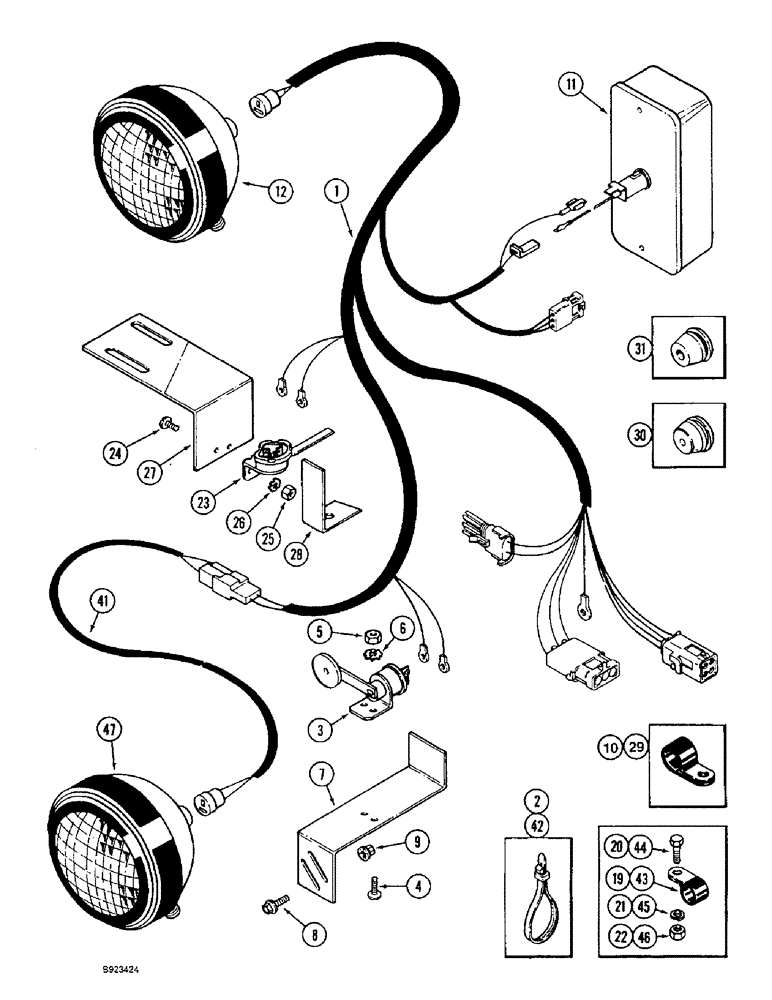

Запчасти Case IH 1666 (4-18) - GRAIN TANK HARNESS, UNLOADER LAMP HARNESS (06) - ELECTRICAL

1

245243C3

HARNESS

grain tank

1шт.

2

702093C1

CABLE TIE

CABLE STRAP grain tank harness

1шт.

3

91436C4

SWITCH

unloader in, grain tank harness

1шт.

4

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

Grain tank harness

2шт.

5

225-14110

NUT,#10-24

Grain tank harness

2шт.

6

493-81001

LOCK WASHER,Ext-Int Tooth, #10

internal-external tooth lock, 3/16 inch, grain tank harness

2шт.

7

1338022C1

SUPPORT

BRACKET unloader in switch, grain tank harness

1шт.

8

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

BOLT hex flange, 1/4 NC x 3/4 inch, grain tank harness

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Grain tank harness

2шт.

10

370383R1

CLIP

CLAMP harness, grain tank harness

6шт.

11

REF

INSTRUCTION

LAMP ASSEMBLY warning, right hand front, parts list Fig. 4-30, grain tank harness

1шт.

12

REF

INSTRUCTION

LAMP ASSEMBLY grain tank, parts list Fig. 4-26, grain tank harness

1шт.

19

362123R1

CLIP

harness, grain tank

7шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Grain tank harness

14шт.

21

492-11031

LOCK WASHER,5/16"

Grain tank harness

14шт.

22

425-105

NUT,5/16"-18, G5

Grain tank harness

14шт.

23

537641R2

SWITCH ASSY

limit, unloader out, grain tank harness

1шт.

24

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

Grain tank harness

2шт.

25

225-13210

NUT,#10-32

Grain tank harness

2шт.

27

1338003C1

BRACKET

SUPPORT unloader out switch, grain tank harness

1шт.

28

1338004C1

BRACKET

unloader out switch, grain tank harness

1шт.

29

384557R1

CLIP

CLAMP P-type, harness, grain tank

1шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

rubber, 3/8 inch ID, grain bin, grain tank harness

1шт.

31

195803C1

GROMMET

3/8 inch, grain tank harness, upper

2шт.

41

91828C1

HARNESS

unloader lamp

1шт.

42

702093C1

CABLE TIE

CABLE STRAP unloader lamp harness

1шт.

43

299277C91

CLIP

CLAMP harness, unloader lamp harness

2шт.

44

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Unloader lamp harness

2шт.

45

492-11031

LOCK WASHER,5/16"

Unloader lamp harness

2шт.

46

425-105

NUT,5/16"-18, G5

Unloader lamp harness

2шт.

47

REF

INSTRUCTION

LAMP ASSEMBLY unloader, parts list Fig. 4-26, unloader lamp harness

1шт.

26

493-81000

LOCK WASHER,Ext-Int Tooth, #10

(3/16"), Grain tank harness

2шт.
