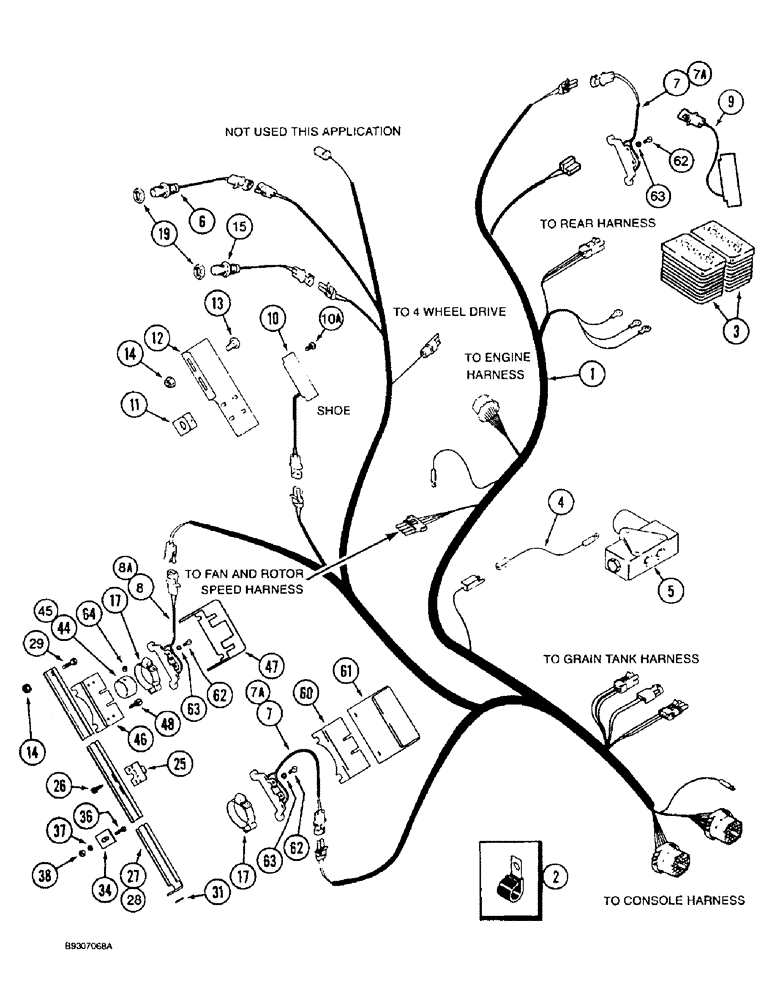

Запчасти Case IH 1666 (4-14) - CENTER HARNESS (06) - ELECTRICAL

1

1994834C2

HARNESS

center, combine

1шт.

2

299269C91

CLAMP

retaining, center harness

2шт.

2

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type, Insulated retaining

6шт.

2

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining, harness

6шт.

2

362666R1

CLIP

CLAMP retaining, harness

6шт.

3

REF

INSTRUCTION

BATTERY 12 volt

1шт.

4

187736C1

CABLE

separator clutch valve, if used

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY separator clutch, parts list Fig. 8-68

1шт.

6

245193C2

SENSOR

transducer, straw spreader

1шт.

7

245365C1

TRANSMITTER

SENSOR monitor control, rotary air screen and beater, Serial Range: -JJC0105064

2шт.

7a

1345485C1

TRANSMITTER

SENSOR rotary air screen and beater, Start Serial: JJC0105064

2шт.

8

245365C1

TRANSMITTER

SENSOR monitor control, tailings auger, Serial Range: -JJC0105064

1шт.

8a

1345480C1

TRANSMITTER

SENSOR monitor control, tailings auger, Start Serial: JJC0105064

1шт.

9

245410C1

TRANSMITTER

SENSOR monitor control, straw chopper

1шт.

10

245364C1

SWITCH

monitor control, shoe speed

1шт.

10a

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

2шт.

11

187996C1

MAGNET

shoe sensor, transmitter

1шт.

12

187998C2

ANGLE

SUPPORT shoe sensor, transmitter

1шт.

13

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

15

1252494C2

TRANSMITTER

SENSOR engine RPM, if used

1шт.

17

178800C1

CLAMP

sensor, tailings auger and beater, if used

2шт.

19

425-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NF

2шт.

25

196987C1

MAGNET

sensor, rotary air screen, if used

1шт.

26

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

self-tapping, pan slotted, No. 8-18 x 1/2 inch

2шт.

27

1329865C1

CHANNEL

sensor mounting, rotary air screen, Serial Range: -JJC0105064

1шт.

28

116892A1

CHANNEL

sensor mounting, rotary air screen, Start Serial: JJC0105064

1шт.

29

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

31

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16"), If used

1шт.

34

1301560C1

SUPPORT

BRACKET mounting, rotary air screen adjustment, if used

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used

1шт.

37

492-11031

LOCK WASHER,5/16"

If used

1шт.

38

425-105

NUT,5/16"-18, G5

If Used

1шт.

44

178801C1

COLLAR

locking, bearing, tailing elevator, Serial Range: -JJC0105064

1шт.

45

455102R21

COLLAR

locking, bearing, includes set screw, tailing elevator shaft, Start Serial: JJC0105064

1шт.

46

187615C3

SUPPORT

BRACKET tailings sensor, if used

1шт.

47

181208C3

SUPPORT

COVER sensor, tailings, if used

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

self tapping, hex washer head, 1/4-14 x 1/2 inch

3шт.

60

187629C1

SUPPORT

BRACKET sensor, beater shaft, if used

1шт.

61

187630C1

SUPPORT

COVER sensor, beater shaft, if used

1шт.

62

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

machine, pan head slotted, No. 8 NC x 3/8 inch

4шт.

63

492-11008

LOCK WASHER,#8

4шт.

64

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

self tapping, hex washer head, 1/4-14 x 1/2 inch, if used

1шт.
