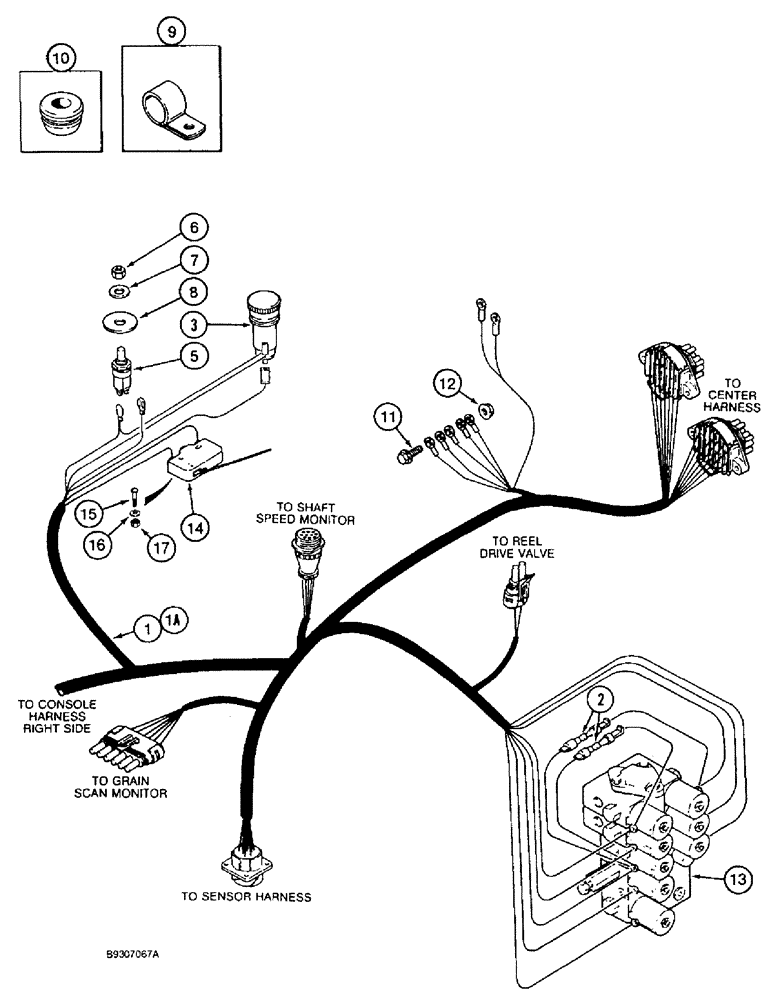

Запчасти Case IH 1666 (4-10) - CONSOLE HARNESS, LEFT HAND CONSOLE (06) - ELECTRICAL

1

1994820C1

HARNESS

console, Serial Range: -JJC0105560

1шт.

1a

114976A2

HARNESS

console, Start Serial: JJC0105560

1шт.

2

113699A1

RECTIFIER

locking, 2-5/8 inch long, console harness

2шт.

3

245576C1

LIGHTER, CIGARETTE

cigar, 12 volt, Includes: Ref. 4

1шт.

4

378781R1

LIGHTER, CIGARETTE

ELEMENT pop up, not shown

1шт.

5

1983341C1

SWITCH

parking brake warning lamp

1шт.

6

68107H

LOCK NUT

hex, special, lamp switch

1шт.

7

166817C2

WASHER

flat, 9.0 x 51.0 x 1.6 mm, lamp switch

1шт.

8

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

flat, 17/32 x 1 x 1/16 inch

1шт.

8

495-51041

WASHER,3/8"

flat, 13/32 x 47/64 x 1/16 inch

1шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type, console harness, front

1шт.

10

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

rubber, 3/8 inch ID, console harness

1шт.

11

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

BOLT hex flange, 1/4 NC x 3/4 inch

2шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY control, parts list Figs. 8-36 - 8-39A

1шт.

14

1310827C2

SWITCH

lockout, third gear

1шт.

15

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

2шт.

16

495-31016

WASHER,#6

2шт.

17

231-14106

NUT,#6-32, GB

hex, self-locking, No. 6 NC

2шт.
