Запчасти Case IH 1666 (4-02) - ENGINE HARNESS (06) - ELECTRICAL

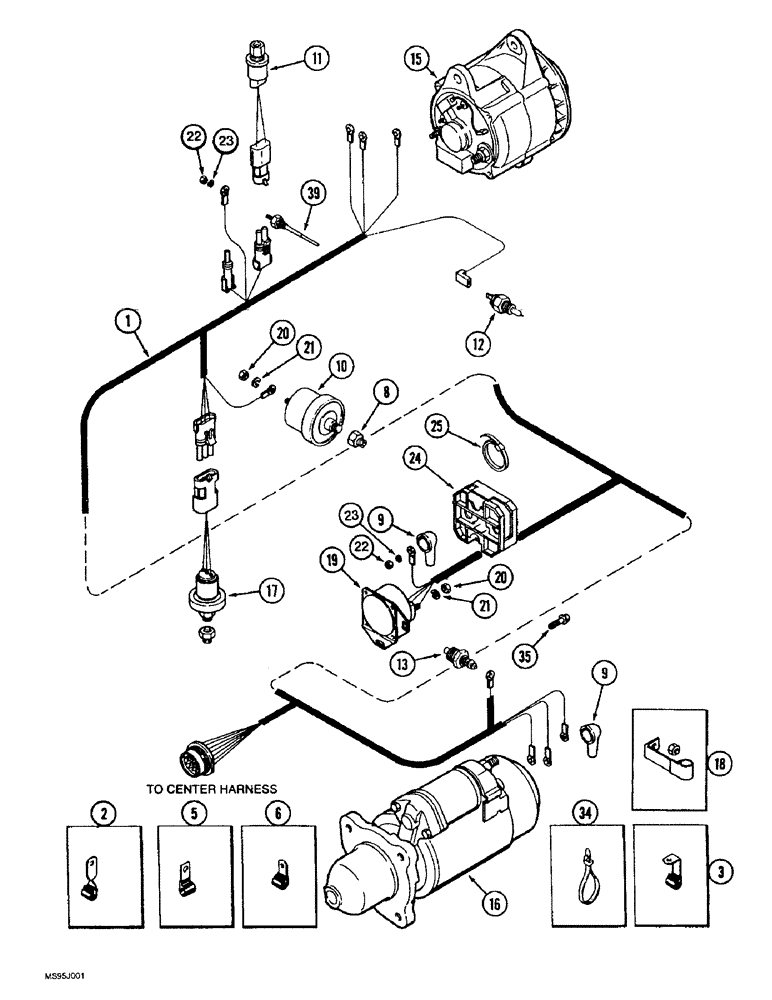

Схема запчастей Case IH 1666 - (4-02) - ENGINE HARNESS (06) - ELECTRICAL
10
20
35
24
21
8
5
9
9
1
3
19
34
22
16
18
25
6
17
23
11
2
21
12
15
23
20
22
39
13

Артикул

Название

Примечание

Количество

1

100827A1

HARNESS

engine

1шт.

2

363660R1

CLIP

CLAMP engine block, rear

1шт.

3

515-30222

CLAMP,7/8", 1/2" Bolt

P-type, Engine harness

2шт.

5

362123R1

CLIP

harness

3шт.

6

370383R1

CLIP

CLAMP harness, long

1шт.

8

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

Pipe, 3/4 male x 1/2 inch female

1шт.

9

399470R1

BOOT

cable

2шт.

10

1341330C2

TRANSMITTER

SENDER oil pressure

1шт.

11

92038C1

SWITCH, A/C HIGH PRE

SWITCH high pressure, air conditioning

1шт.

12

1345488C2

PRESSURE SWITCH

coolant, high temperature

1шт.

13

121756C2

SENSOR

coolant temperature

1шт.

15

91448C2

ALTERNATOR

ASSEMBLY engine, 110 ampere, parts list Fig. 4-48

1шт.

15

91448C2GV

ALTERNATOR

Value, 110 Amp

1шт.

16

A187728

STARTING MOTOR

ASSEMBLY engine, parts list Fig. 4-50

1шт.

16

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

16

AC187728

CORE-STARTER

Return Part Number

1шт.

16

A187728GV

STARTER MOTOR

Value

1шт.

17

1964960C1

PRESSURE SWITCH

pressure header lift

1шт.

18

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining, engine harness, front cover

1шт.

178149A1

SOLENOID SWITCH

KIT with barrier and cover, Includes: Ref. 19 thru 25

1шт.

19

183038A1

SOLENOID

SWITCH with barrier

1шт.

20

425-105

NUT,5/16"-18, G5

2шт.

21

492-11031

LOCK WASHER,5/16"

2шт.

22

225-14210

NUT,#10-32

3шт.

23

492-11010

LOCK WASHER,#10

3шт.

24

178148A1

COVER

solenoid switch

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon retaining

4шт.

34

702093C1

CABLE TIE

CABLE STRAP nylon retaining

4шт.

35

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

39

A145513

SENSOR

level, coolant

1шт.

Выбрано товаров: 30
