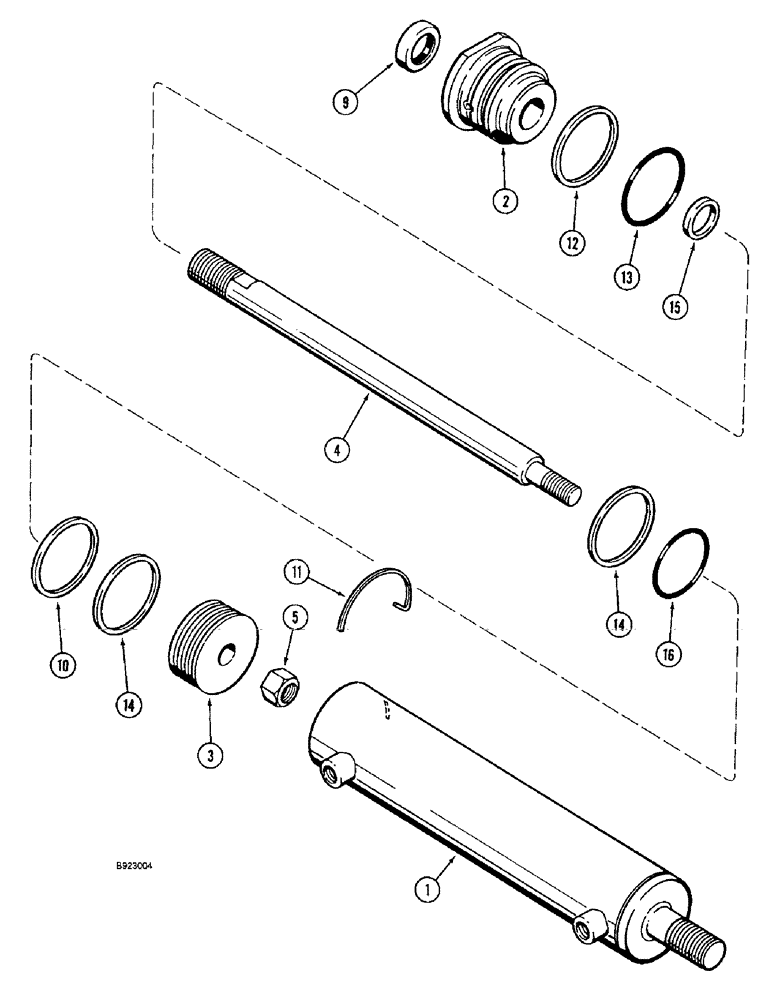

Запчасти Case IH 1666 (5-46) - STEERING CYLINDER, POWER GUIDE AXLE (04) - STEERING

127913C93

STEERING CYLINDER

ASSEMBLY, 2-1/4 (57) ID x 9 inch (229 mm) stroke steering, Includes: Ref. 1 thru 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY cylinder

1шт.

2

127919C1

GLAND

cylinder, front

1шт.

3

127921C1

PISTON

cylinder

1шт.

4

127920C2

PISTON ROD

1шт.

5

9411658

LOCK NUT,5/8"-11, GC

hex, self locking, 5/8 inch NF, grade 8

1шт.

73661C92

SEAL KIT

seal, cylinder service, Includes: Ref. 9 thru 16

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL wiper, piston rod

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL urethane, piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER back up, O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING head, 2-1/8 x 2-1/2 inch

1шт.

14

NSS

NOT SOLD SEPARAT

RING piston

2шт.

15

NSS

NOT SOLD SEPARAT

RING piston, teflon

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING piston, 2-1/16 x 2-1/4 inch

1шт.
