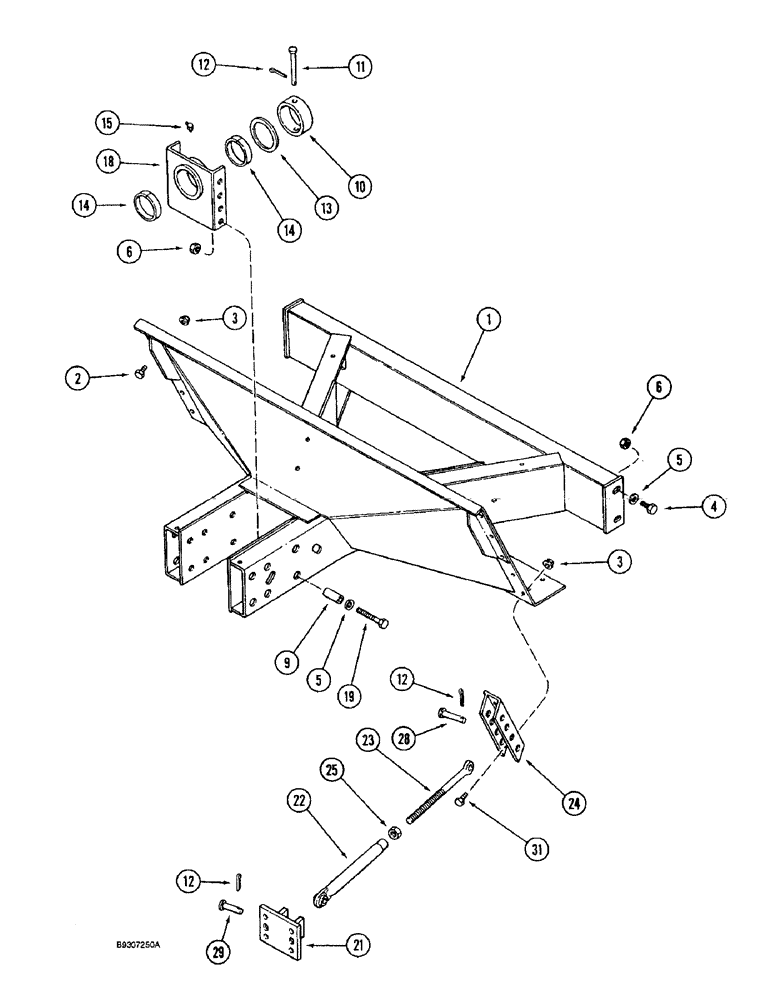

Запчасти Case IH 1666 (5-42) - STEERING AXLE SUPPORT, POWER GUIDE AXLE (04) - STEERING

1

1322258C2

SUPPORT

steering axle

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

3

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

10шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

BOLT hex, 3/4 NC x 1-1/2 inch, grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

8шт.

9

177748C1

SPACER

13/16 x 1-1/4 x 2-13/16 inch, support

12шт.

10

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

axle pivot

1шт.

11

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

headed, 3/4 x 5-1/2 inch, grade 2

1шт.

12

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

13

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

flat, special, pivot, axle

1шт.

14

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING axle pivot

2шт.

15

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper

2шт.

18

182792C93

SUPPORT ASSY.

pivot, front

1шт.

19

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

21

1970206C1

BRACKET

stabilizer, rear

2шт.

22

181444C1

TIE-ROD,1" - 8

BODY adjusting, rear

2шт.

23

181442C3

EYEBOLT,1" - 8 x 381mm

BOLT, EYE ROD adjusting, front

2шт.

24

1541603C1

SUPPORT

BRACKET adjusting rod, front

2шт.

25

425-1016

NUT,1"-8, G5

Hex

2шт.

28

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

headed, 7/8 x 3-1/2 inch, grade 2

2шт.

29

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

2шт.

31

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.
