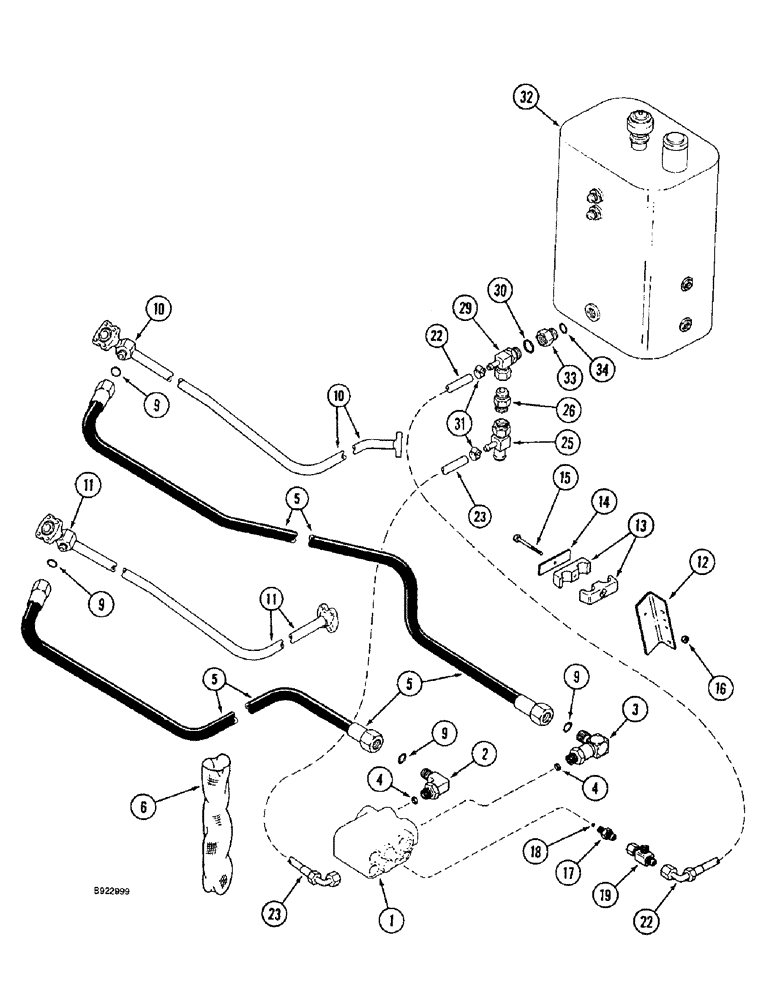

Запчасти Case IH 1666 (5-36) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE (04) - STEERING

1

1978000C1

VALVE

ASSEMBLY selector, parts list Fig. 5-48

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adj O-ring boss

1шт.

3

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Adj O-ring boss

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

5

1989218C1

HOSE

77-3/8 inch (1965 mm) long, valve pressure

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE nylon, 2-3/8 (60) ID x 48 inch (1219 mm) long

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

10

1541756C2

HYD TUBE

TUBE forward pressure

1шт.

11

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE reverse pressure

1шт.

12

1324467C2

ANGLE

BRACKET hose

1шт.

13

1324473C1

CLAMP

hose

1шт.

14

1324469C1

PLATE

clamp, hose

1шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

1шт.

16

232-4115

LOCK NUT,5/16"-18, GC

1шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, 3/4-16 flare x 9/16-18 inch O-ring boss

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

22

1957283C3

HOSE

134-1/4 inch (3410 mm) long, housing drain

1шт.

23

1979706C1

HOSE

144-3/32 inch (3660 mm) long, case drain

1шт.

25

1979655C1

TEE

wheel motor flush

1шт.

26

1343558C1

VALVE

bypass, power guide axle

1шт.

29

1979760C1

TEE

return

1шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

31

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable

2шт.

32

REF

INSTRUCTION

RESERVOIR hydraulic, parts list Fig. 8-2

1шт.

33

1979767C1

ADAPTER

special, 1-1/16 O-ring boss x 1-5/16 inch female PT

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
