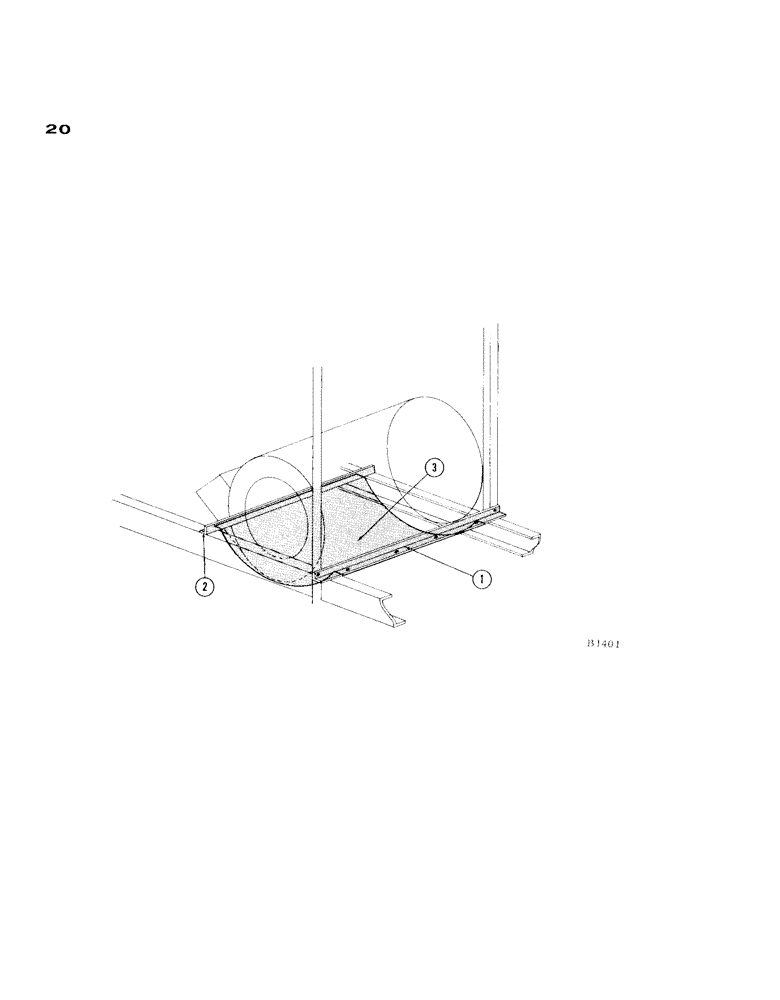

Запчасти Case IH 1665 (20) - FAN WRAPPER SHIELD, RICE SPECIAL (74) - CLEANING

1

F13683

SCREW

ANGLE - front, fan shield

1шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

2

F13682

ANGLE - rear, fan shield

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

3

F13978

SHIELD - fan wrapper

1шт.

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

10шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

129-122

NUT,5/16"-24, G5

10шт.

F88690

SHEAVE - drives auger and fan (In place of F88248), high speed fan sheave, corn

1шт.

F12054

BUSHING (See Page 135, #C981 Catalog), high speed fan sheave, corn

1шт.

F88803

FLOOR - conveyor, front (In place of F87449), conveyor rake, rice special

1шт.

F88805

FLOOR - conveyor, rear (In place of F87472), conveyor rake, rice special

1шт.

F88806

FLOOR - access section (In place of F87487) (See Page 107, #C981 Catalog), conveyor rake, rice special

1шт.

B17135

SET of DECALS - (See page 105, #C981 catalog for complete set), Serial Range: -8373501

1шт.

321-462

DECAL

- "Rice Special", Serial Range: -8373501

1шт.

321-1267

DECAL - "1665", Serial Range: -8373501

1шт.

321-1268

DECAL - "Power Shaft", Serial Range: -8373501

1шт.

F98013

SET of DECALS - (See page 105, #C981 catalog for complete set), Start Serial: 8373501

1шт.

321-1465

DECAL - "Rice Special", Start Serial: 8373501

1шт.

321-1463

DECAL - "1665", Start Serial: 8373501

1шт.

321-1268

DECAL - "Power Shaft", Start Serial: 8373501

1шт.
