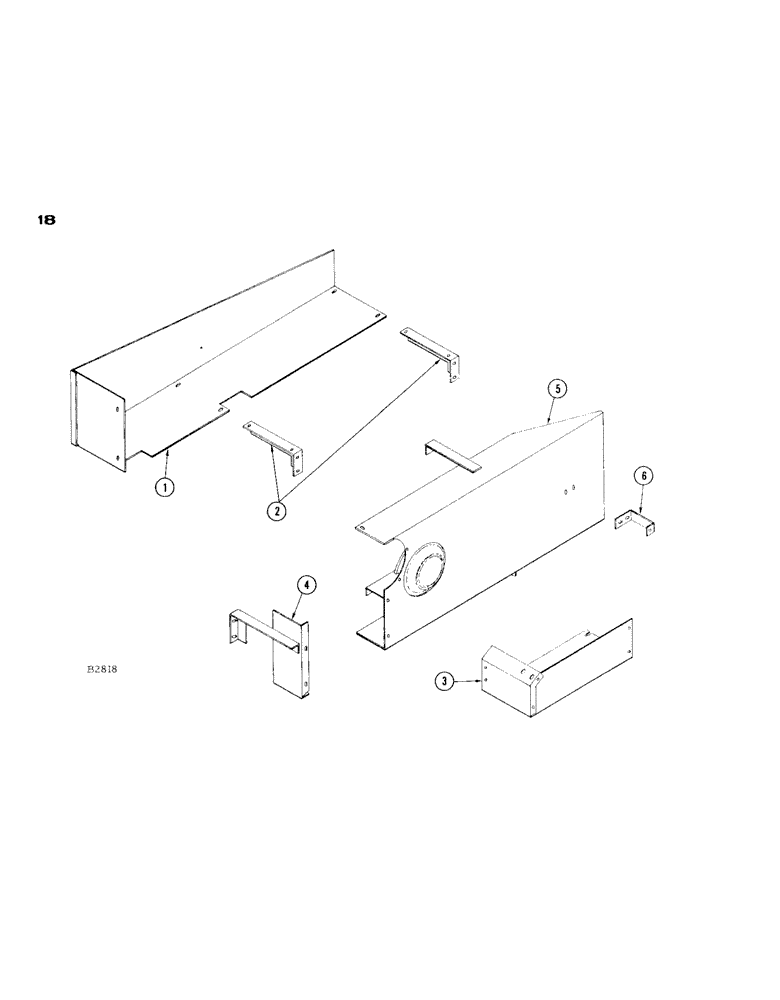

Запчасти Case IH 1665 (18) - FAN TRASH AND MUD SHIELD (74) - CLEANING

1

F13167

SCREW

SHIELD - fan trash, R.H. (Corn)

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

4шт.

129-122

NUT,5/16"-24, G5

4шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

129-123

NUT,3/8"-24, G5

2шт.

2

F9510

ANGLE - support (Corn)

2шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" x 1" N.F. hex.

4шт.

129-122

NUT,5/16"-24, G5

4шт.

3

F13166

SHIELD - fan trash, L.H. (Corn)

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex.

2шт.

129-121

NUT,1/4"-28, G5

2шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex.

2шт.

129-123

NUT,3/8"-24, G5

2шт.

4

F88809

GUSSET - mud shield

1шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex.

3шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

129-123

NUT,3/8"-24, G5

5шт.

5

F88691

SHIELD - mud, V.S. traction drive

1шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex.

2шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

4шт.

129-123

NUT,3/8"-24, G5

6шт.

6

F12849

BRACKET - safety shield

1шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex.

2шт.

129-121

NUT,1/4"-28, G5

2шт.

F19960

LATCH

- for F12849

1шт.

117EB

SPRING

1шт.

25-104

NUT,1/4"-20, G5

2шт.

F87452

TUBE-beater, less shaft (corn)

1шт.

F88832

TUBE-beater, less shaft (Rice)

1шт.

F87451

SHAFT-beater (See Page 89, #C981 Catalog)

1шт.

F98035

MUD SHIELD ATT. - (Machinery)

1шт.

F30511

SHIELD - mud, att.

1шт.

F30512

BRACE - mud shield, att.

1шт.
